ST STM32N6570-DK - Camera Module Connector (CN14); Table 19. Camera Module Connector (CN14) Pinout; Figure 20. Camera Module Connector (CN14) Top View

8.10 Camera module connector (CN14)
A CSI camera module (with ToF and IMU) is supported thanks to the 22‑pin dedicated ZIF connector (CN14). The
camera module adaptor board MB1854 can be connected to the STM32N6570-DK Discovery board through
flexible cable.

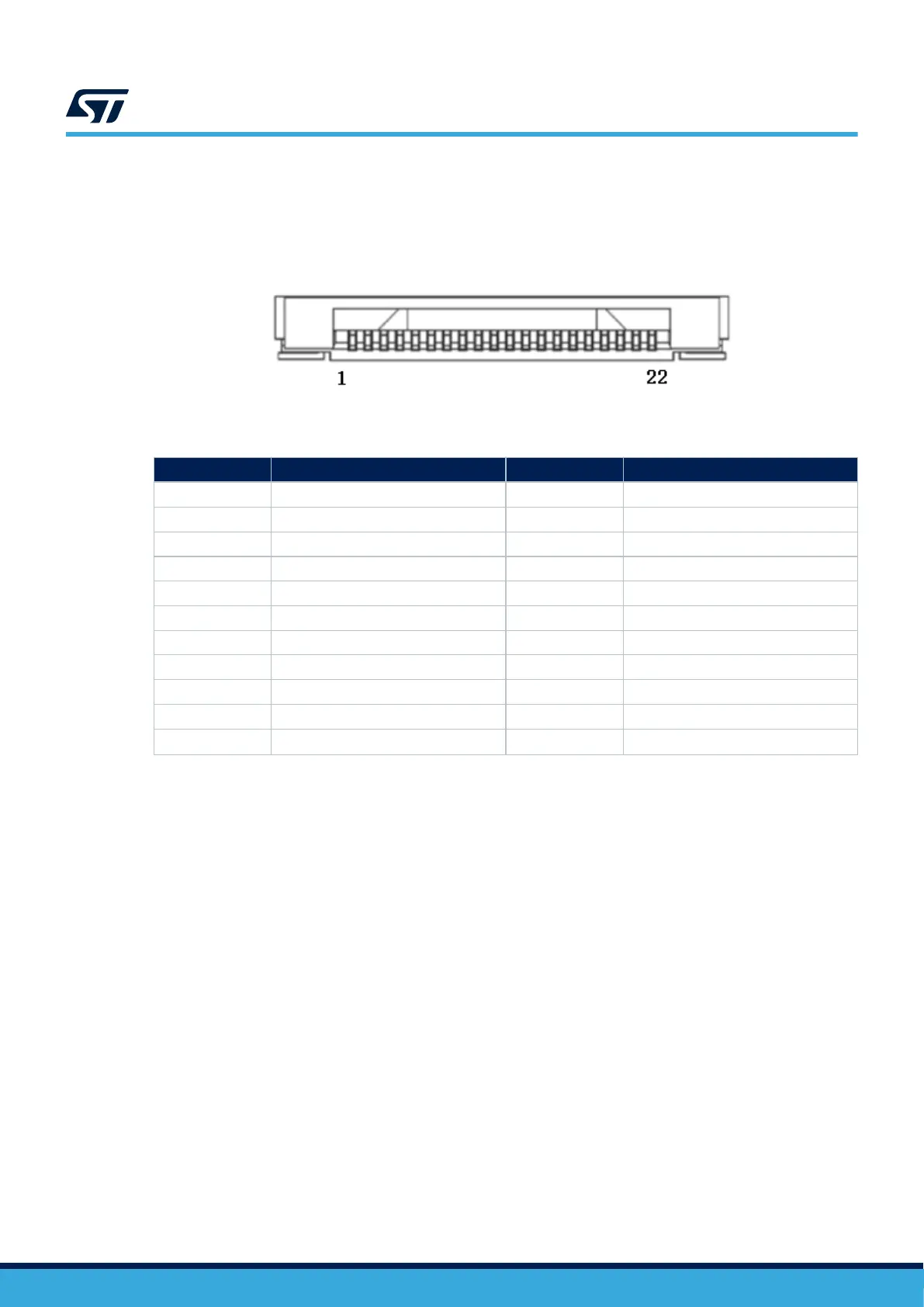

Figure 20. Camera module connector (CN14) top view
Table 19. Camera module connector (CN14) pinout
Pin number Description Pin number Description
1 GND 12 TOF_INT(PQ0)
2 CSI_D0_N 13 GND
3 CSI_D0_P 14 IMU_INT1(PQ1)
4 GND 15 IMU_INT2(PQ2)
5 CSI_D1_N 16 GND
6 CSI_D1_P 17 NRST_CAM(PC8)
7 GND 18 EN_MODULE(PD2)
8 CSI_CLK_N 19 GND
9 CSI_CLK_P 20 I2C1_SCL(PH9)
10 GND 21 I2C1_SDA(PC1)
11 TOF_LPn(PQ5) 22
VDD_CAM
(1)
1. There is an LDO (3.3 V) reserved for VDD_CAM. Through SB53. By default, SB53 is OFF.
