8.13 User USB2 Type-A connector (CN17)
CN17 is a USB Type-A connector (host). For more details, refer to Section 7.10.

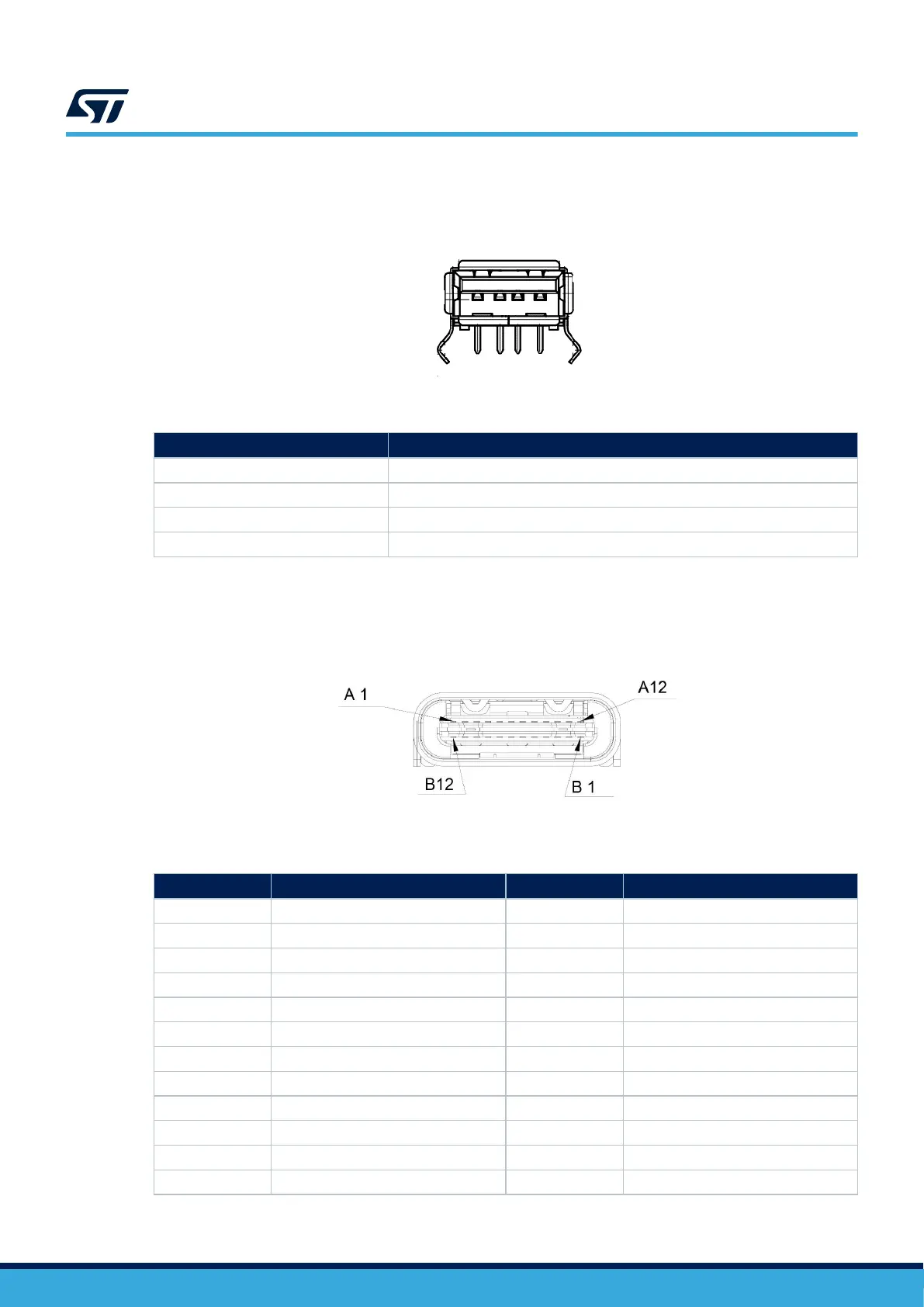

Figure 23. User USB2 Type-A connector (CN17) front view
Table 22. User USB2 Type-A connector (CN17) pinout
Pin number Description
1 VBUS2
2 2_HSDM
3 2_HSDP
4 GND
8.14
User USB1 USB Type-C
®
connector (CN18)
CN18 is a USB Type-C
®
connector (DRP). For more details, refer to Section 7.9.
Figure 24. User USB1 USB Type-C
®
connector (CN18) front view
Table 23. User USB1 USB Type-C
®
connector (CN18) pinout
Pin number
Description Pin number Description
A1 GND B1 GND
A2 NC B2 NC
A3 NC B3 NC
A4 VBUS1 B4 VBUS1
A5 CC1 B5 CC2
A6 D+ B6 D+
A7 D- B7 D-
A8 NC B8 NC
A9 VBUS1 B9 VBUS1
A10 NC B10 NC
A11 NC B11 NC
A12 GND B12 GND
