VIN (5V_VIN) is the 7 to 12 V DC power from the CN8 ARDUINO
®
‑included Zio connector pin 15 named VIN on
the connector silkscreen, or from the CN11 ST morpho connector pin 24. In this case, the JP6 jumper must be on
pin [3-4] to select the 5V_VIN power source. In that case, the DC power comes from the power supply through the
ARDUINO
®
Uno V3 battery shield (compatible with Adafruit PowerBoost 500 shield).
5V_VIN configuration: The JP6 jumper must be set on [3-4] as shown in Figure 11.

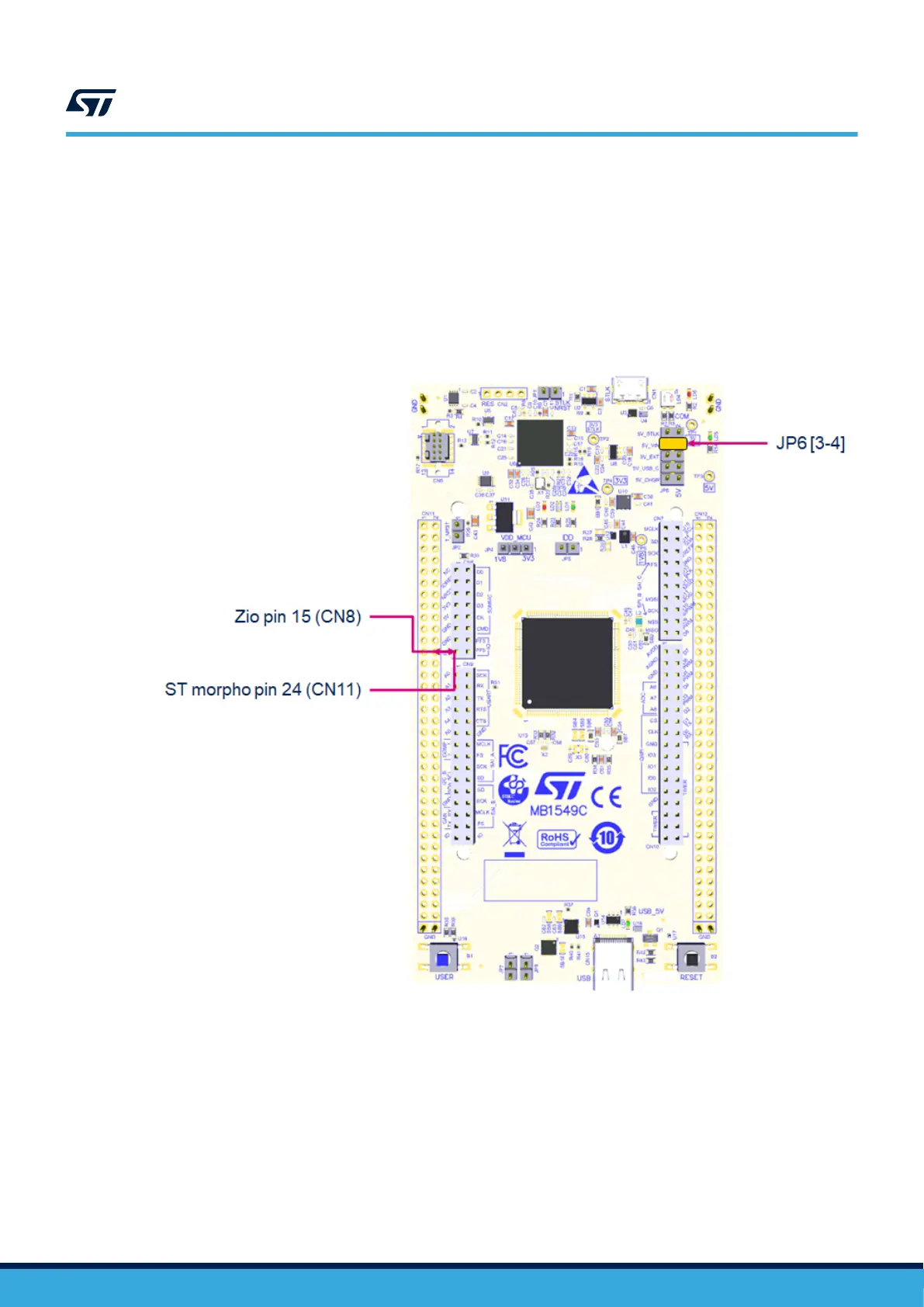

Figure 11. JP6 [3-4]: 5V_VIN power source
UM2861
Power supply and power selection
UM2861 - Rev 2
page 19/49
