7 Extension connectors

Six extension connectors are implemented on the STM32U5 Nucleo-144 board:

• CN7, CN8, CN9, and CN10 as Zio connectors supporting ARDUINO

Uno V3

• CN11 and CN12 as ST morpho connectors

7.1

Zio connectors supporting ARDUINO

Uno V3

The CN7, CN8, CN9, and CN10 Zio connectors are female connectors supporting the ARDUINO

Uno V3

standard. Most shields designed for ARDUINO

can fit the Nucleo board.

Caution: Most of the STM32 microcontroller I/Os are 5 V‑tolerant, but few of them are only 3V3‑compatible, while

ARDUINO

Uno V3 is 5 V‑compatible. Refer to the STM32U5 Series data brief and STM32U5xx product

datasheets for their I/O structure.

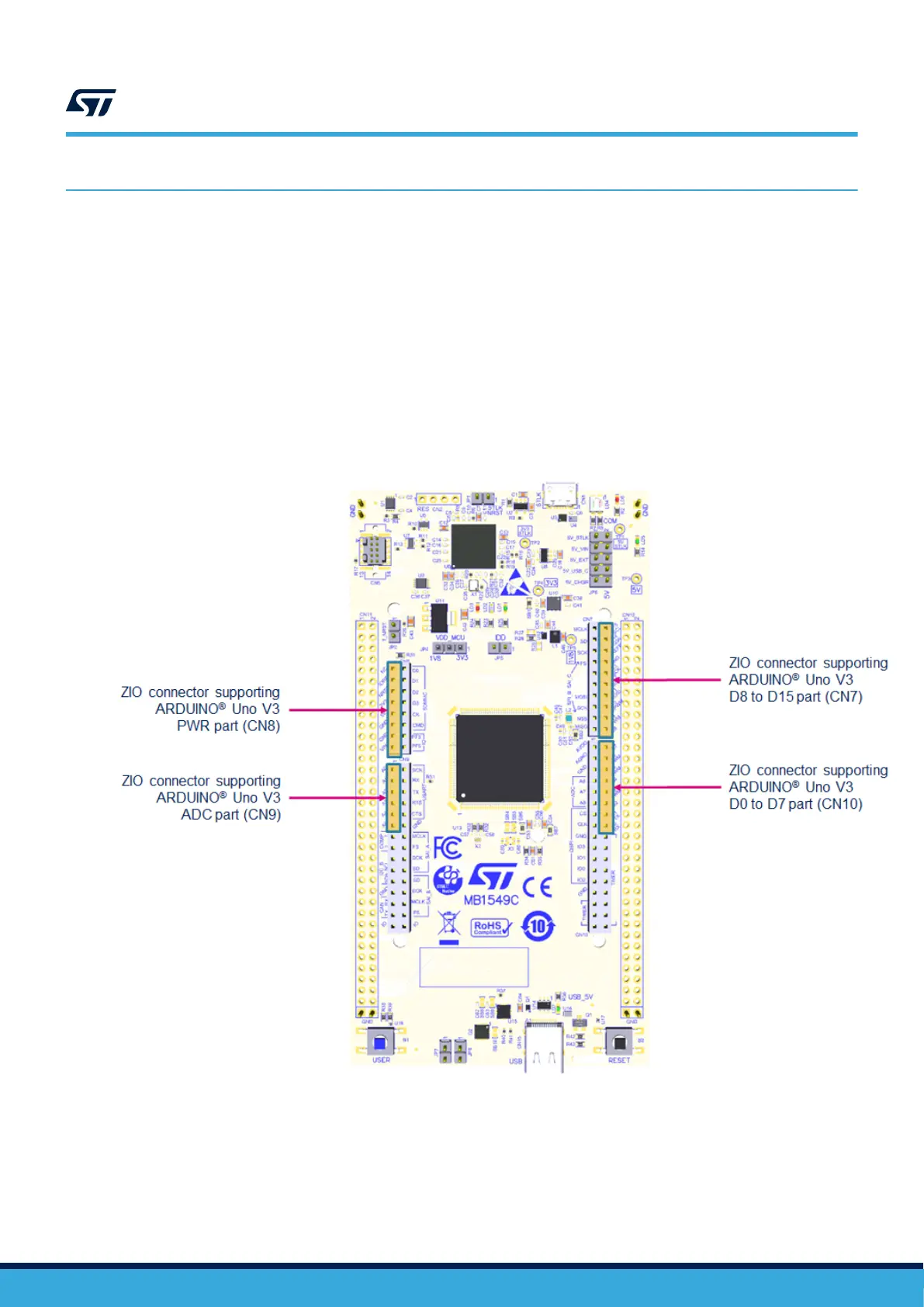

Figure 16. Zio connectors supporting ARDUINO

Uno V3

The related pinout for the ARDUINO

connector is listed in Table 15, Table 16, Table 17, and Table 18.

UM2861

Extension connectors

UM2861 - Rev 2

page 32/49
