7.2 CN11 and CN12 ST morpho headers
The ST morpho consists of CN11 and CN12 male pin header footprints (not soldered by default). They can be
used to connect the STM32 Nucleo-144 board to an extension board or a prototype/wrapping board placed on
top of the STM32 Nucleo-144 board. All signals and power pins of the STM32 are available on the ST morpho
connector. An oscilloscope, a logic analyzer, or a voltmeter can also probe this connector.

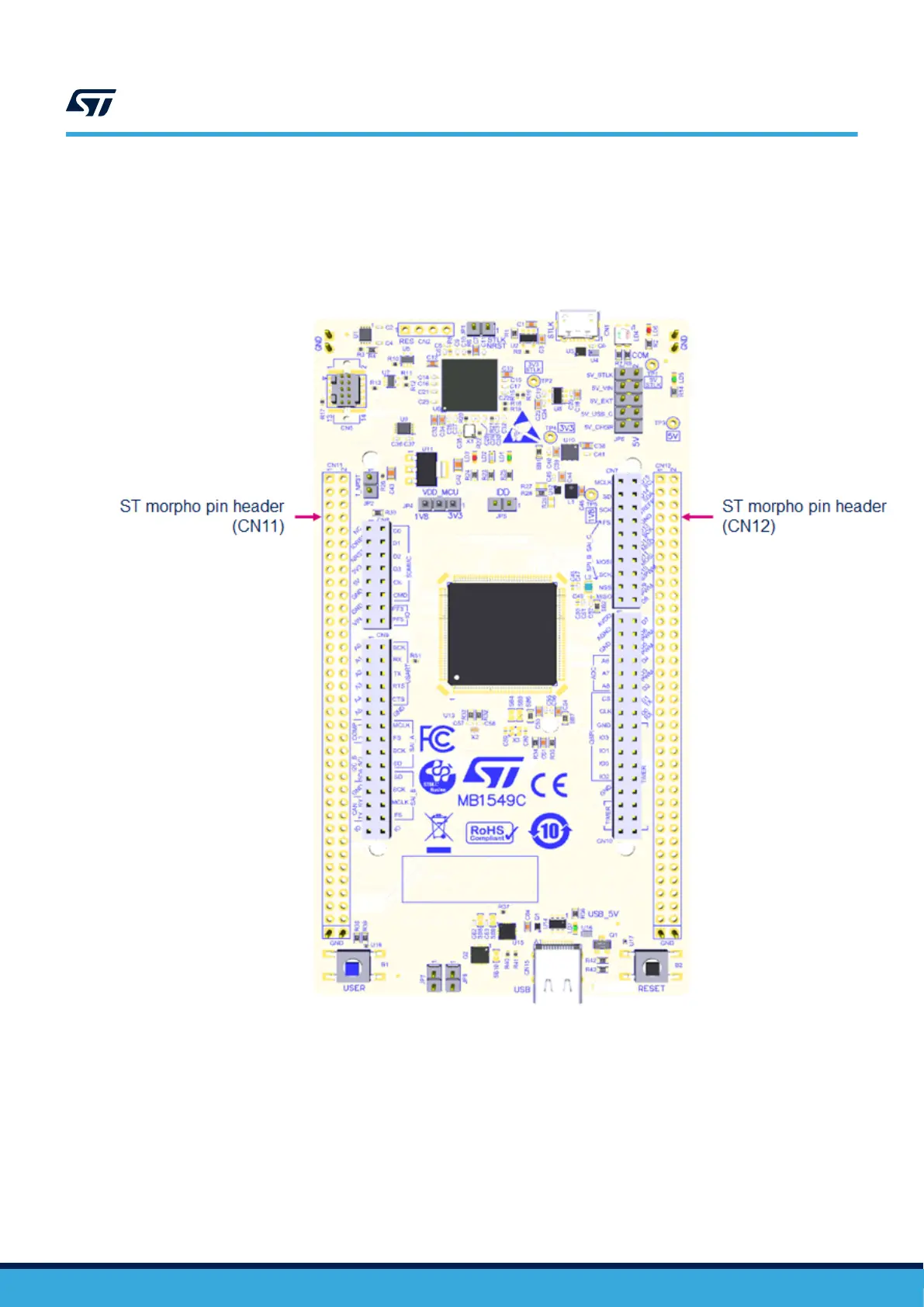

Figure 17. ST morpho connector
Table 19 shows the pin assignments for the STM32 on the ST morpho connector.
UM2861
CN11 and CN12 ST morpho headers
UM2861 - Rev 2
page 36/49
