Step-by-step execution UM2262
54/94 UM2262 Rev 6
8.4.3 File transfer completion
After the file transfer is completed, the system forces a reboot as shown in Figure 27.

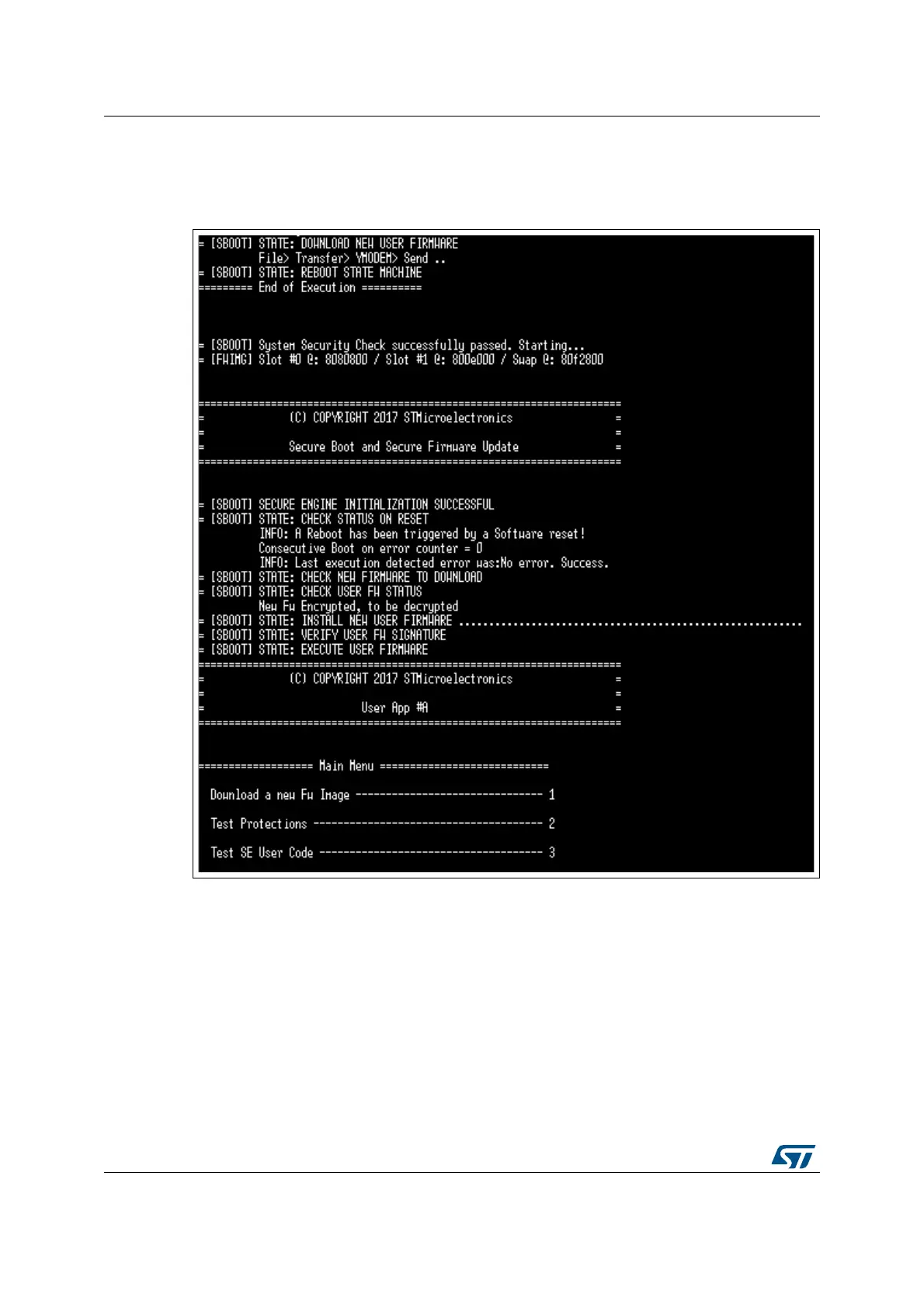

Figure 27. SBSFU reboot after encrypted firmware transfer
The system status that is printed as shown in Figure 27 consequently provides the following
information:
• There is no firmware to download.
• The firmware is detected as encrypted. The user firmware is decrypted.
• If the decryption is OK, the user firmware is installed.
• If the installation is OK, the user firmware signature is verified.
• If the verification is OK, the user firmware is executed.
