Cryptographic s
chemes handling
UM2262
76/94
UM2262 Rev 6
D.5
Secure Boot and Secu
re Firmware Update flow
Figure
43
and
Fig
ure
44
indicate how the cryptographic op
erations (asymmetric
cryptographic scheme with FW en
cryption) are integrated in the SBSF
U execution boot
flows.

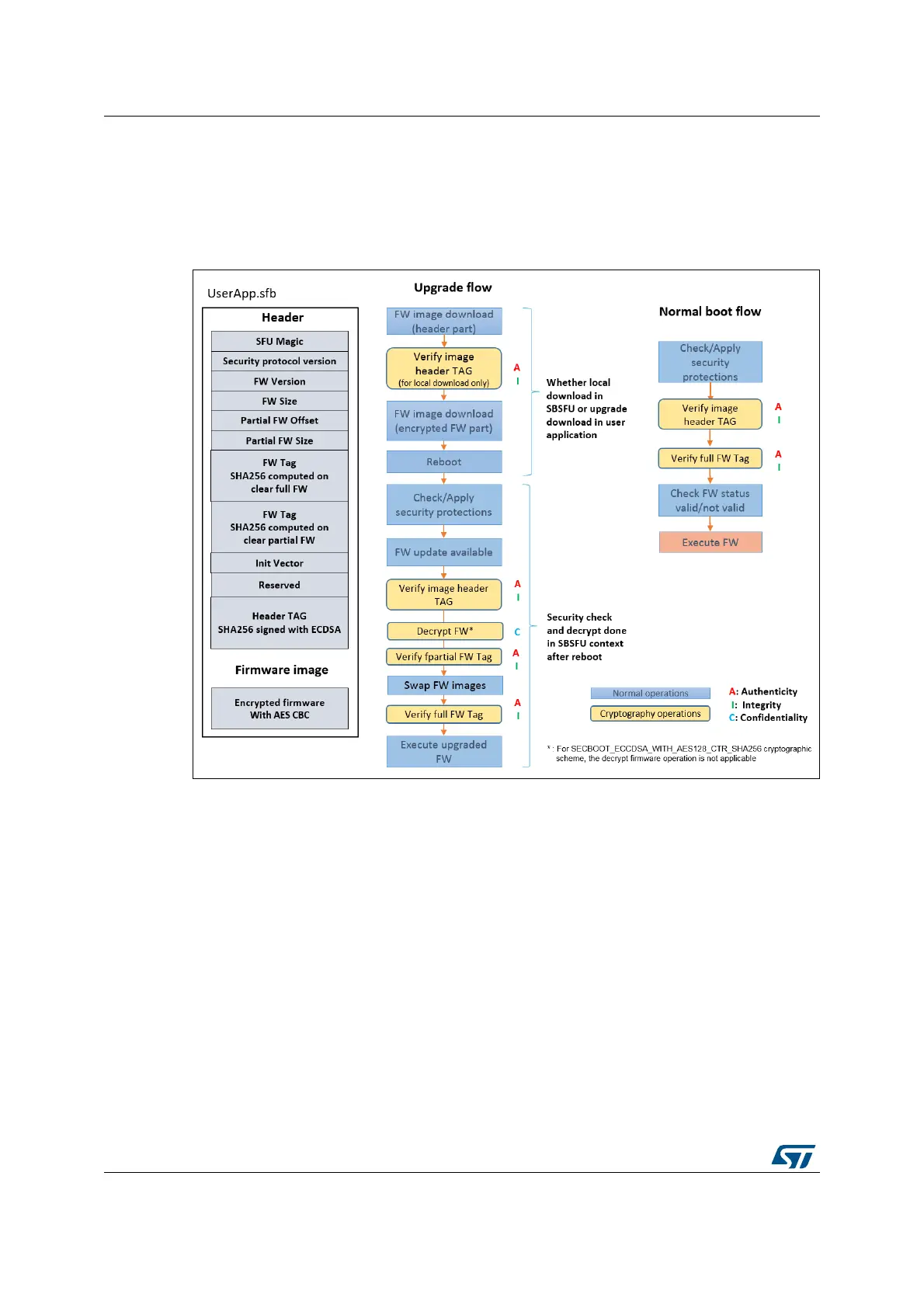

Figure 43. SBSFU dual-image boot flows
75
77
