10.4 Installation of an optional pump station
An optional pump station, article number 16580000, is available to supply an external consumer such
as an analyzer directly with pure water from the tank of the OmniaTap xs system. The pump station
can be connected directly to the tank of the OmniaTap xs system. To connect the pump station,
proceed as follows:
1. Make sure the OmniaTap xs system is unplugged and the tank is completely drained.
2.

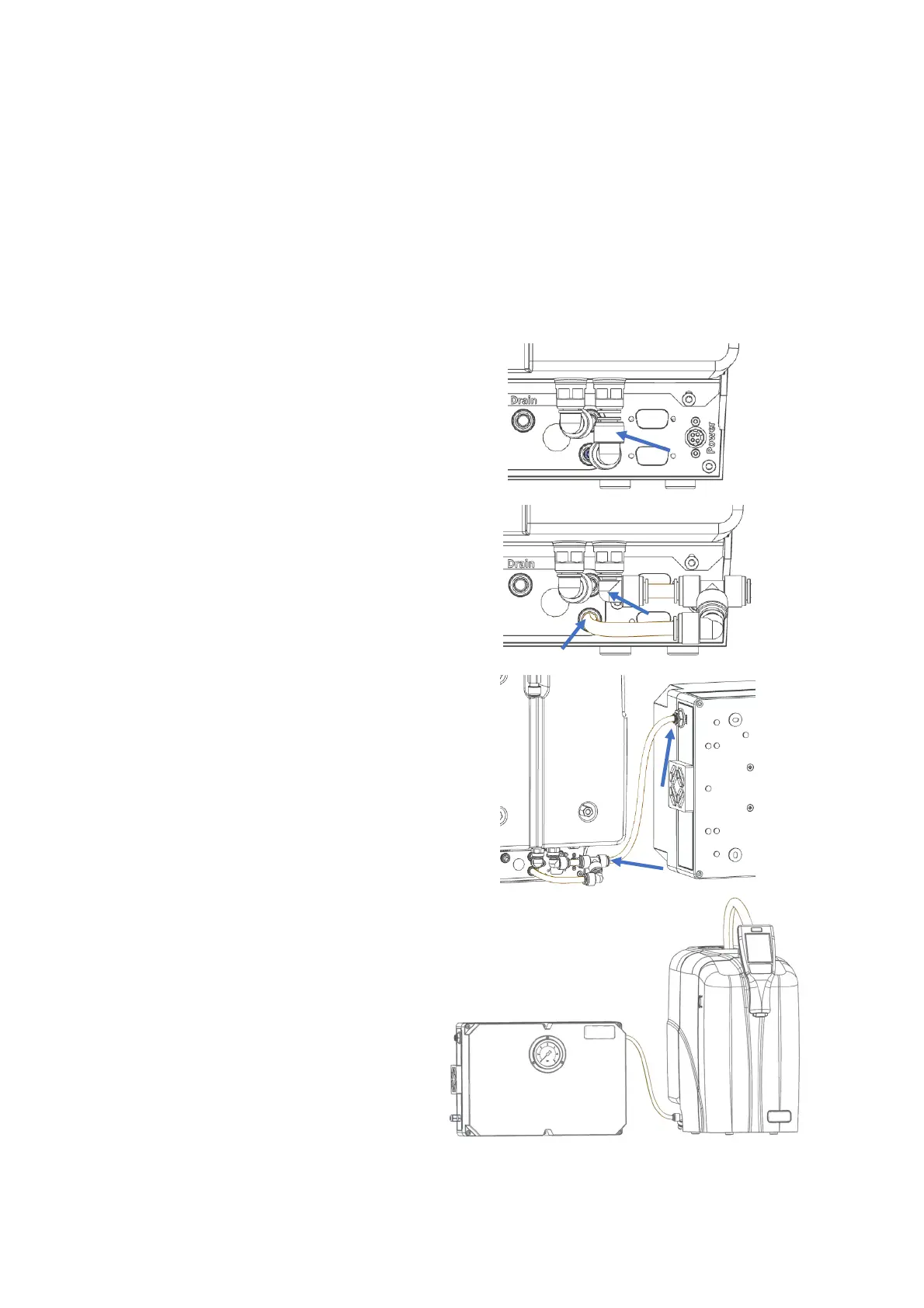

Now remove the hose connection of
the right tank connection on the back
of the system as shown in the adjacent
figure.
3.
A T
-
connector prepared with hoses is
supplied with the pump station. Insert
the fitting and the end of the hose into
the appropriate ports on the tank and
system as shown in the adjacent
figure.
4. Now connect the "Inlet" connection of
the pump station to the free
connection of the T-connector using
the 8mm hose included in the scope of
delivery.
5. You can now connect an external
consumer to the outlet of the pump
station using an 8mm hose. The flow
rate is approx. 72l/h at 2bar outlet
pressure.
