– 14 –
ENGLISH
4 While observing the direction of the
roll, set the paper roll into the hol-
low as shown in Fig. 6-5.
5 Insert the edge of the paper into the
paper feeder. If inserted correctly,
the edge of the paper will pass
through the paper exit.
6 Insert the top edge of the paper into
the tear bar slot, then mount the cover
by reversing the procedure for re-
moving the cover in step 1 above.
Note: When the paper end mark ap-
pears on the paper, replace the
roll paper before it runs out.

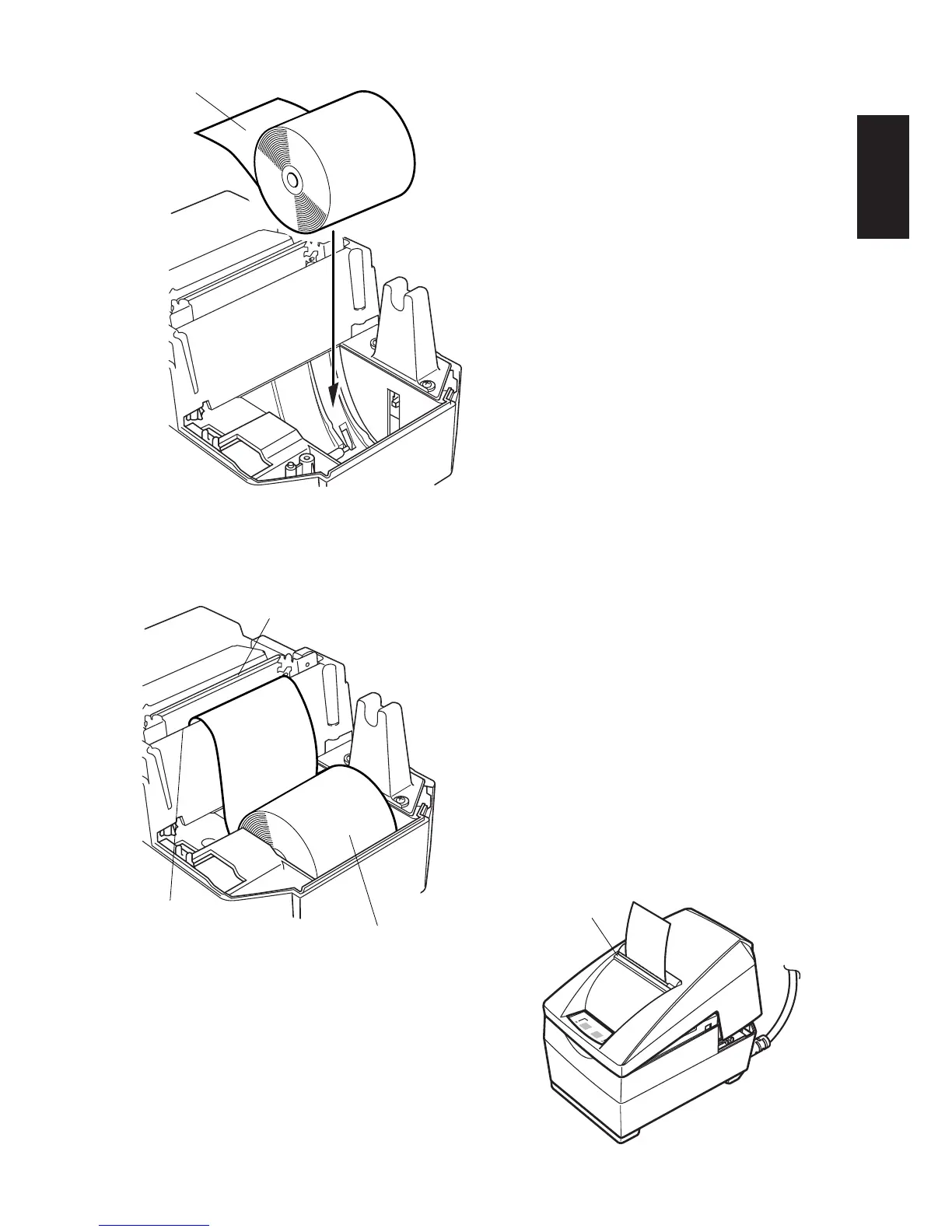

Fig. 6-5 Setting the paper
Fig. 6-6 Loading the paper
Fig. 6-7
Roll paper
Roll paper
Tear bar
Paper feeder
Paper exit
