V01-2013 35mm-01 serie
11

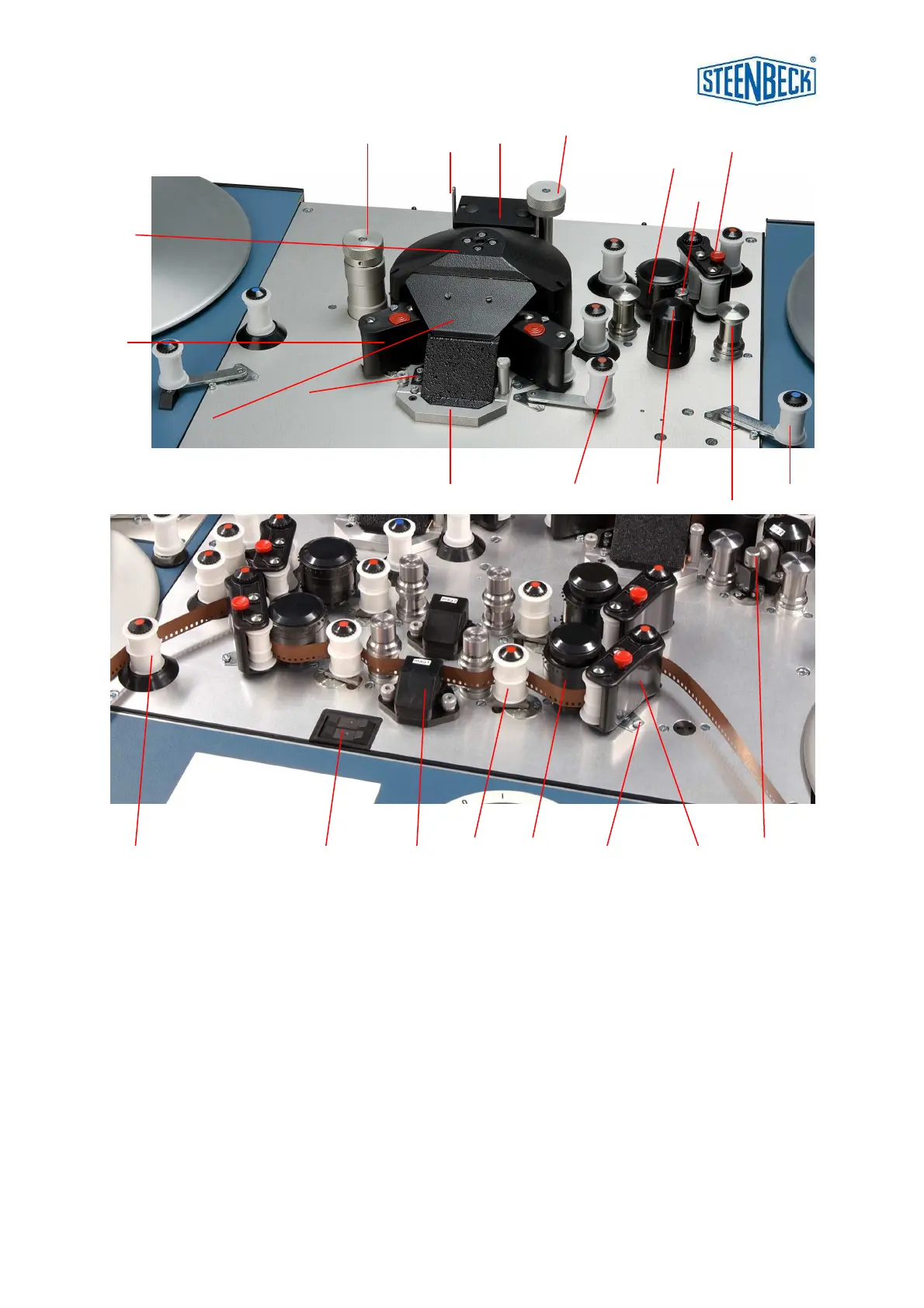

5.4 DRIVE DECK OVERVIEW (fig. 5)
34. polygon cover cap (support guide ring; not on photo) 51. switch for sound-shift system. ST401-701-721 only
35. pressure arm picture left and right 52. lens and prism system
36. pressure arm sound left and right 53. screw bearing shaft plate pressure arm
37. COMOPT sprocket for film with sound 54. SEPMAG / SEPOPT sprocket
38. push button (red) to detach pressure arm 55. interchangeable condensor system
39. cover plate (lift when threating film) (part of the illumination system)
40. switcher between standard image and Cinemascope
41. focus image
42. guide rollers film
43. optical sound reader COMOPT
44. knob for framing by hand. (don’t touch it while running)
45. tension roller; a) for film with sound b) for SEPMAG sound
46. protection cap optical sound lamp (OPT. 2)
47. fly wheels to optimize sound
48. hexagon screws for adjusting picture lamp (see also page 28)
49. tension arm
50. magnetic head for SEPMAG (or placing SEPOPT / OPT. 1)
36 42 43 50 51 53 54 45
34
35
37
38
39
40 41
43
46 45 47
48
49
52
55
44
