Steenbeck 01 Series User Manual

V01-2013 35mm-01 serie
24
9.0 LIST OF SLOW / FAST MOVING PARTS 35mm 01-Series.
Fast moving parts:
Part number
9956.0224.00 fuse 0,5A T (slow)
9956.0232.00 fuse 6,3A T
0056.0230.00 fuse 2,0A T
9956.0227.00 fuse 1,0A T
9956.1066.00 picture lamp, 12 V / 100W
9956.1080.00 sound exciter lamp

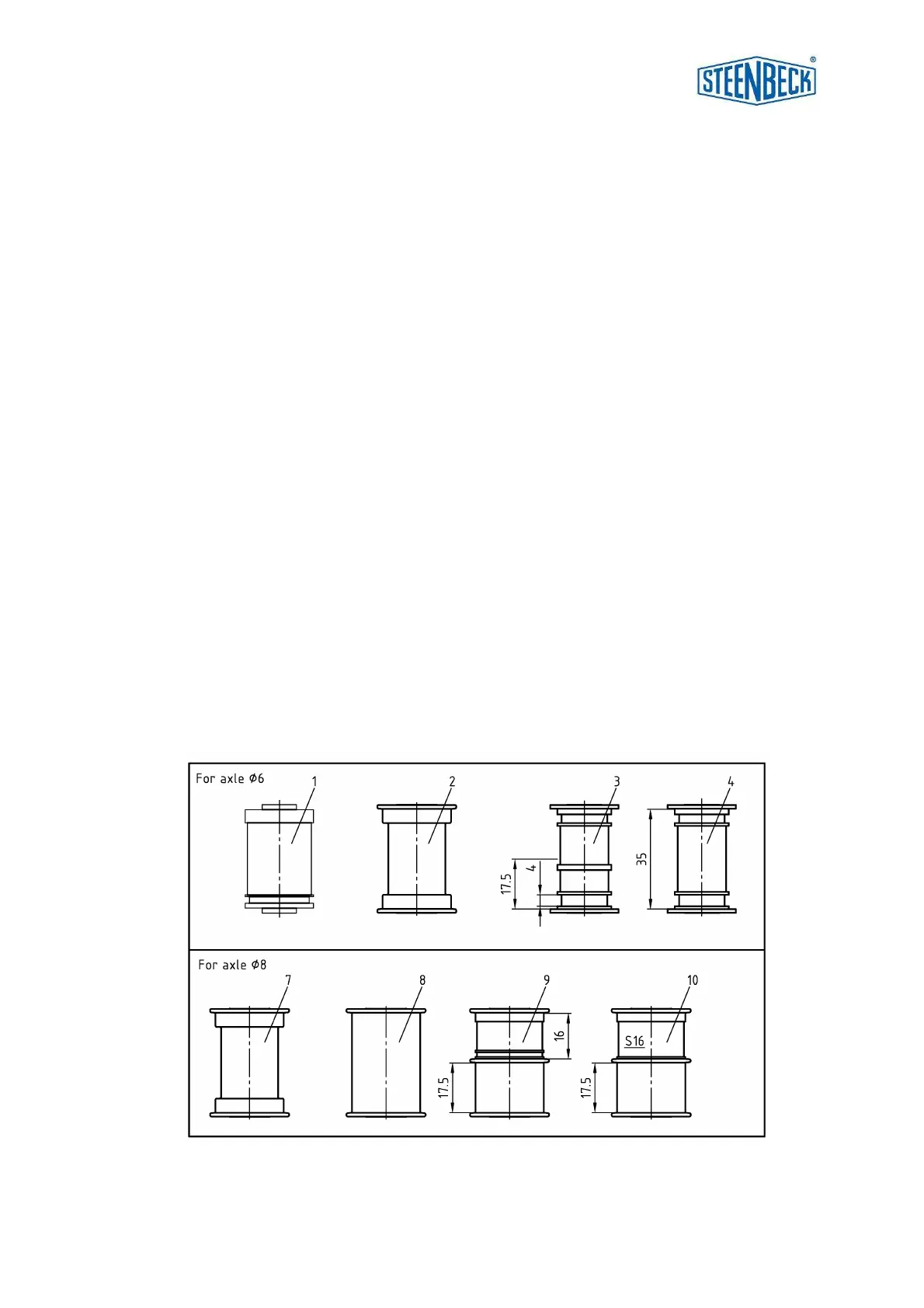

Slow moving parts:
Part number
0309.0202.01 picture roller, picture 35mm (2)
0309.0201.01 pressure roller, picture 35mm (1)
1010.0203.01 guide roller picture 35mm (7)
2808.0202.01 pressure roller picture (for sound) 35mm (4)
2808.0201.02 pressure roller sound 16/17,5mm (3)
1010.0803.01 sound roller (S)16/17,5mm (10)
1010.0204.01 sound roller 35mm (8)
9953.0532.00 picture lamp socket
9955.0080.00 motor brush
