V01-2013 35mm-01 serie
29
11.0 ADJUSTMENT PICTURE LAMP 35MM.
ST3511 / ST(1)401 / ST701 / ST721

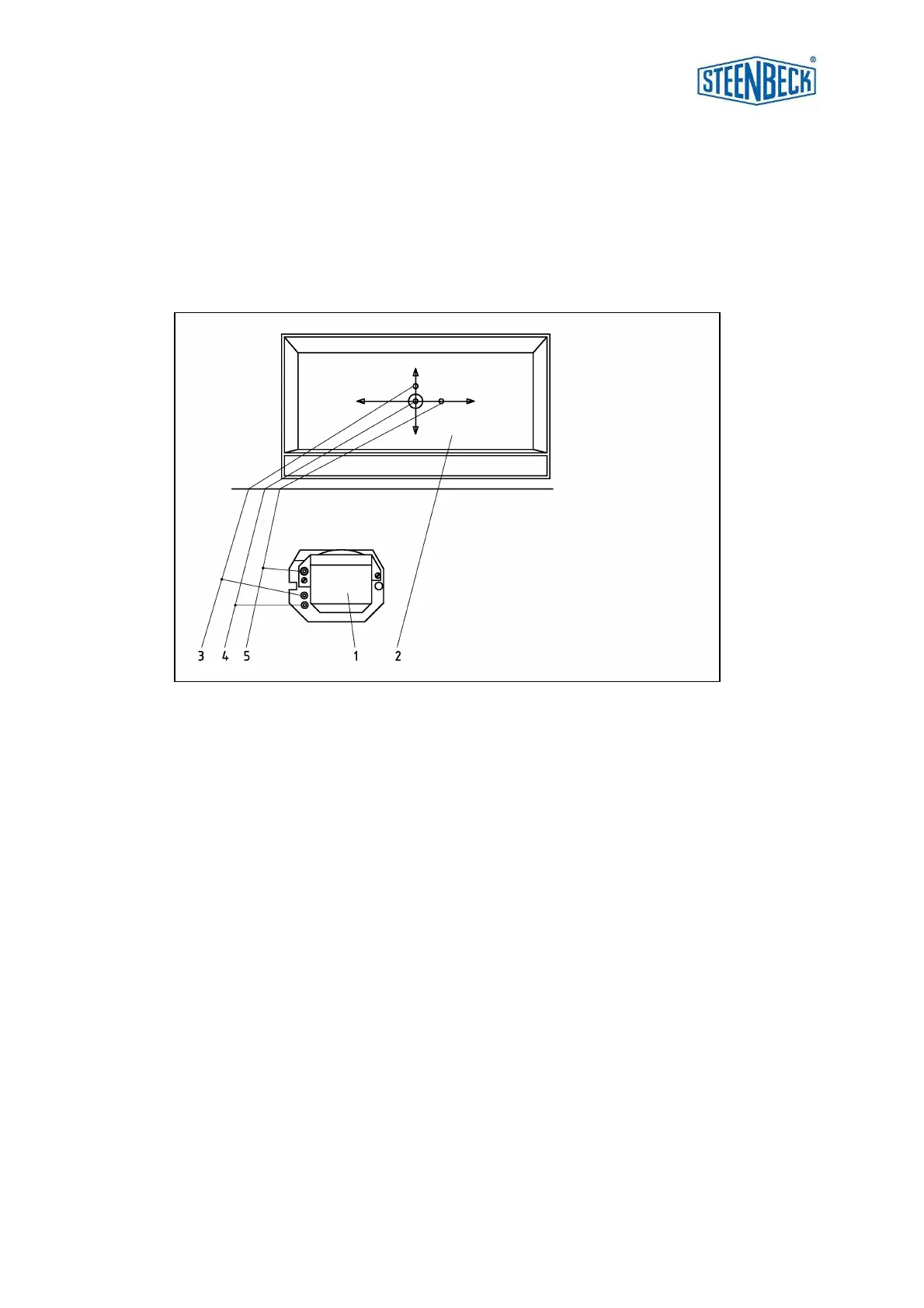

1. Lighting aperture ( interchangeable condensor system)
2. Picture screen
3. Adjusting screw, vertical.
For uniform illumination at the top and bottom of the screen.
4. Adjusting screw, focus.
Adjusting to minimal flickering
5. Adjusting screw, horizontal.
For uniform illumination to the left and right of the screen.
Picture lamp adjustment should be carried out with machine in operation in sync
speed, but without film. It is advisable to start with the screws 3 and 5.
Use Hexagon 4mm Steenbeck part number
fig.11
