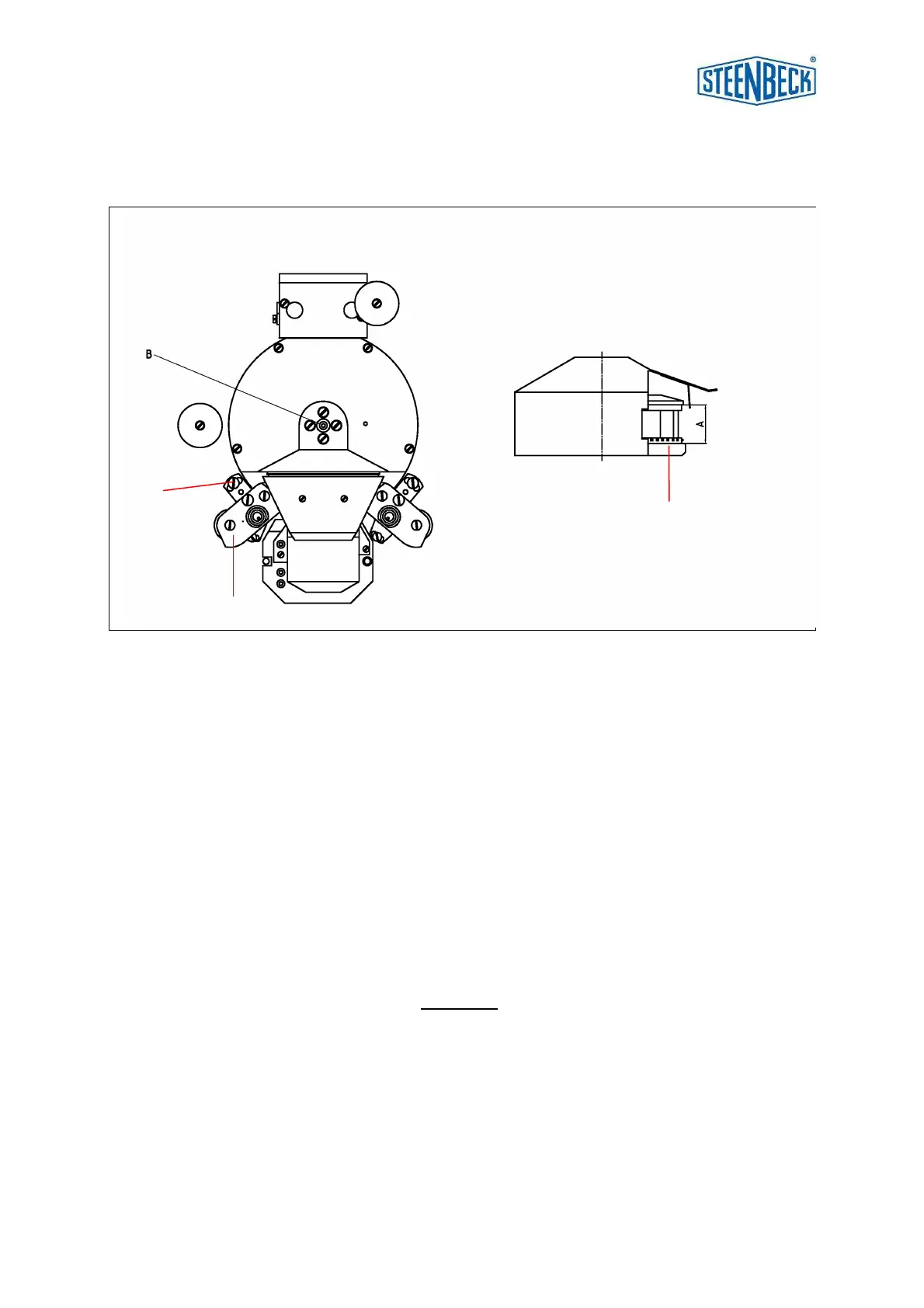

8.11 Adjustment guide ring 35mm.
Old film, even new film can differ in width.
The width “A” is normally set to 35mm – 0,2mm.
If the film is bending on the film gate the width must be adjusted.
The screw “B” ( hexagon 4mm) should be turned:
a) gate larger: anticlockwise b) gate smaller: clockwise
If the film is loose on the gate (horizontal picture jitter), the screw “B” should
be turned clockwise.
Caution:
With old film be careful to make alignments.
Extra attention should be given when shrunken film is in the gate.
Try first to use one of the two picture pressure arm (20).
Make a careful test.
When this is not really helping the sprocket ring (E) should be replaced.
