6.0 Universal counter:
For ST3511 – ST(1)401 – ST701 – 2
nd
counter ST721.
The Steenbeck universal counter is designed to measure film length (all formats) and
calculate the position and time information in common use.
Additionally, the universal counter may offer extra possibilities for more effective work
on your film rewind / film inspection table.

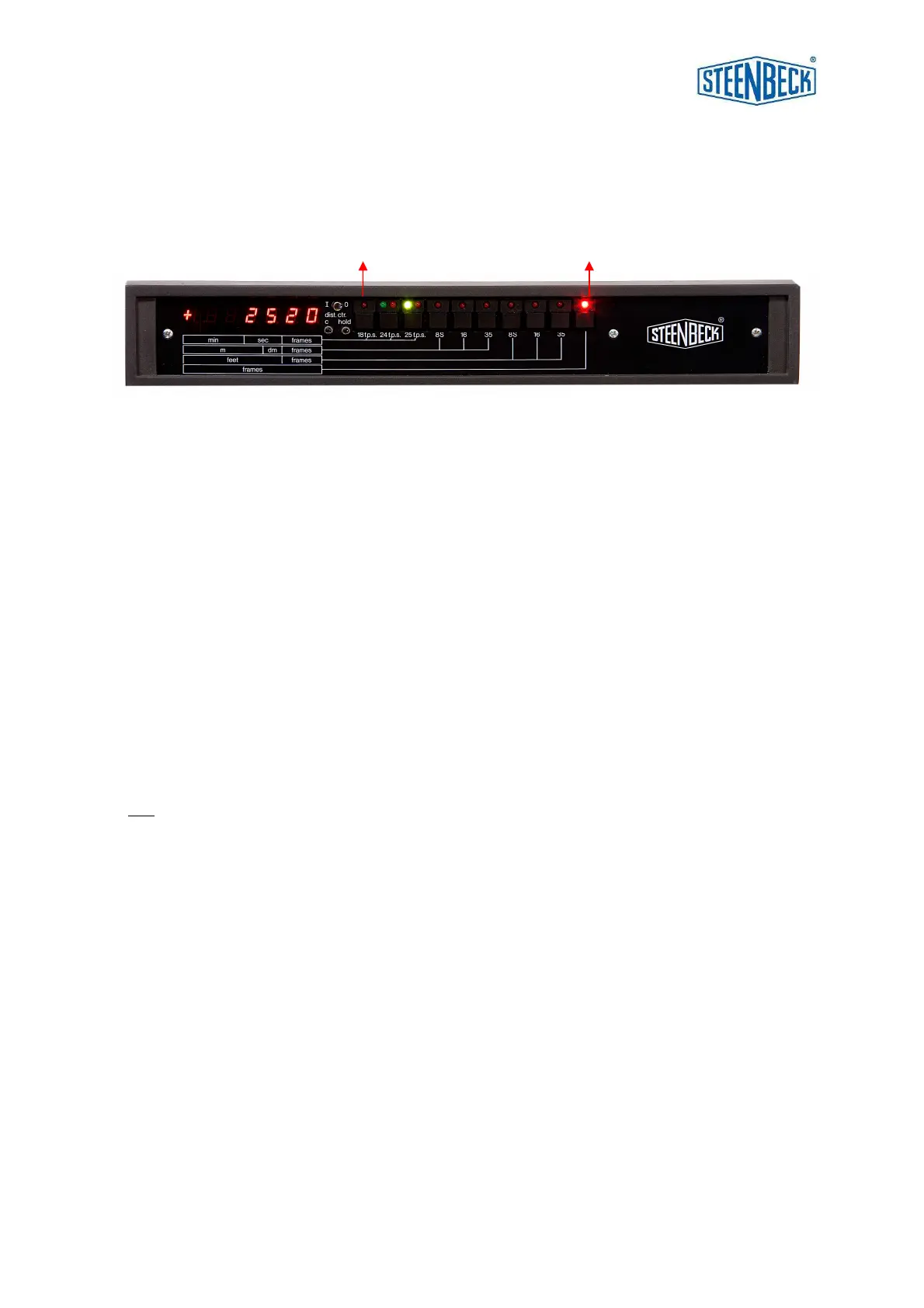

The counter / calculator functions are controlled by keys No. 1 – 10 (right to left)
1. frames counts and displays number of frames (max. 1.999.999)
2. feet 35mm displays film length in feet (16 frames = 1 foot)
3. feet 16mm displays film length in feet (40 frames = 1 foot)
4. feet 8Smm displays film length in feet (72 frames = 1 foot)
5. m / dm 35mm displays film length in meters (1 meter = 52,630 frames)
6. m / dm 16mm displays film length in meters (1 meter = 131,200 frames)
7. m / dm 8Smm displays film length in meters (1 meter = 236,200 frames)
8. min / sec 25 FPS displays elapsed time (1 second = 25 frames)
9. min / sec 24 FPS displays elapsed time (1 second = 24 frames)
10. min / sec 18 FPS displays elapsed time (1 second = 18 frames)
The two digits to the right always indicate numbers of frames.
The other digits show the counter value according to the chosen film format.
A red LED on the key indicates the activated display format.
The green LED indicates 24 or 25 frames per second sync speed of the editor.
Together with the keys you will find one switch and two pushbuttons on the counter
front panel.
Pushbutton C = Clear Counter is reset to ZERO.
Pushbutton HOLD Display is stopped at actual reading.
The counter keeps on counting. When releasing
Pushbutton , counter value is transferred to display.
Switch DIST CTR Setting 1: distance counter on
Setting 0: distance counter off.
The distance counter is activated to measure partical
length or time values.
It can be reset to ZERO (C)
without effecting the main counter.
