stellar labs 5521 - Hydraulic Kit Diagrams

Stellar
®
5521 Telescopic Crane Owner’s Manual | Page 11
06
07
03
09
14
16
10,11,17
15
04
15
15
15
02
15
15
04
02
15
02
02
15
05
02
15
15
15 15
12
12
13
PRESSURE FROM PUMP
RETURN LINE (TO TANK)
ROTATION CCW
MAIN UP
ROTATION CW
MAIN DOWN
EXTENSION EXTEND
WINCH UP
EXTENSION RETRACT
WINCH DOWN
WINCH RETRACT
WINCH EXTEND
WINCH
BOOM UP
BOOM DOWN
MAIN
EXTENSION EXTEND
EXTENSION RETRACT
EXTENSION
ROTATION CCW
ROTATION CW
ROTATION
NOTE: USE 12" OF HOSE PROTECTOR
P/N 17288 OVER THE 2 WINCH HOSES
NOTE: USE 32" OF HOSE PROTECTOR
P/N 17288 OVER THE ROTATION HOSES

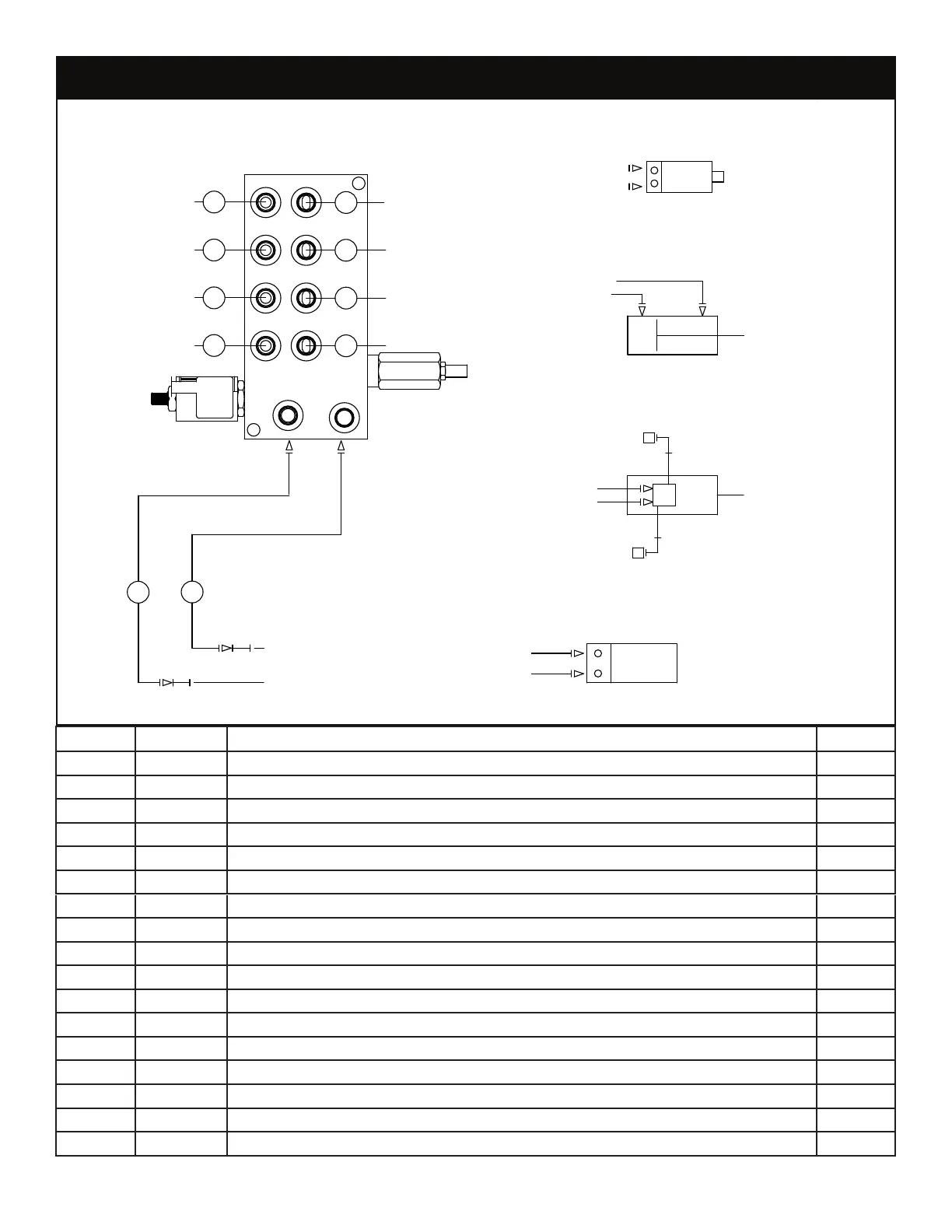

Hydraulic Kit (CDT) - PN 72837
ITEM PART DESCRIPTION QTY
01 72838 HOSE KIT 5521 V2 (INCL:2-6) 1
02 13028 HOSE-HYD .38 X 17 5REF
03 45439 HOSE-HYD .38 X 9 1REF
04 13030 HOSE-HYD .38 X 39 2REF
05 59137 HOSE-HYD .38 X 19 1REF
06 45438 HOSE-HYD .50 X 8 1REF
07 12171 FTG 6-6 MFS-MFS SWIVEL STRAIGHT 1
08 17288 HOSE PROTECTOR 1.00 AS-B-27 12”
09 12172 FTG 8-8 MFS-MFS SWIVEL STRAIGHT 1
10 15111 FTG 6-4 MORB-FORB STRAIGHT REDUCER 1
11 3861 FTG 6-6 MAORB-FORB 90 1
12 D1302 FTG 6-10 MFS-MAORB 90 2
13 C4961 FTG 6 MORB PLUG HOLLOW HEX 1
14 D1193 FTG 6-6 MFS-MAORB 45 1
15 0279 FTG 6-6 MFS-MORB STRAIGHT 12
16 C1175 FTG 8-8 MFS-MAORB 45 1
17 39780 GAUGE OIL LF 2.5” 0-5000 CBM 1
NOTE: HARDWARE KIT: 115668
