5521 Telescopic Crane Owner’s Manual

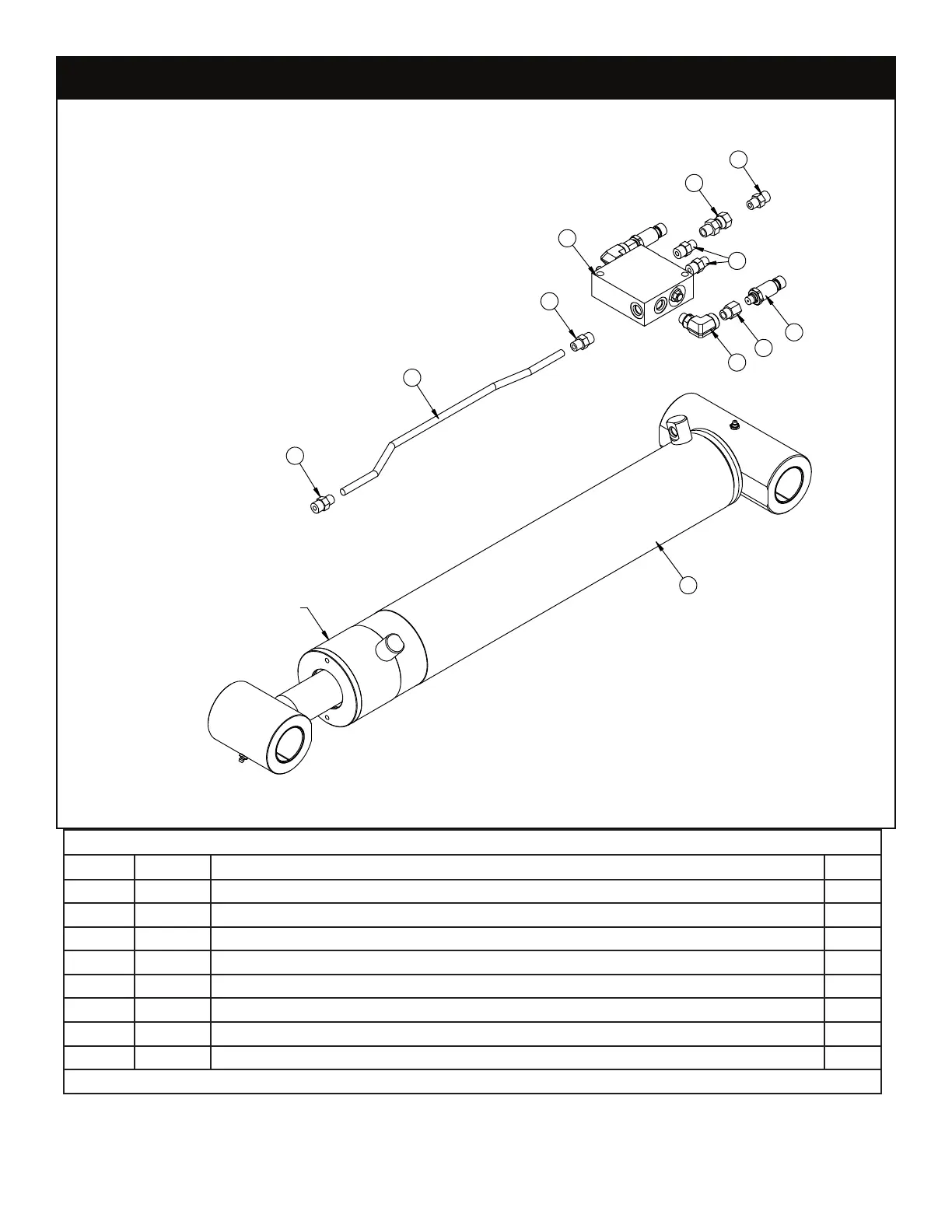

Main Cylinder Assembly - PN 78434
NUMBER LOCATION
CYLINDER SERIAL
4
4
1
5
4
2
3
6
7
8
BUSHING PART NUMBER 4381
BUSHINGS INCLUDED IN 72198
CYLINDER SEAL KIT 79128
PRESSURE REDUCING VALVE 35454
NOTES:
C-BALANCE VALVE 9803
4
PN 78434
ITEM PART DESCRIPTION QTY
1 72198 CYLINDER 4.00X22.50 1
2 13080 MANIFOLD SINGLE T11A 3500 PSI 1
3 71460 TUBE ASM 0.38X16.72 12630 MAIN CYL ZC 1
4 0279 FTG 6-6 MFS-MORB STRAIGHT 5
5 33743 FTG 6-6 FFSS-MORB STRAIGHT 1
6 3861 FTG 6-6 MAORB-FORB 90 2
7 15111 FTG 6-4 MORB-FORB STRAIGHT REDUCER 2
8 28485 TRANSDUCER PRESSURE 5000 PSI 2
