Page 16 | Stellar
®
5521 Telescopic Crane Owner’s Manual
1. After mounting, locate the pressure and return
lines. Note: Pressure line is 3/8” hose; Return line
is 1/2” hose. Hoses are terminated using swivel
fittings.

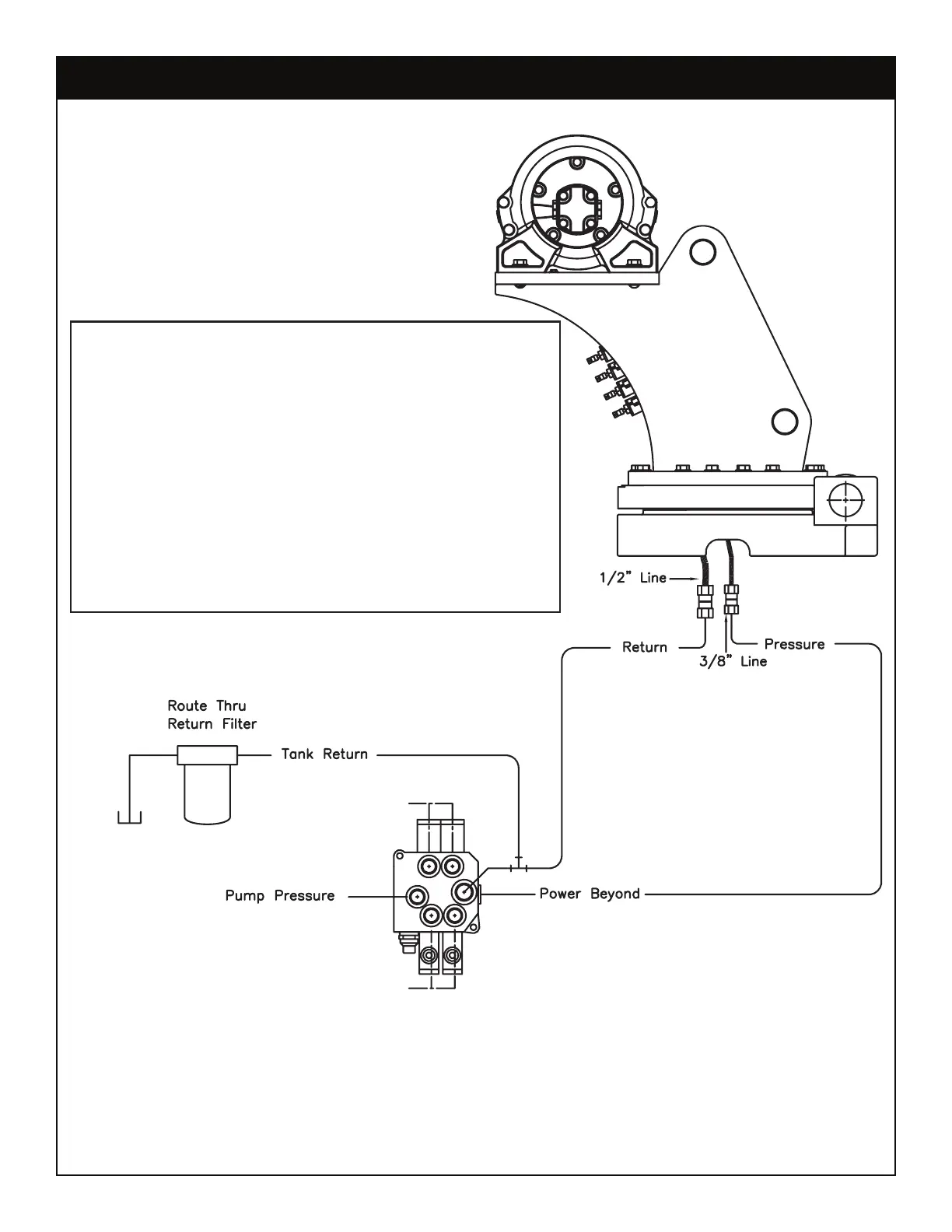

2. Install hydraulic lines per diagram below. Note:
Stabilizer valve supplies oil to crane using the
Power Beyond feature.
3. Install hydraulic reservoir with return filter. Attach
pump pressure line to valve, return link to tank.
4. Fill system with hydraulic oil (See Stellar®
Lubrication Recommendations for fluid details).
Stabilizer Functions
Stabilizer Functions
Typical Stabilizer Valve
with Power Beyond Capabilities
Hydraulic Installation
