stellar labs 5521 - Valve Bank Assemblies

Stellar
®
5521 Telescopic Crane Owner’s Manual | Page 13
PN 44530
1 25367 1RELIEF VALVE 24685/24690
25369 SEAL KIT 24960/25381
2 24960 1VALVE FLW CTRL PRP/JP04C3150N 0-8
25368 SEAL KIT 25367
3 25371 3VALVE SOLND 3 POS 4 WAY TAND G04571
4 25372 1VALVE SOLND 3 POS 4 WAY OPEN G04591
25373 SEAL KIT 25371/25372
5 44532 9
37 FT LBS
20-22 FT LBS
25 FT LBS
25 FT LBS
3 FT LBSCOIL 12VDC DUETSCH CAP012H
ITEM PART No. QTY.DESCRIPTION TORQUE
NOTE: PN's 24960 & 25371 DO NOT INCLUDE COIL PN 44532
5
3
1
4
5
5
3
2

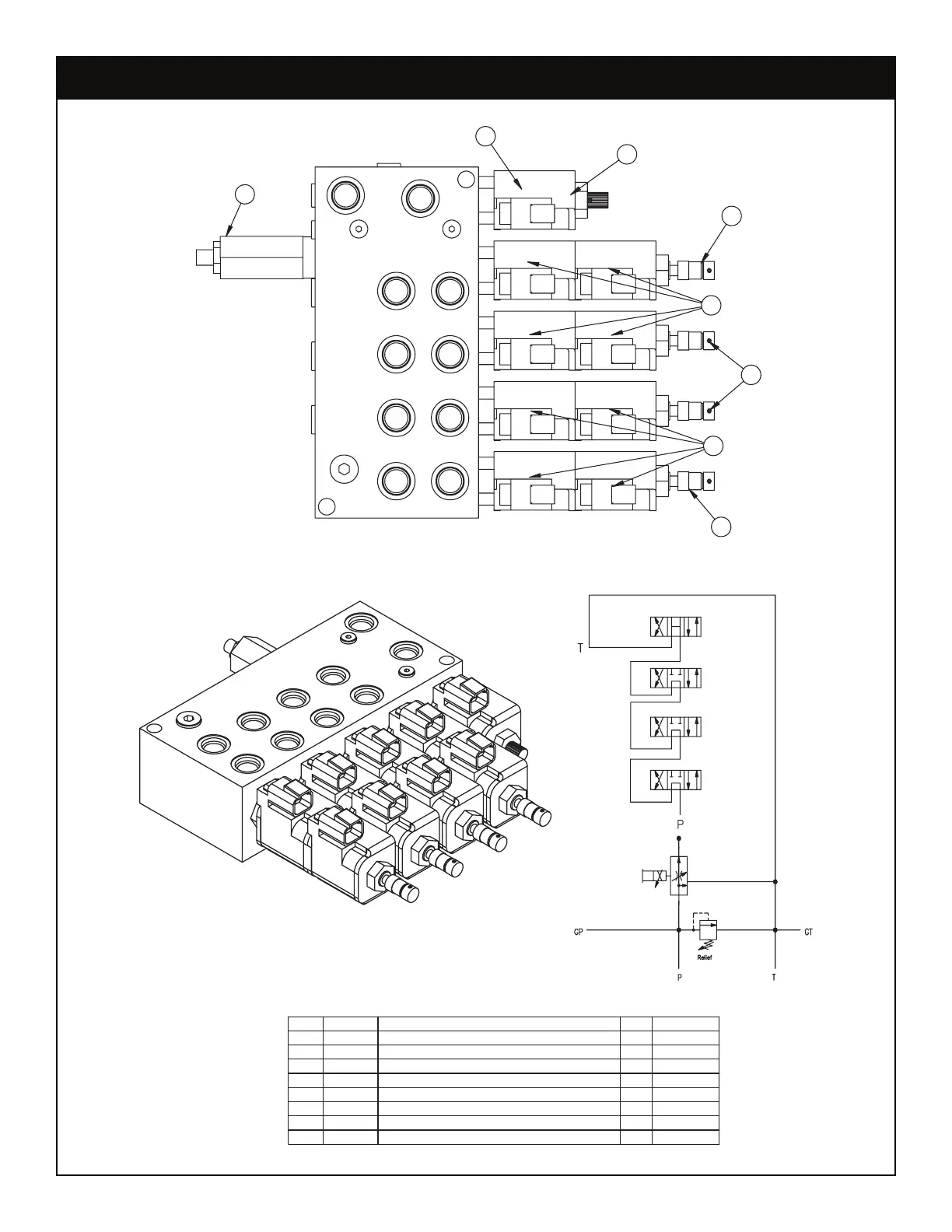

HYDRAULIC SCHEMATIC
Valve Bank - PN 44530
