5521 Telescopic Crane Owner’s Manual | Page 33

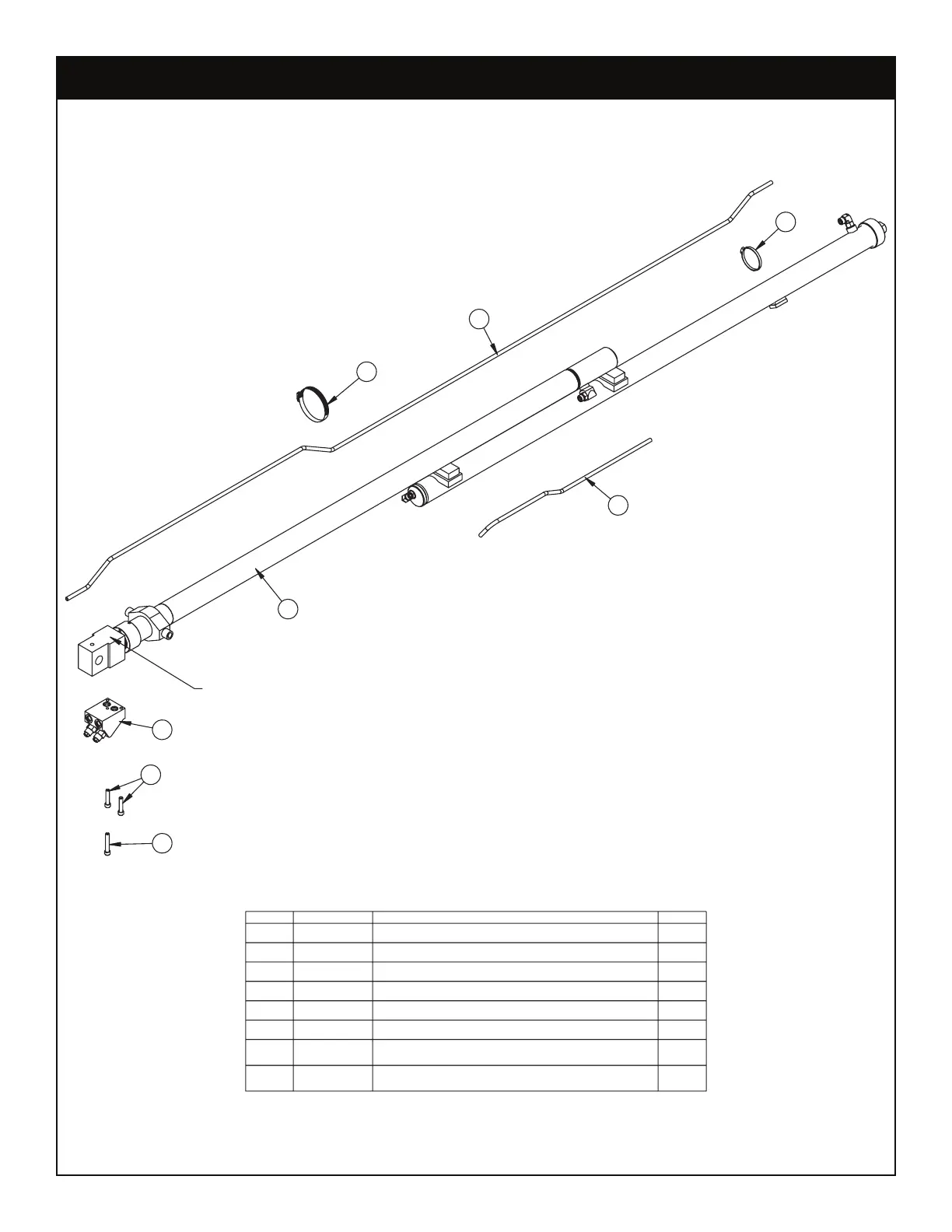

Extension Cylinder Assembly (2 Hyd) - PN 49316
8
CYLINDER SEAL KIT 80503
2
4
1
5
6
3
C-BALANCE VALVE 9803
LOCATION
CYLINDER
SERIAL TAG
7
.YTQNOITPIRCSEDTRAPMETI
1 37548 CYLINDER EXT 2 STAGE 2.0/2.0 PTD 60 1
2 14115 MANIFOLD ASM 6620 EXT CBBD-LJN-XVN 1
3 11882 CAP SCR 0.38-16X1.75 SH ZC 2
4 14601 CAP SCR 0.38-16X2.25 SH ZC 1
5 24729 HOSE CLAMP #52 3.00 - 3.75 1
6D0655 HOSE CLAMP #36 WRM GEAR1
7 87827
TUBE ASM 0.38X23.25 EXT CYL 7621/12621
YZ
1
8 88393
TUBE ASM 0.38X102.13 EXT CYL
7621/12621 YZ
1
PN 49316
