stellar labs 5521 - Extension Cylinder Assembly (1 Hyd;1 Manual)

Page 34 | Stellar
®
5521 Telescopic Crane Owner’s Manual

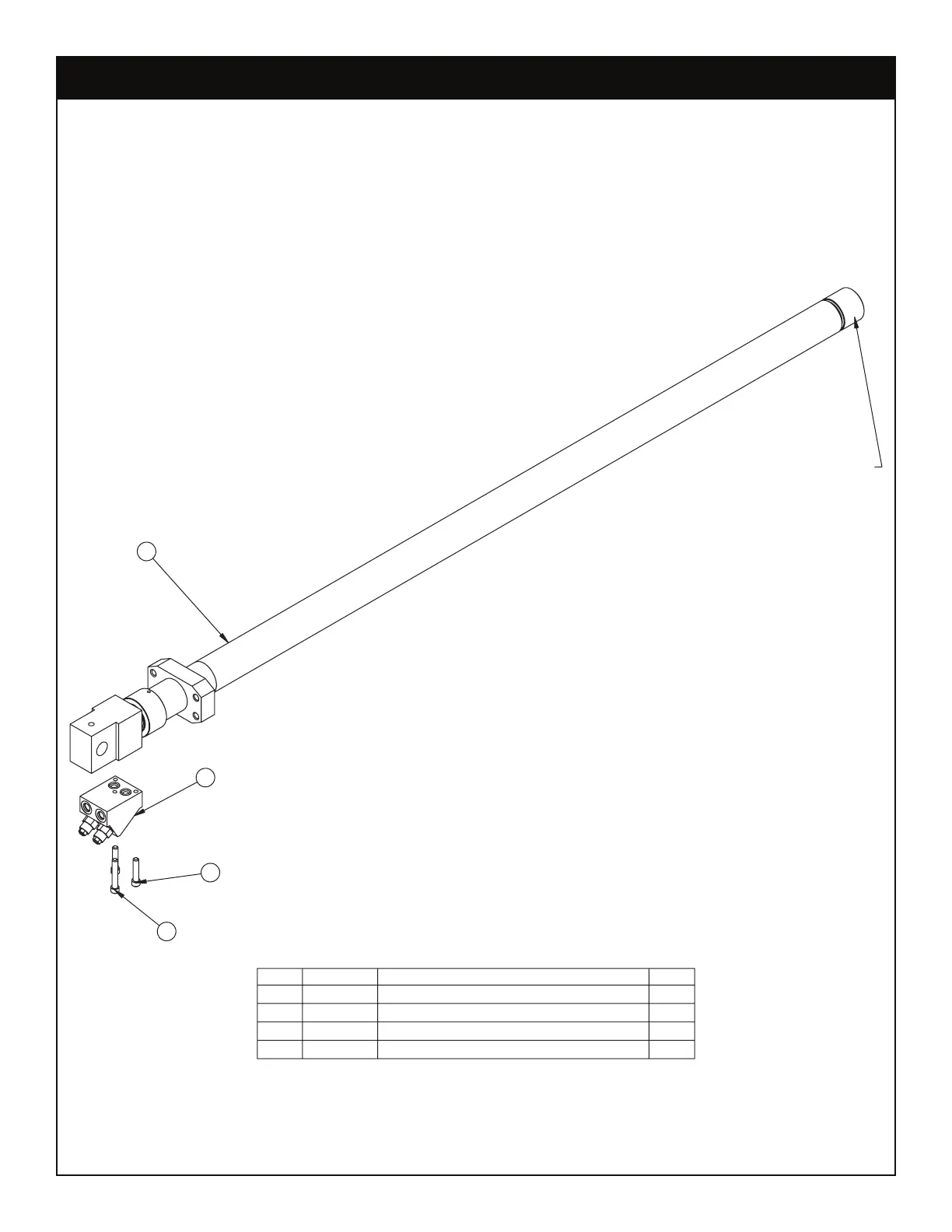

Extension Cylinder Assembly (1 Hyd/1 Manual) - PN 57936
3
4
1
2
CYLINDER SERIAL
NUMBER LOCATION
.YTQNOITPIRCSEDTRAPMETI
1 57932 CYLINDER 2.00X60.00 5521 MANUAL 1
2 14115 MANIFOLD ASM 6620 EXT CBBD-LJN-XVN 1
3 11882 CAP SCR 0.38-16X1.75 SH ZC 2
4 14601 CAP SCR 0.38-16X2.25 SH ZC 1
C-BALANCE VALVE 9803
CYLINDER SEAL KIT 54778
PN 57936
