5521 Telescopic Crane Owner’s Manual | Page 23

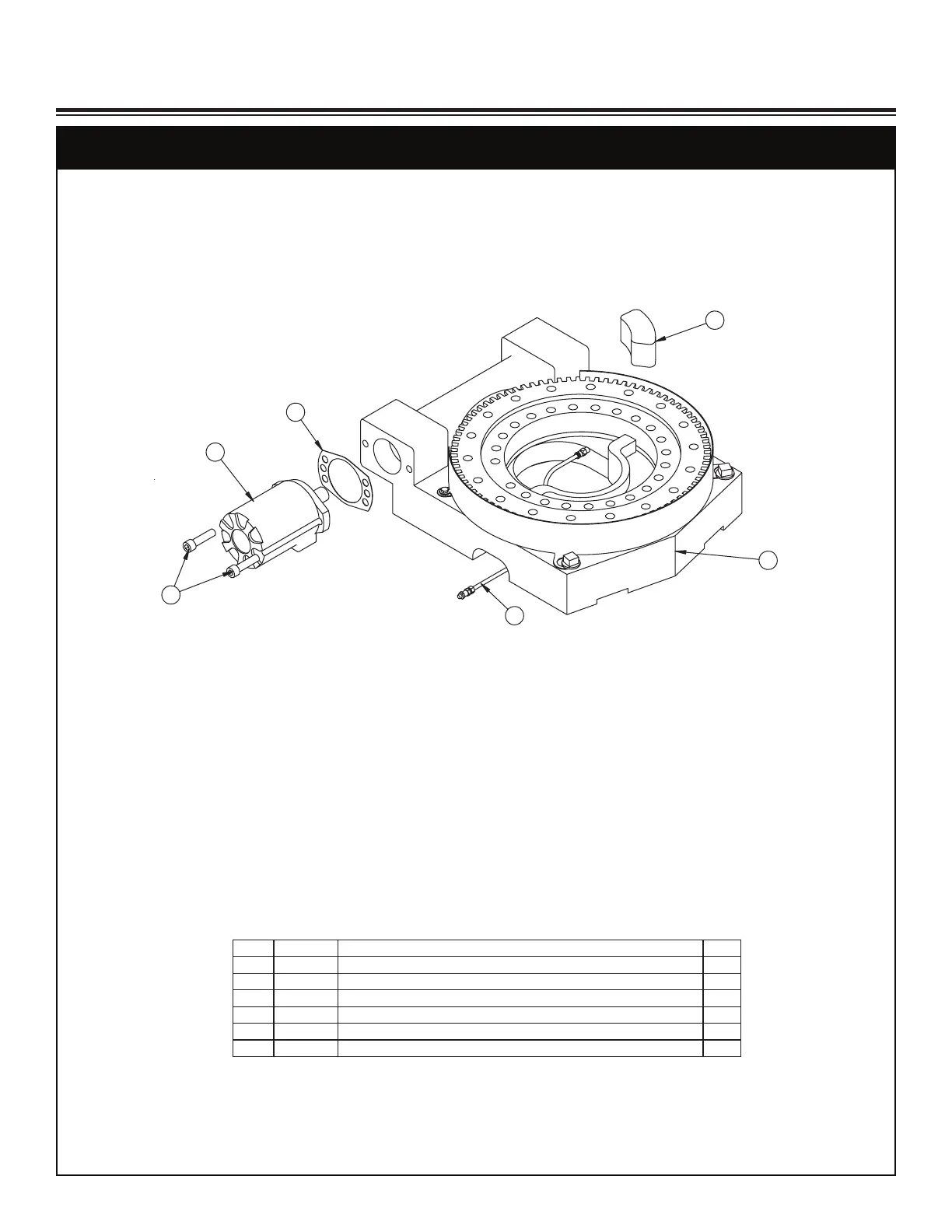

Base Assembly - PN 50364
PN 50364
1 47869 1BEARING SWING DRIVE CAST 6620 GEARTEK
4 11542 1STOP 6620 400 SLIDE
3 53495 2CAP SCR 0.50-13X2.00 SH
2 C6069 1MOTOR HYD ROSS MK080613AAAB
5 104018 1HARDWARE KIT BASE ASM 30IN GREASE LINE
6 21151 1GASKET MOTOR 008-10056-1
ITEM PART No. QTY.DESCRIPTION
NOTE: ITEM 1 INCLUDES GUARD & GUARD FASTENERS
4
GASKET SHOWN AS REFERENCE
2
6
1
3
5
Chapter 3 - Assembly Drawings
