stellar labs 5521 - Hydraulic Kit (12 V CDT) - PN 72839

Page 12 | Stellar
®
5521 Telescopic Crane Owner’s Manual
ROTATION CCW
MAIN UP
ROTATION CW
MAIN DOWN
EXTENSION EXTEND
WINCH UP
EXTENSION RETRACT
WINCH DOWN
WINCH RETRACT
WINCH EXTEND
WINCH
BOOM UP
BOOM DOWN
MAIN
EXTENSION EXTEND
EXTENSION RETRACT
EXTENSION
ROTATION CCW
ROTATION CW
ROTATION
12V POWER UNIT
T
P
NOTE: USE 12" OF HOSE PROTECTOR
P/N 17288 OVER THE 2 WINCH HOSES
NOTE: USE 32" OF HOSE PROTECTOR
P/N 17288 OVER THE ROTATION HOSES
14
09
10,11,07
15
04
15
15
15
02
15
15
04
02
15
02
02
15
05
02
15
15
15 15
12
12
13
06
03
16
16

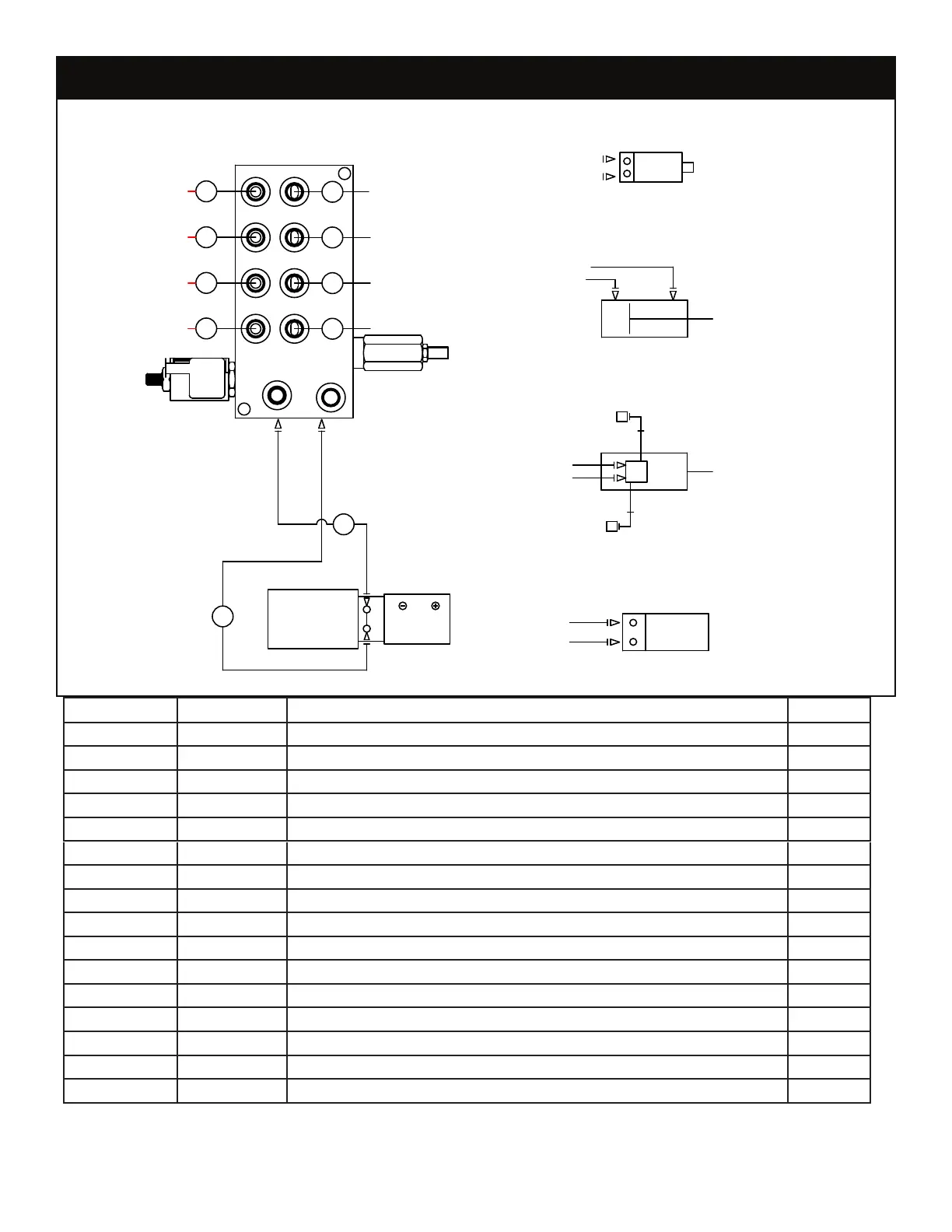

Hydraulic Kit (12V CDT) - PN 72839
ITEM PART DESCRIPTION QTY
01 72935 HOSE KIT 5521 12V V2 (INCL:2-6) 1
02 13028 HOSE-HYD .38 X 17 5REF
03 59519 HOSE-HYD .25 X 26 1REF
04 13030 HOSE-HYD .38 X 39 2REF
05 59137 HOSE-HYD .38 X 19 1REF
06 59520 HOSE-HYD .38 X 29 1REF
07 39780 GAUGE OIL LF 2.5 0-5000 CBM SAE 1
08 17288 HOSE PROTECTOR 1.00 AS-B-27 12”
09 C1175 FTG 8-8 MFS-MAORB 45 1
10 15111 FTG 6-4 MORB-FORB STRAIGHT REDUCER 1
11 3861 FTG 6-6 MAORB-FORB 90 1
12 D1302 FTG 6-10 MFS-MAORB 90 2
13 C4961 FTG 6 MORB PLUG HOLLOW HEX 1
14 D1193 FTG 6-6 MFS-MAORB 45 1
15 0279 FTG 6-6 MFS-MORB STRAIGHT 12
16 C0338 FTG 6-6 MFS-MAORB 90 2
NOTE:
HARDWARE KIT: 115669
