STEPCRAFT D.600 - Control

40
EN

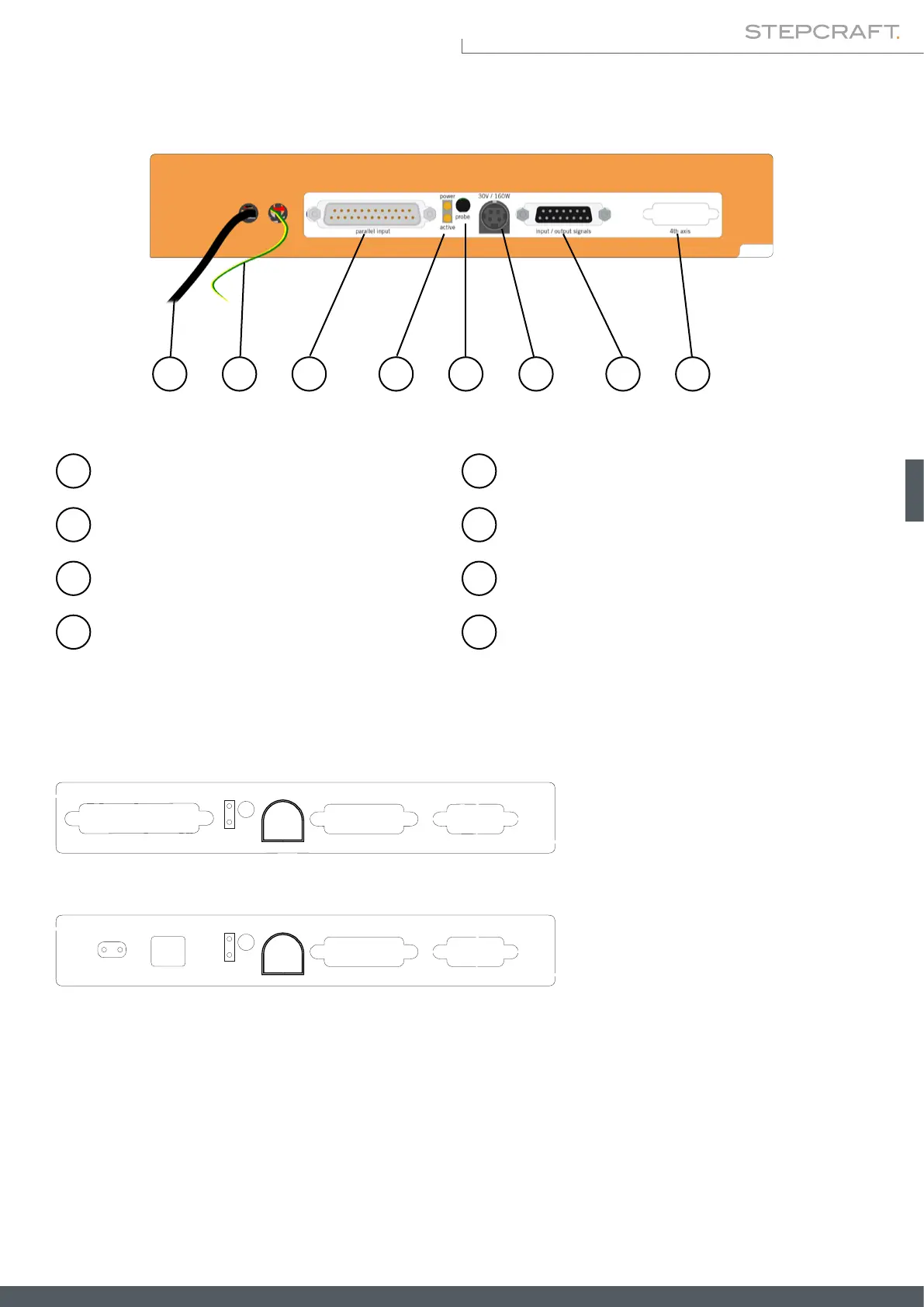

3�2 Control
Connection serial / USB
Connection emergency switch
Grounding cable
Status control
Power supply connection
Connection external signals (chapter „7.2 Pin
Assignment Mainboard / Optional Modules“)
3.5 mm Jack socket (for example for the connec-
tion of a tool length sensor or 3D touch probe)
Connection 4th axis (only usable together with
the optional motor driver board 4th axis)
1 5
2 6
3
4
7
8
65 73 4 8
Rear side with parallel module for UCCNC
Rear side with USB module for WinPC-NC
The rear side of your machine depends on the machine conguration you purchase:
1 2
active
30V/160W
power
probe
input / output signals
4th axis
parallel input
active
30V/160W
power
probe
input / output signals
4th axis
active error
USB
