9�3 Spare Parts
All parts of the machine and control can be purchased individually as spare parts. Please contact us directly about this.
You can nd our contact details on the cover sheet or in chapter „10 Contact“.
9�2�3 Y-Axis

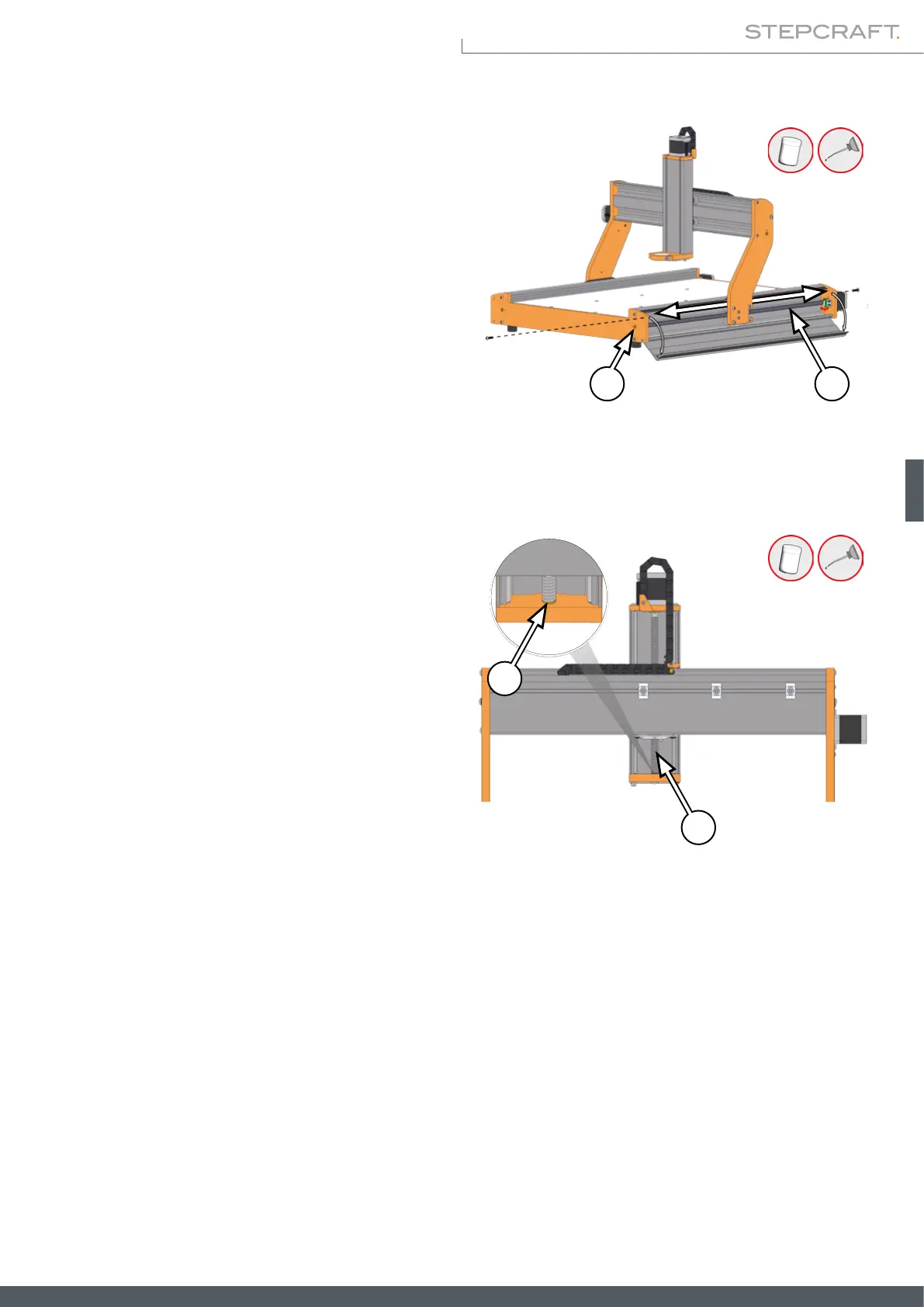

Move the Y-axis all the way to the front. To access the
Y-axis lead screws (4), remove the outer, upper screw from
the front and rear panel each. Now you can swing down
the linear cover.
Use a cloth to remove any dirt from the Y-thread spindle
(4). Take care that the cables of the stepper motor and the
end switch remain undamaged!
Then use a brush or cloth to evenly distribute grease on the threaded spindle.
Now move the Y-axis to the rearmost position and repeat the cleaning and lubrication procedure accordingly.
Finally, add a small amount of oil to the ange sleeve (5) at the front and rear.
Screw the removed screws back on and repeat the process analogously on the other side of the machine.
45
9�2�4 Z-Axis
Move the Z-axis all the way up. Use a cloth to remove any
dirt from the Z-axis lead screws (6). Then use a brush or
cloth to evenly distribute grease on the threaded spindle.
Move the Z-axis to the lowest position and repeat the pre-
vious procedure accordingly.
Finally, add a small amount of oil to the gap between the
ange sleeve (7) and the lead screw (6).
6
7
