StepperOnline RS485 User Manual

Modbus RS485 Stepper Drive User Manual
4

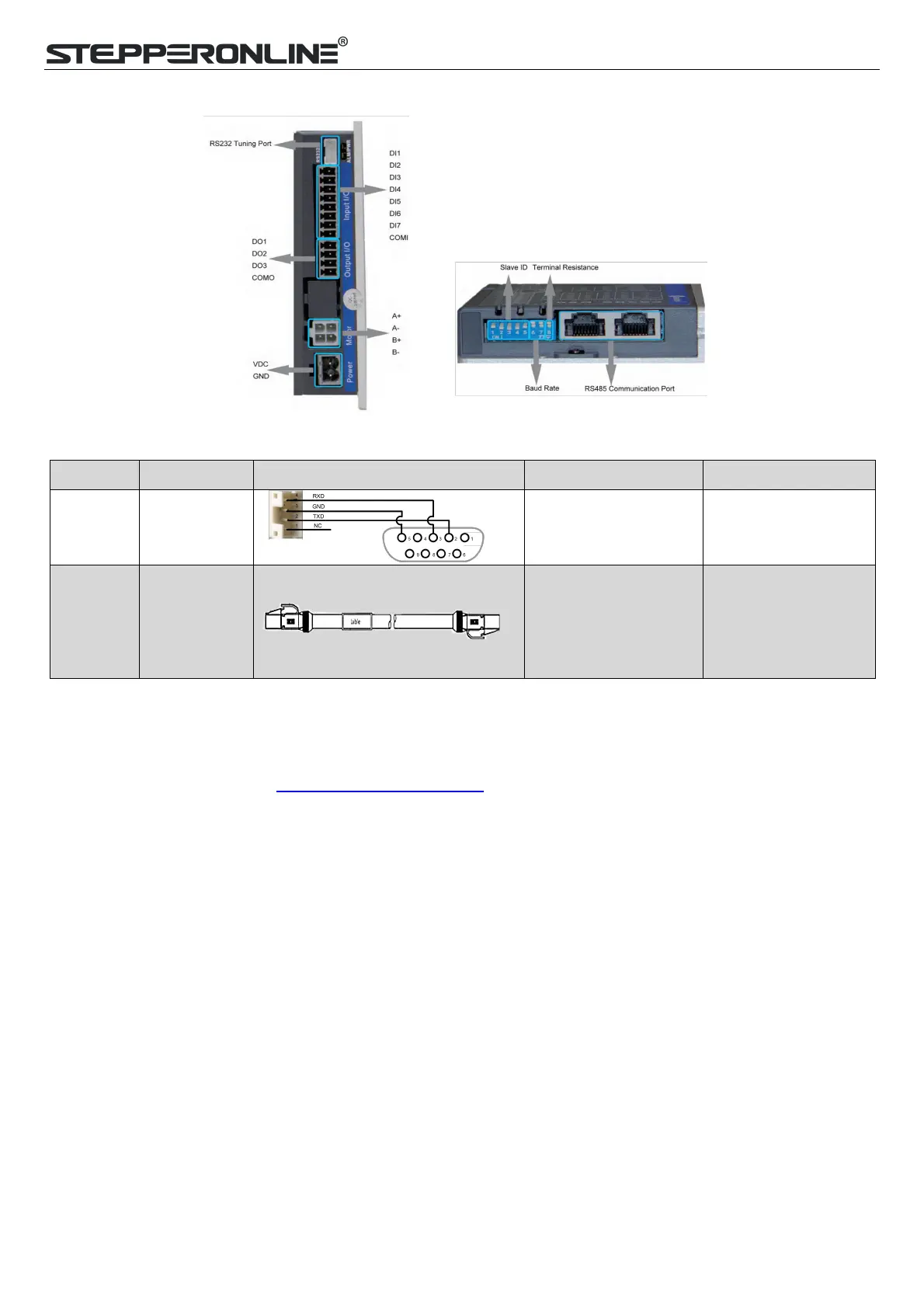

1.4.4 Parts description
1.4.5 Accessories Information
Name
Necessary
Description
Need to cost extra
Tuning
Cable
(1)
No
CABLE-PC-1 cable
Yes
Network
cable
(2)
Yes
(CABLE-TX*M*-BUS)
Optional length: 0.1m,
0.2m, 0.3m, 0.4m,
1m, 1.5m, 2m,
3m,5m,7m, 10m,15m,
20m
Yes
Note:
(1) Tuning cable is not necessary, but it is recommended to order.
(2) Network cable is necessary, but user can also buy shielded network cable through 3
rd
party.
(3) Motor connector model: 39012040, 39000038, Molex
2 Installation
2.1 Storage and Installation Conditions
2.1.1 Storage condition
 Correctly packaged and store in a clean and dry environment where direct sunlight is avoided.
 Store within an ambient temperature ranging from -20℃ to +65℃.
 Store within a relative humidity ranging from 40% to 90% and non-condensed.
 Avoid any type of exposure to corrosive gases.
2.1.2 Operating ambience conditions
 Temperature ranging from 0℃ to 50℃. The ambient temperature of drive for long-term reliability should be
under 40℃. Please install the drive in a well-ventilated area.
 Operation within a relative humidity ranging from 40% to 90% and non-condensed.
 Vibration lower than 0.15mm at a frequency of 10Hz-55Hz.
