StepperOnline RS485 User Manual

Modbus RS485 Stepper Drive User Manual
38
Path 10
off
on
off
on
on
Path 11
on
on
off
on
on
Path 12
off
off
on
on
on
Path 13
on
off
on
on
on
Path 14
off
on
on
on
on
Path 15
on
on
on
on
on
Note: The 4 digital inputs do not have to be configured as ADD0 - ADD3, it is configured according to the actual
required path motions. For example, if only Path0 is needed, refer to the above table, DI1-4 are not required to be
configured as ADD0 - ADD3, because they are are “off”, only one input needs to be configured as CTRG.
5.4.3 Other functions of PR
 Timing sequence of signal path

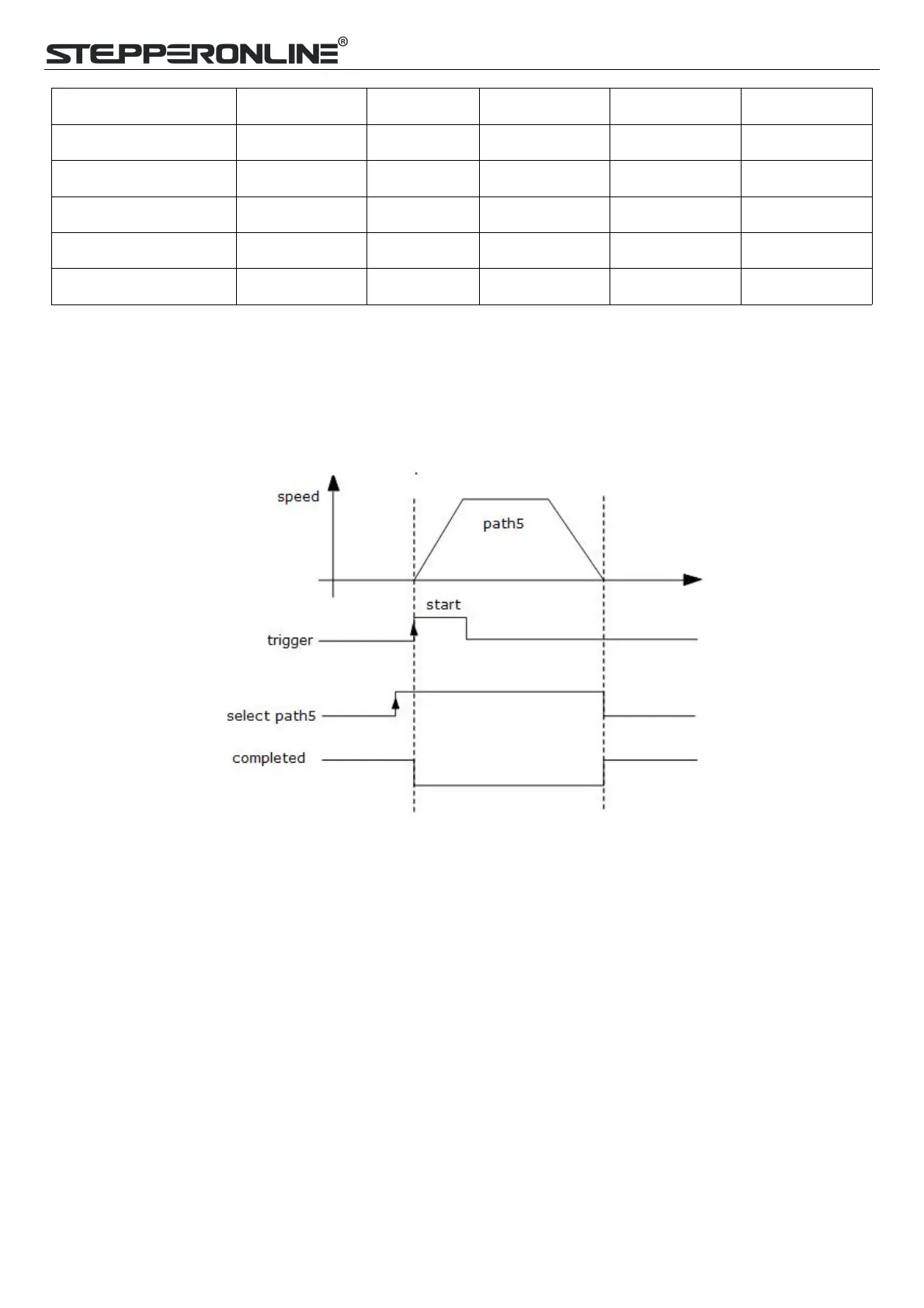

Single path sequence diagram
 5.5.3 Multi-segment Jump
For example: set paths 5 and 9, set path 5 to jump to path 9.
