Modbus RS485 Stepper Drive User Manual
7
Operating
Environment
Environment
Avoid dust, oil, fog and corrosive gases
Operating Temperature
0-50℃ (32 F – 122 F)
Storage Temperature
-20℃-65℃ (-4 F – 149 F)
Humidity
40-90%RH
Vibration
10-55Hz/0.15mm
Mount
Vertical or horizontal mounting
3.2 Wiring Instructions

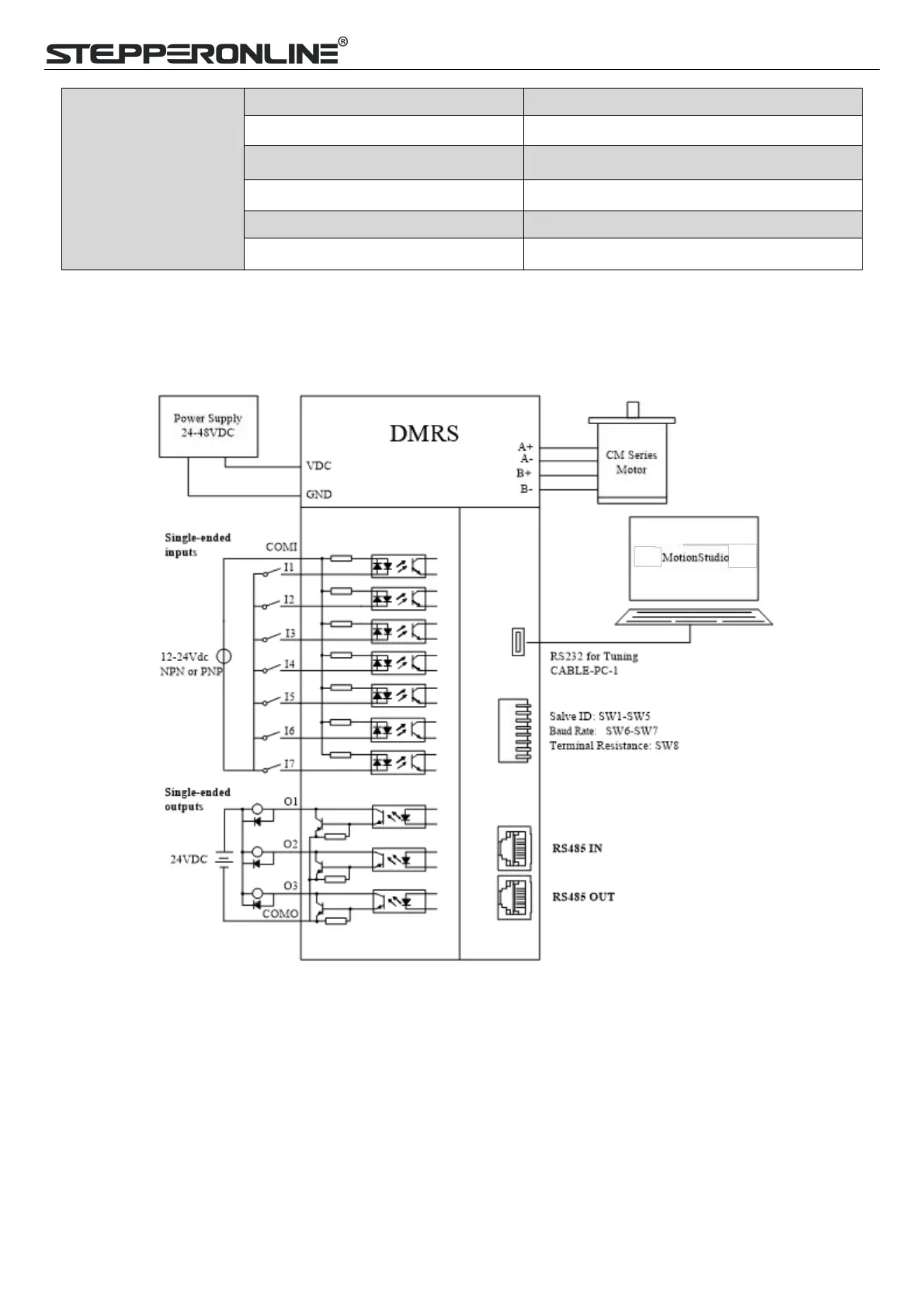

Figure 3.1 Wiring Instructions
Note:
(1) There are two RS485 communication ports above, one of them is input port which connects with master station
or previous slave, and the other is output port which connects with the following slave.
(2) Single-ended inputs I1, I2, I3, I4, I5, I6 and I7 connection types can be common-cathode and common-anode.
(3) Single-ended outputs connection type is common-anode.
