Modbus RS485 Stepper Drive User Manual
25

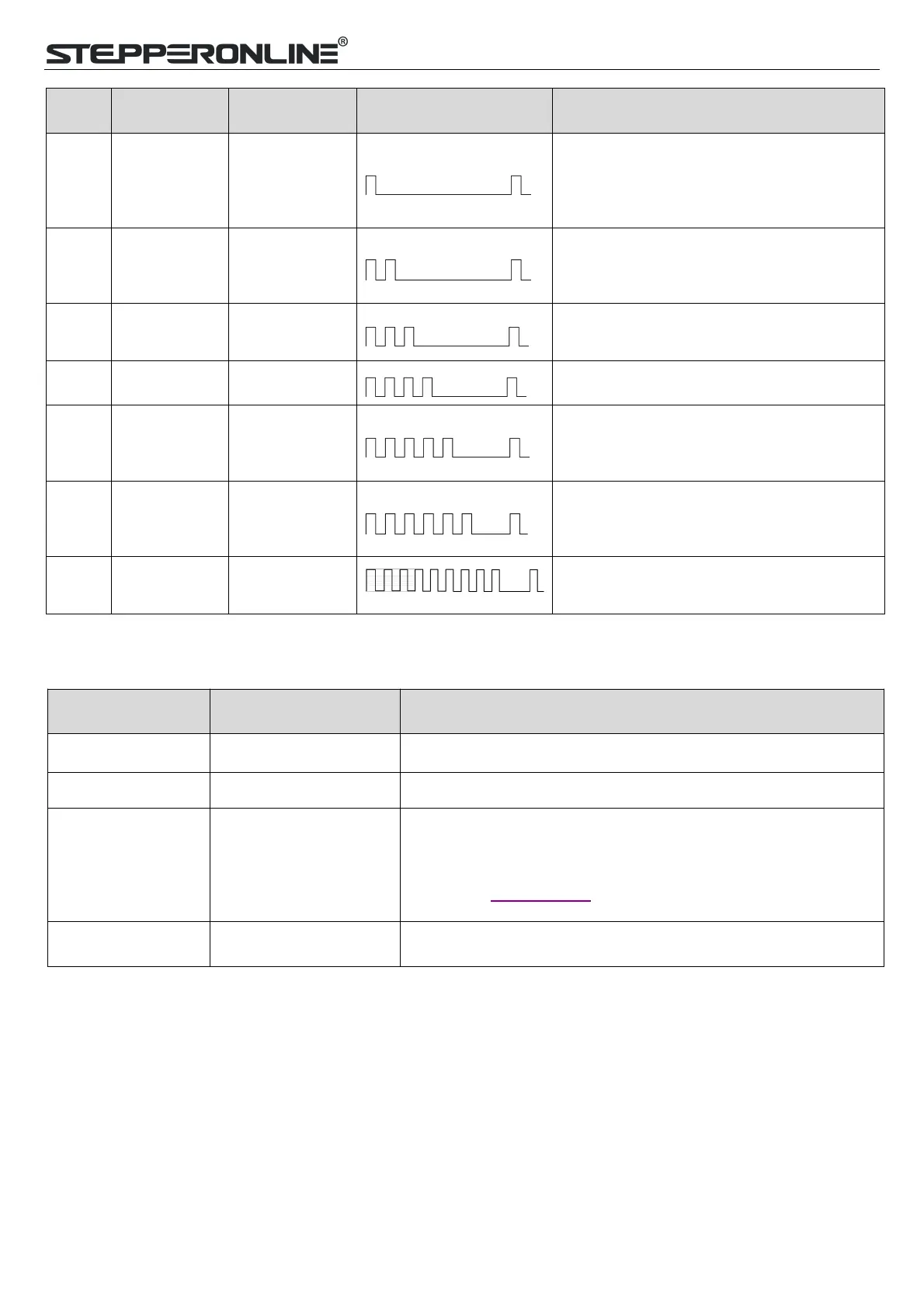

Error
code
Content
Red Light
Flash Times
Sequence wave of
RED LED
Trouble Shooting
0x01
Over current
1
1. Restart the drive;
2. If it still exists, check whether the motor
is short-circuited or not connected to the
motor;
0x02
Over voltage
2
1. Restart the drive;
2. If it still exists, check the voltage of
power supply;
0x40
Current
sampling
circuit error
3
1. Restart the drive;
2. If it still exists, the hardware failure
0x80
Shaft locking
error
4
1. Check whether the motor wire is broken
0x200
EEPROM
error
5
1. Connect the drive to STEPPERONLINE
software to reset parameters to the factory
2. If it still exists, the hardware failure
0x100
Auto tuning
error
6
1. Restart the drive;
2. If it still exists, disable auto-tuning by
0x01AB (Pr5.13).
-
Repeated
settings of
input function
9
4.4.3 Error Clear
Check the error via STEPPERONLINE MotionStudio
Current Error
Current happened error
Over current,over voltage,etc
History error
History happened
error .
Over current,over voltage,etc
Read error
Read Historical error .
Check the Historical happened error .
Clear current error
Current error
(1) It can clear over voltage error, but can not clear over current
error;
(2) There are two methods to clear the current alarm: one is via
STEPPERONLINE MotionStudio, and the second is via external
I/O,refer to Section 4.3.2.
(3) If the current error cannot be cleared, please check the drive
Clear history error
History error
All history error records can be cleared by STEPPERONLINE
MotionStudio
4.5 Register Mapping Continuous Read/Write Function
Address description 0x0F10-0x0F19. By writing the "address to be mapped" to 0x0F10-0x0F19, it is possible to set
the address mapping. The 10 consecutive mapped addresses are available for mapping discontinuous parameter
addresses.
