SPECTRE NANO OSDP
TM
© STid – MU_ULTRYS_V3.0.1_EN

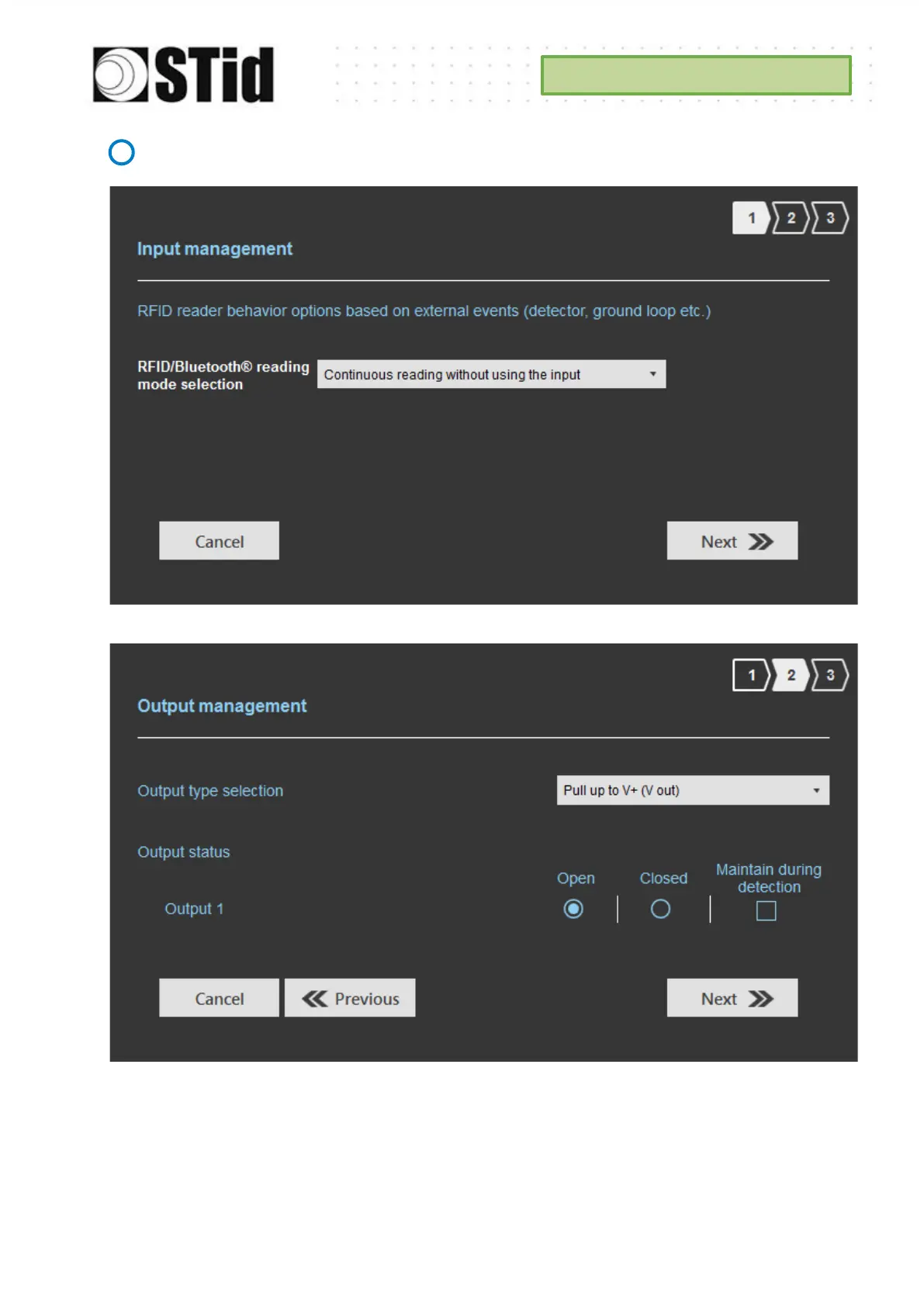

Input / output settings
The configuration of the outputs depends on the reading mode chosen.
Both types of output are « Pull up to V+ » or « Open drain ».
Status of outputs: select for each output the default state ‘Open’ or ‘Closed’ and if the state is
maintained during the detection process.
5
