288

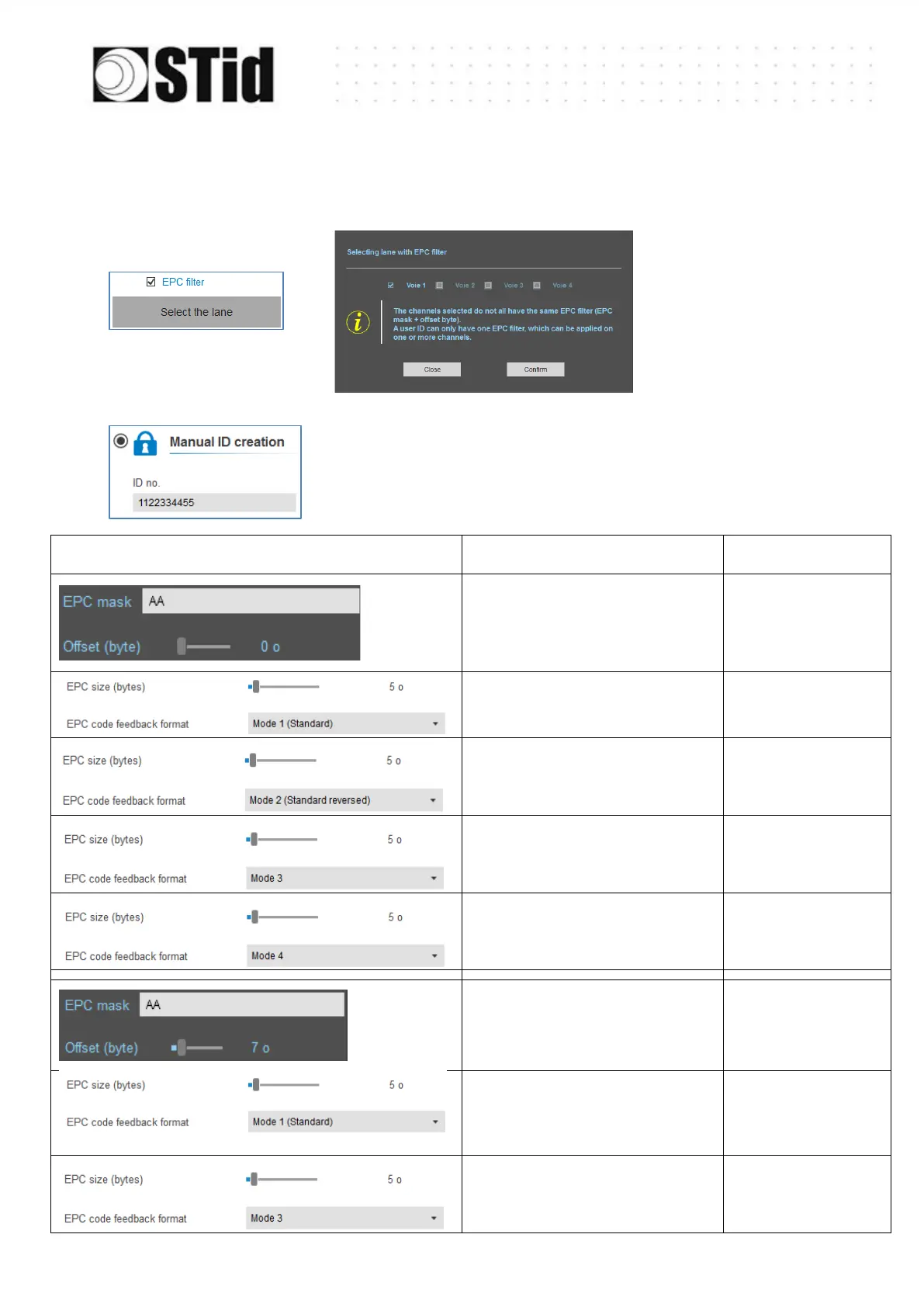

Using EPC filter and modes

Encoding the value 1122334455 on 5 bytes with EPC filter ‘AA’.

Settings

Value encoded by ULTRYS

Value ascended

by the Reader

AA0000000000001122334455

1122334455

AA0000000000001122334455

5544332211

AA2233445500000000000000

AA22334455

AA2233445500000000000000

55443322AA

00000000000000AA22334455

AA22334455

11223344550000AA00000000

1122334455
