SPECTRE ATX OSDP
TM
© STid – MU_ULTRYS_V3.0.1_EN
Input/ output

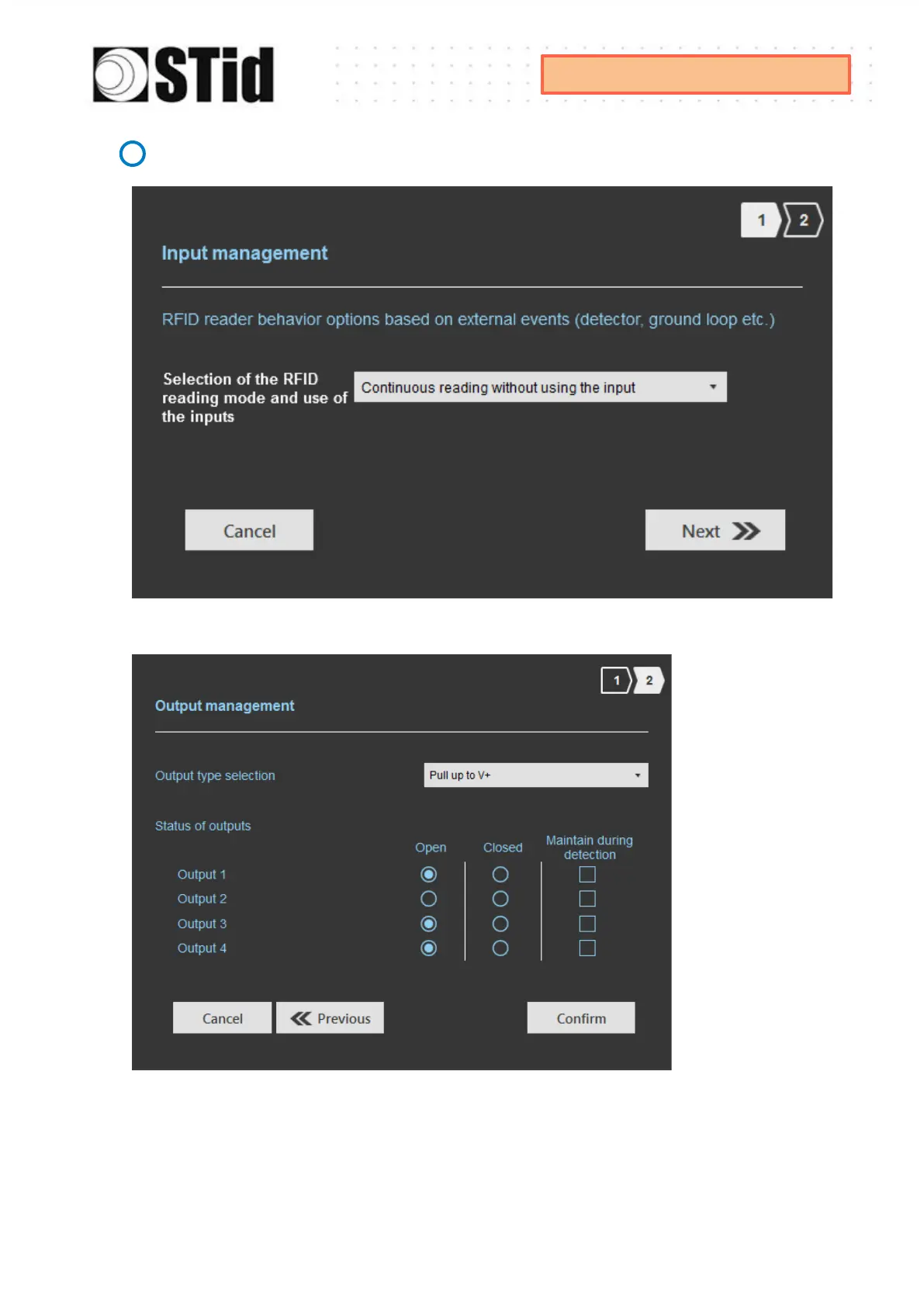

Select the reading mode, the output settings depend on this mode.
Both types of output are Pull up to V+ or Open drain.
Status of outputs: select for each output the default state ‘Open’ or ‘Closed’ and if the state is
maintained during the detection process.
