WORKSHOP MANUAL
MP 84/98 - MP 84/98 Hy

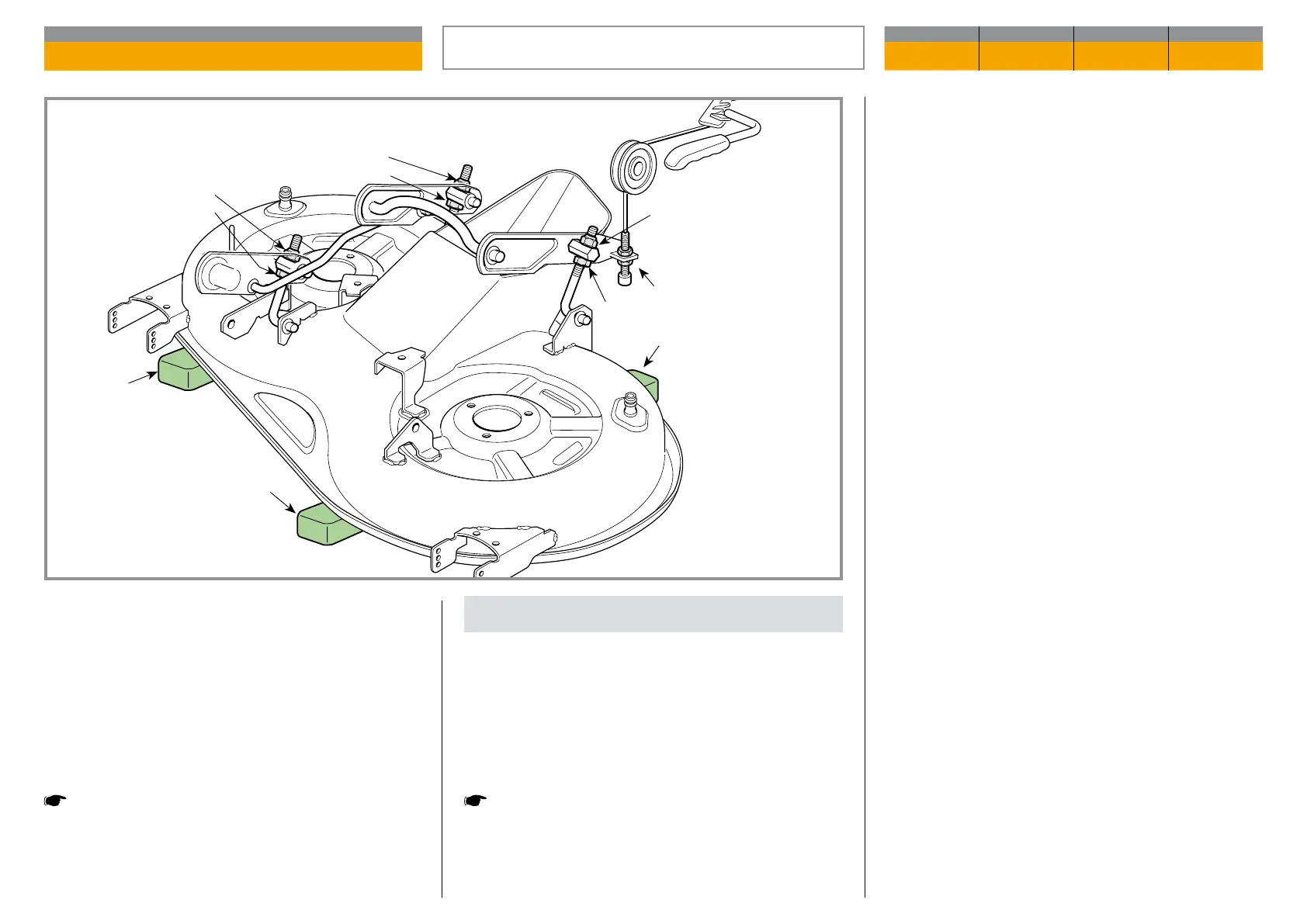

B) Adjusting the parallel across the cutting
deck
Any dierence in height from the ground between the
left and right sides of the deck can be compensated
by turning the two nuts (4 - 8) and locknuts (5 - 9) of
just the back rods.
Remember to tighten all the nuts and locknuts once
these adjustments have been made.
Reassemble the right and left side guards (if pro-
vided).
Turn the adjuster (3) until the control cable is taut.
Tighten the two right upper nuts (6 - 8) and the left up-
per nut (4) to the point where the deck just begins to
lift, then tighten the three locknuts (5 - 7 - 9).
Remember to tighten all the nuts and locknuts once
these adjustments have been made.
Reassemble the right and left side guards (if pro-
vided).
CHAPTER REVISION FROM ... PAGE
4.5 2 2018 2 of 2
