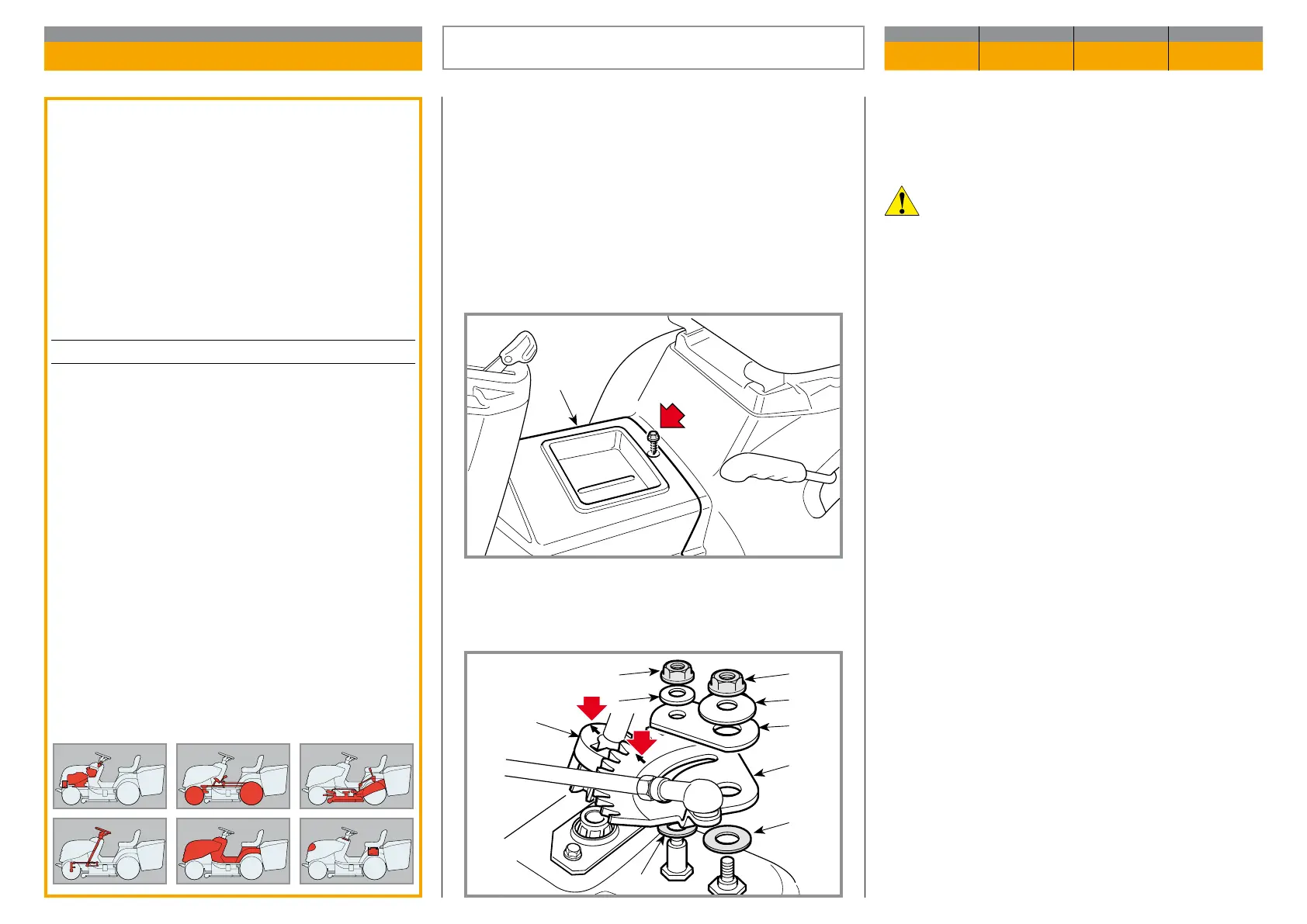

Stiga MP 84/98 - Steering Adjustments

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
Remove the ring gear (7) and t the two block wash-
ers (available as spare parts) (8) and (9) under it so
as to place it in a higher position with respect to the
pinion (10), reducing the gap between the teeth.
Reassemble the ring gear matching the two ref-
erences (⇒ ◁), punched on the ring gear (7) and on
the pinion (10), in the drive direction.
Reassemble the nuts (2) and (3), tightening them to
load the cup springs (4) and (5) as much as need to
en sure steering manageability, without creating ex-
ces sive play.
If the addition of a block (8) and another block (9) do
not eliminate the play between ring gear pinion teeths,
replace them since other block may not be ad ded.
Check that the steering play is not caused by the
slackening o of the tie-rod system and fully tighten
all the tie-rod and ball joint nuts.
If the play is due to the crown wheel/pinion pairing, the
position of the spacer, tted to lift the crown wheel and
reduce the gap between the teeth, must be changed.
Remove the inspection hatch (1).
Unscrew the nuts (2) and (3) and remove the two cup
washers (4) and (5) and the guide (6).
General informations:
Steering play must never be excessive in order
not to eect driving precision.
Related topics:
---
Tightening torques
3 Nut for ring gear ............................. 25 ÷ 30 Nm
CHAPTER REVISION FROM ... PAGE
4.6 0 2018 1 of 1
ADJUSTING THE STEERING PLAY
3
2
5
4
6
10
7
9
8
1
