WORKSHOP MANUAL
MP 84/98 - MP 84/98 Hy

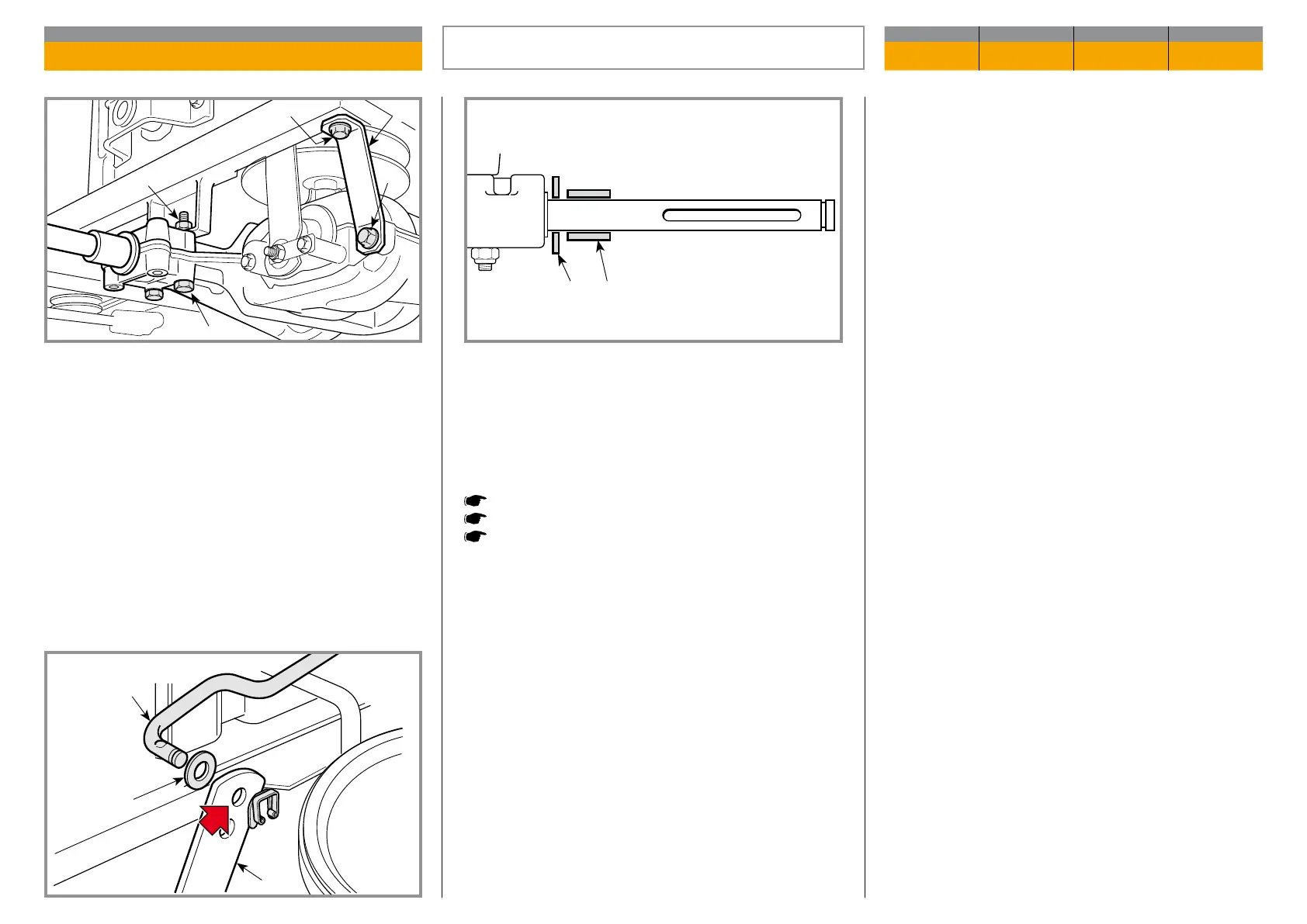

Loosen the screw (14) to give a minimum of move-
ment to the bracket (13) and undo the two screws
(16). Then carefully loosen the four nuts (17), holding
up the unit so that it does not fall.
To reassemble, reverse the order of the previous
operations, taking particular care with the self-tapping
screw (15) which, if not screwed in correctly, could
damage the threads inside so preventing it from
being fastened properly.
When connecting the rod (11) be sure to use the
uppermost hole in the lever (12) and replace the
washer (18).
REMOVAL OF THE REAR AXLE
Peerless MST 205-535 E
CHAPTER REVISION FROM ... PAGE
5.6 1 2018 2 of 2
Check that the spacers (19 - 20) are correctly tted to
the shafts, in the sequence given.
Reattach all the connections, and then ...
Ret the rear wheels.
Reassemble the rear of the conveyor.
Check the brake.
19 20
14
15
13
16
17
11
12
18
