WORKSHOP MANUAL
MP 84/98 - MP 84/98 Hy
REPLACEMENT OF THE SUPPORTS
AND SHAFTS OF THE BLADES
CHAPTER REVISION FROM ... PAGE
6.7 1 2018 3 of 3

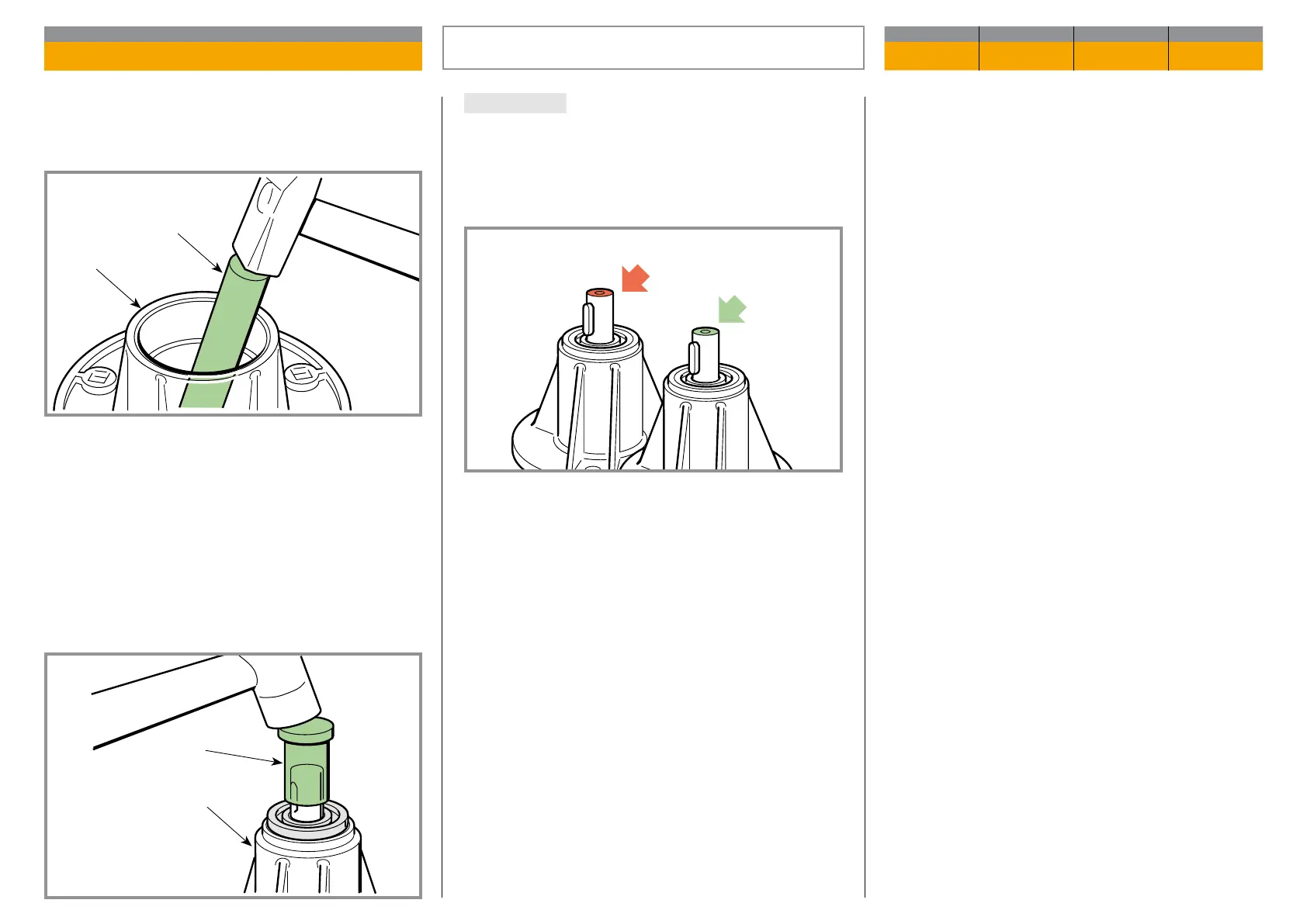

IMPORTANT The right and left shafts seem to be the
same, but can be dierentiated as follows:
– right shaft: red paint on the pulley side;
– left shaft: green paint on the pulley side.
Before retting the support assembly, check that the
se positions are correct.
Fit the ange supports onto the deck, fully tighte ning
the nuts (10).
The second bearing still in place must be removed by
hitting it from the inside of the ange using a 12 ÷ 15
mm diameter round bar (17).
On reassembling, rst put the shaft into the hole of
the lower bearing and insert this into the support. Fit
on the upper bearing and, using the special bush (18)
which works on the inner ring, hit it squarely with a
mallet until the bearing is fully driven home.
18
9
17
9
