Stiga MP 84/98 - Engine and Accelerator Repairs

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy

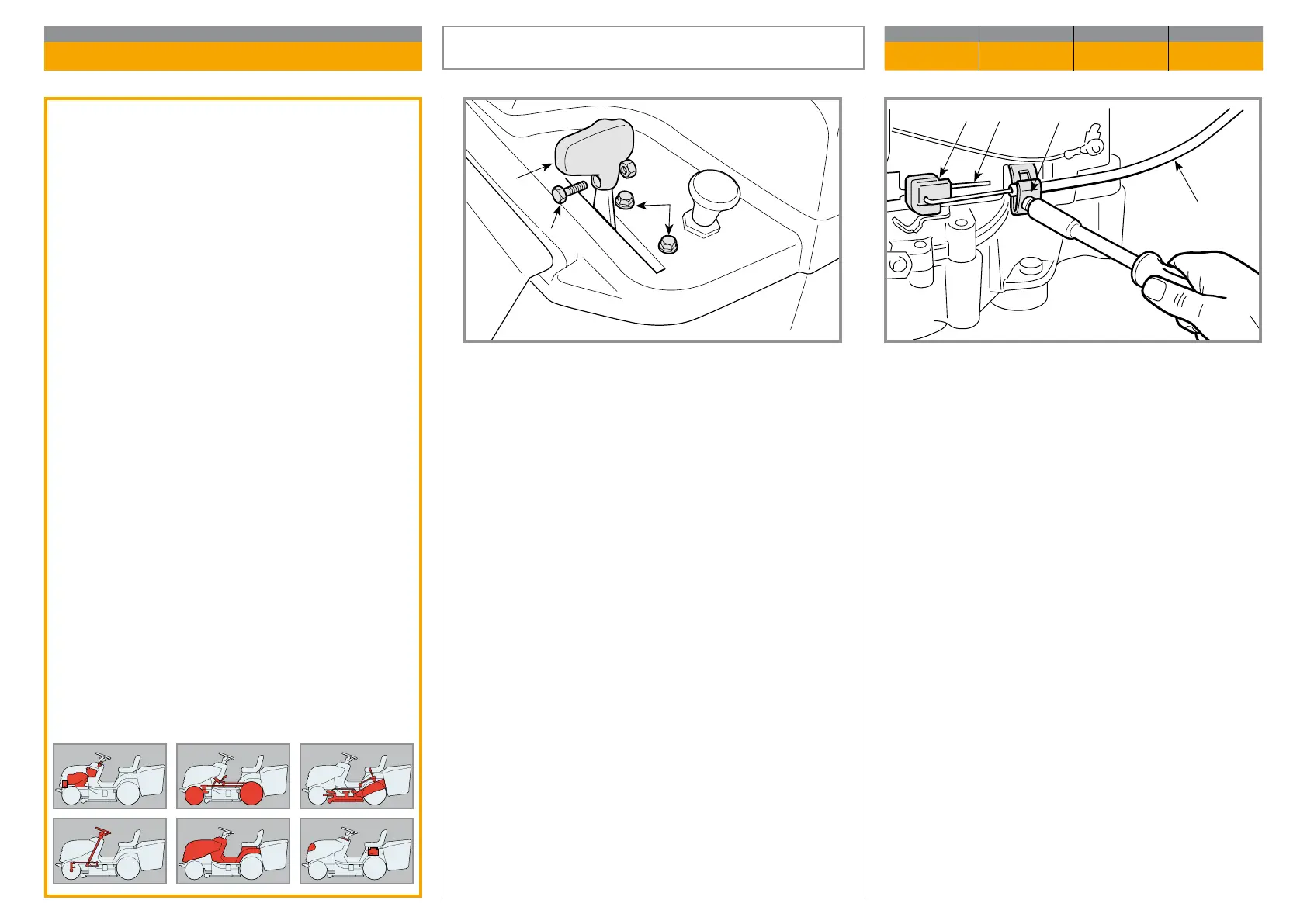

To assemble, put the accelerator lever in «MIN» and
connect the wire (6) terminal (5) to the slider (7).
Move the slider (7) to the specic «MIN» position for
each type of motor and indicated in the relevant in-
struction booklet. Then secure the wire (6) to the ter-
minal (4).
Unscrew the screw (1), take o the knob (2) and un do
the two screws (3) which hold the accelerator on the
dashboard.
From the motor side, loosen the terminal screw (4),
disconnect the wire (6) terminal (5) from the slider (7)
and remove the accelerator with the wire.
General informations

Related topics
---
REPLACEMENT OF THE ACCELERATOR AND
ADJUSTMENT OF THE CARBURETTOR
CHAPTER REVISION FROM ... PAGE
6.8 1 2018 1 of 1
7 4
6
5
2
3
1
