49MS 201, MS 201 C, MS 201 T, MS 201 TC

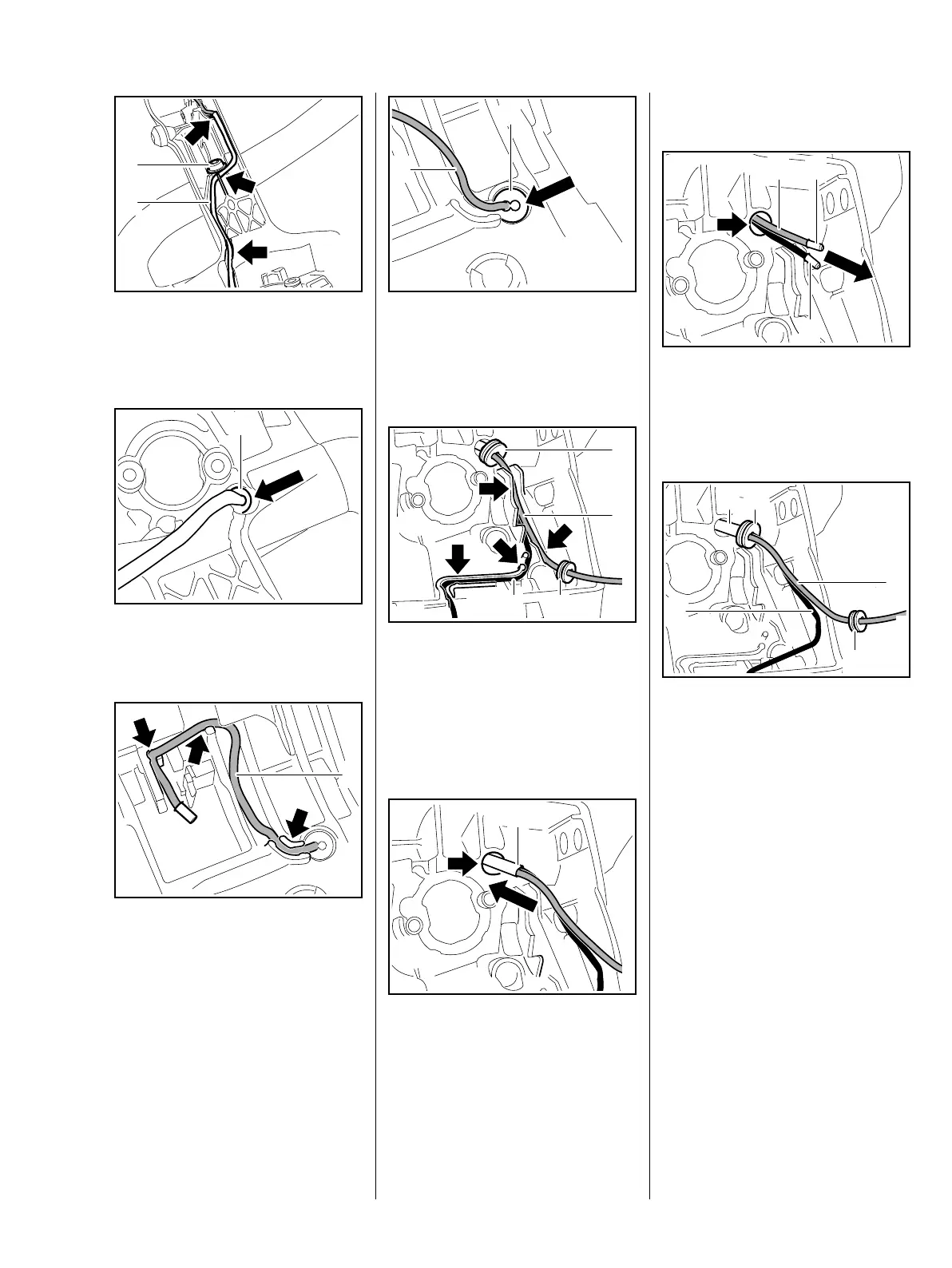

: Take out the screw (1) and pull
the wiring harness (2) out of the
guides (arrows).
: Press out the grommet (1) in
direction of carburetor box.
: Pull the ground wire (1) out of the
guides (arrows).
7013RA358 TG
1
2
7013RA359 TG
1
7013RA389 TG
1
: Press out grommet (1) in
direction of carburetor box and
pull out ground wire (2) in the
same direction.
: Pull the short circuit wire (1) and
ground wire (2) out of the guides
(arrows).
: Pull the grommets (3) and (4) off
the wiring harness.
: Pull the wiring harness (1) out
through the hole (arrow).
– Check the wiring harness and
replace if necessary.
7013RA390 TG
1
2
2
7013RA391 TG
1
3
4
7013RA392 TG
1
Installing
: Thread the wiring harness (1),
connector sleeves (2) and (3)
first, through the hole (arrow) in
the handle housing.
: Push the grommet (1) onto the
short circuit wire (2) and ground
wire (3) until it locates against the
protective tube (4).
: Push the grommet (5) onto the
ground wire (3).
7013RA393 TG
1 2
3
3
7013RA394 TG
2
4
5
1
