50 MS 201, MS 201 C, MS 201 T, MS 201 TC

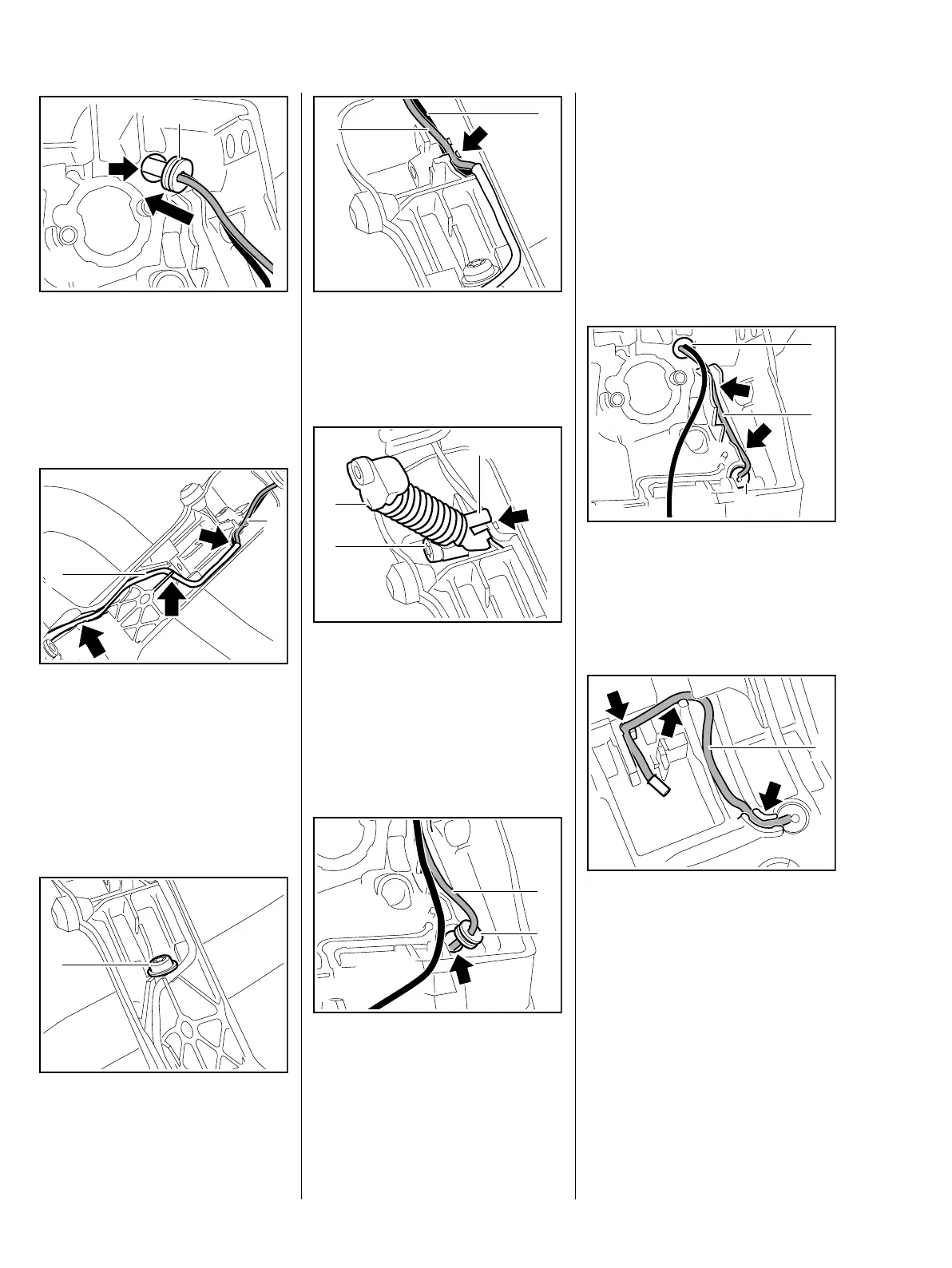

– Coat grommet with STIHL press
fluid, b 14
: Fit the grommet (1) in the hole
(arrow) and make sure it is
properly seated.
– If necessary, push the wiring
harness in direction of grommet
until protective tube locates
properly.
: Press the wiring harness (1) with
insulating tube (2) into the guides
(arrows).
: Insert and tighten down the
screw (1) firmly – the wiring
harness is held in position.
7013RA395 TG
1
7013RA396 TG
2
1
7013RA397 TG
1
: Press the short circuit wire (1)
and ground wire (2) into the guide
(arrow) – the short circuit wire
must be under the ground wire.
: Position the AV spring (1) so that
the lug (2) engages above the
guide (arrow).
: Insert and tighten down the
screw (3) firmly – check that
wires are not pinched.
: Push the ground wire (1) through
the hole (arrow).
2
7013RA398 TG
1
7013RA399 TG
3
1
2
2
7013RA427 TG
1
– Coat grommet with STIHL press
fluid, b 14
: Fit the grommet (2) in the hole
(arrow) and make sure it is
properly seated.
Use punch-down
tool 5910 890 4000 to press the
wires into the guides.
: Starting at the upper
grommet (2), press the ground
wire (1) into the guide (arrows)
and thread it through
grommet (3) until it lies flat.
– Turn the handle housing over.
: Press the ground wire (1) into the
guide (arrows) and thread it
through the opening in the handle
housing.
1
7013RA428 TG
2
3
7013RA389 TG
1
