Stihl Ms 201 User Manual

83MS 201, MS 201 C, MS 201 T, MS 201 TC
Models with manual fuel pump

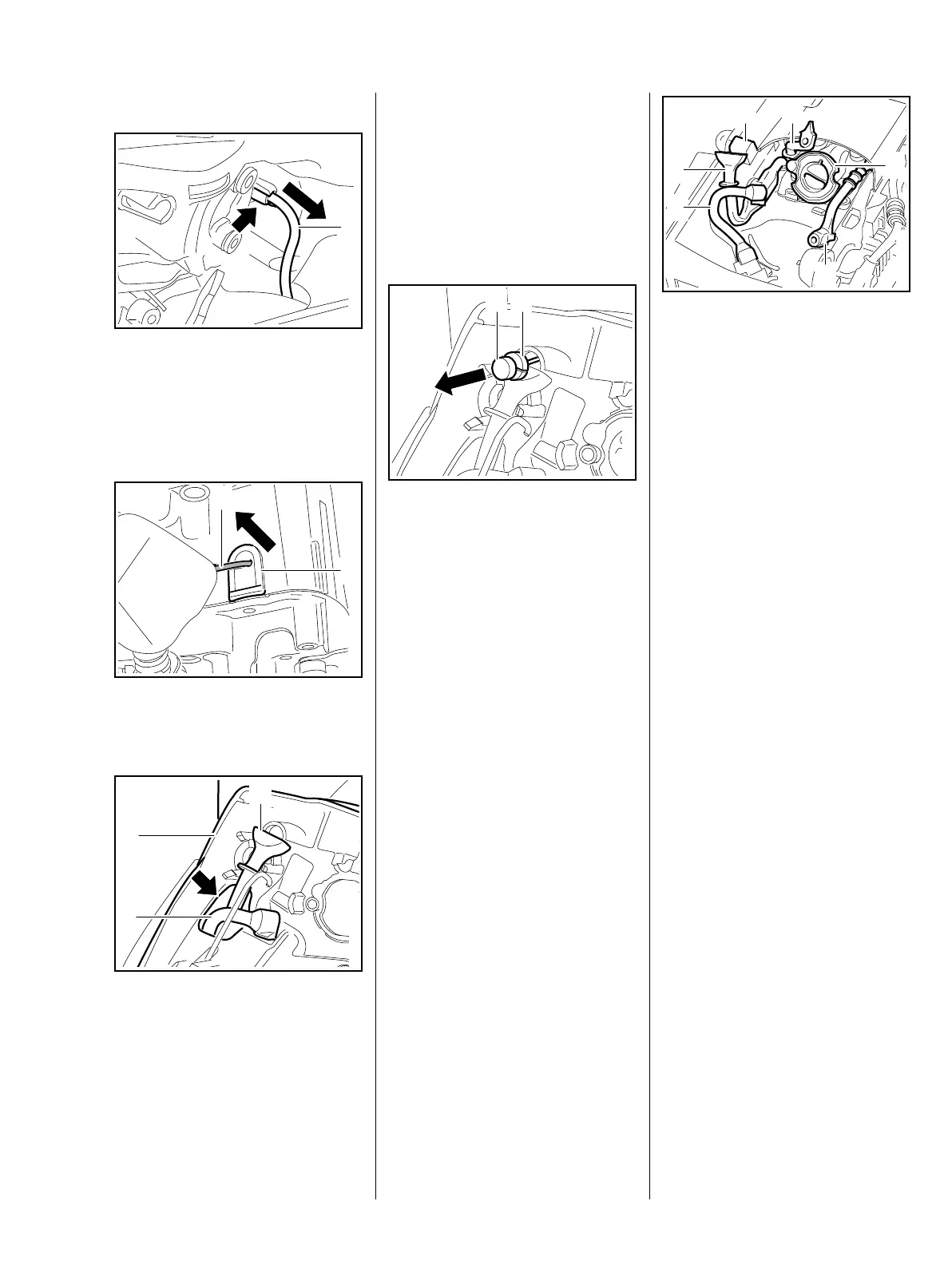

: Pull the fuel suction hose (1) out
of its seat (arrow) in the handle
housing.
All models
: Pry out the grommet (1) and pull
out the wiring harness (2).
: Lift the handle housing (1) a little
and pull the tank vent hose (2)
and fuel suction hose (3) through
the opening (arrow).
7013RA277 TG
1
2
7013RA278 TG
1
2
7013RA279 TG
1
3
– Remove and inspect the handle
housing and replace it if
necessary.
If handle housing is new, check
components of old housing and
transfer them to the new handle
housing where possible.
: Push out the retainer (1) and pull
off the stop buffer (2).
– Inspect AV spring and transfer if
serviceable, b 9.2.1
– Inspect handlebar and transfer if
serviceable, b 9.3
– Check the wiring harness and
contact spring and transfer if
serviceable, b 7.6.2, b 7.6.5
– Check the lockout lever and
throttle trigger and transfer if
serviceable, b 10.2
– Check the choke and throttle rods
and transfer if serviceable,
b 10.3.1
– Check switch shaft and transfer if
serviceable, b 10.1.1
7013RA280 TG
1 2
: Check the tank vent hose (1) and
replace if necessary, b 12.9
: Check the impulse hose (2) and
replace if necessary, b 12.8.1
: Check the stop buffer (3) and
replace if necessary, b 9.5
: Check the intake manifold (4),
replace if necessary, b 12.8
: On versions with a manual fuel
pump, check the fuel hose (5)
and replace if necessary,
b 12.10.3
: Install a new fuel suction
hose (6), b 12.10.2
Installing
Contact spring, wiring harness, stop
buffer, throttle and lockout levers,
switch shaft, choke and throttle rods
are installed.
Place handle housing, without AV
spring and handlebar, in position.
This simplifies installation of the fuel
hose (where applicable) and
impulse hose.
2
7013RA281 TG
1
6
3 5
4
