84 MS 201, MS 201 C, MS 201 T, MS 201 TC

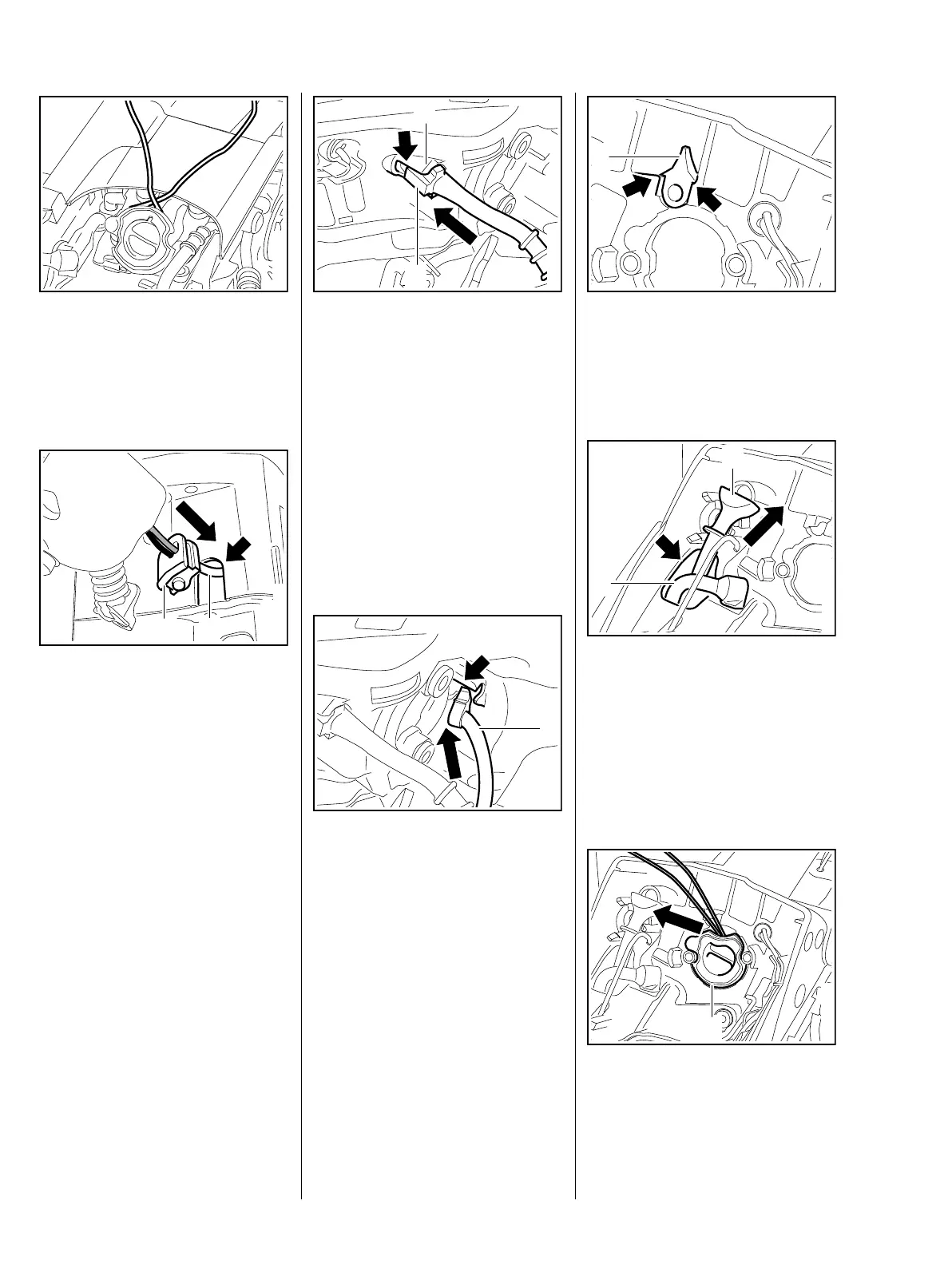

– Coat manifold flange with STIHL
press fluid, b 14
: Wind a piece of string around the
manifold flange.
: Push the grommet (1) in direction
of crankcase until it butts against
the protective tube.
: Thread the wiring harness (2)
through the opening (arrow).
7013RA282 TG
7013RA283 TG
1
2
– Coat impulse hose with STIHL
press fluid, b 14
: Push the impulse hose (1) into its
seat (2) as far as stop so that the
web engages the groove in the
hose and the straight face is
against the opening (arrow).
When assembling remaining parts,
make sure the impulse hose stays
in its seat.
Models with manual fuel pump
– Coat the fuel suction hose with
STIHL press fluid, b 14
: Push the fuel suction hose (1),
tab first, into its seat (arrow) in the
handle housing.
7013RA284 TG
1
2
7013RA285 TG
1
Notches in sides of fuel suction
hose's tab (1) must locate on the
edges (arrows).
All models
: Thread the tank vent hose (1)
and fuel suction hose (2) through
the opening (arrow).
– Pass the ends of the string
through the hole in the handle
housing and position the handle
housing against the manifold.
: Pull the manifold (1) into position
and remove the string.
7013RA286 TG
1
1
7013RA287 TG
2
7013RA288 TG
1
