85MS 201, MS 201 C, MS 201 T, MS 201 TC

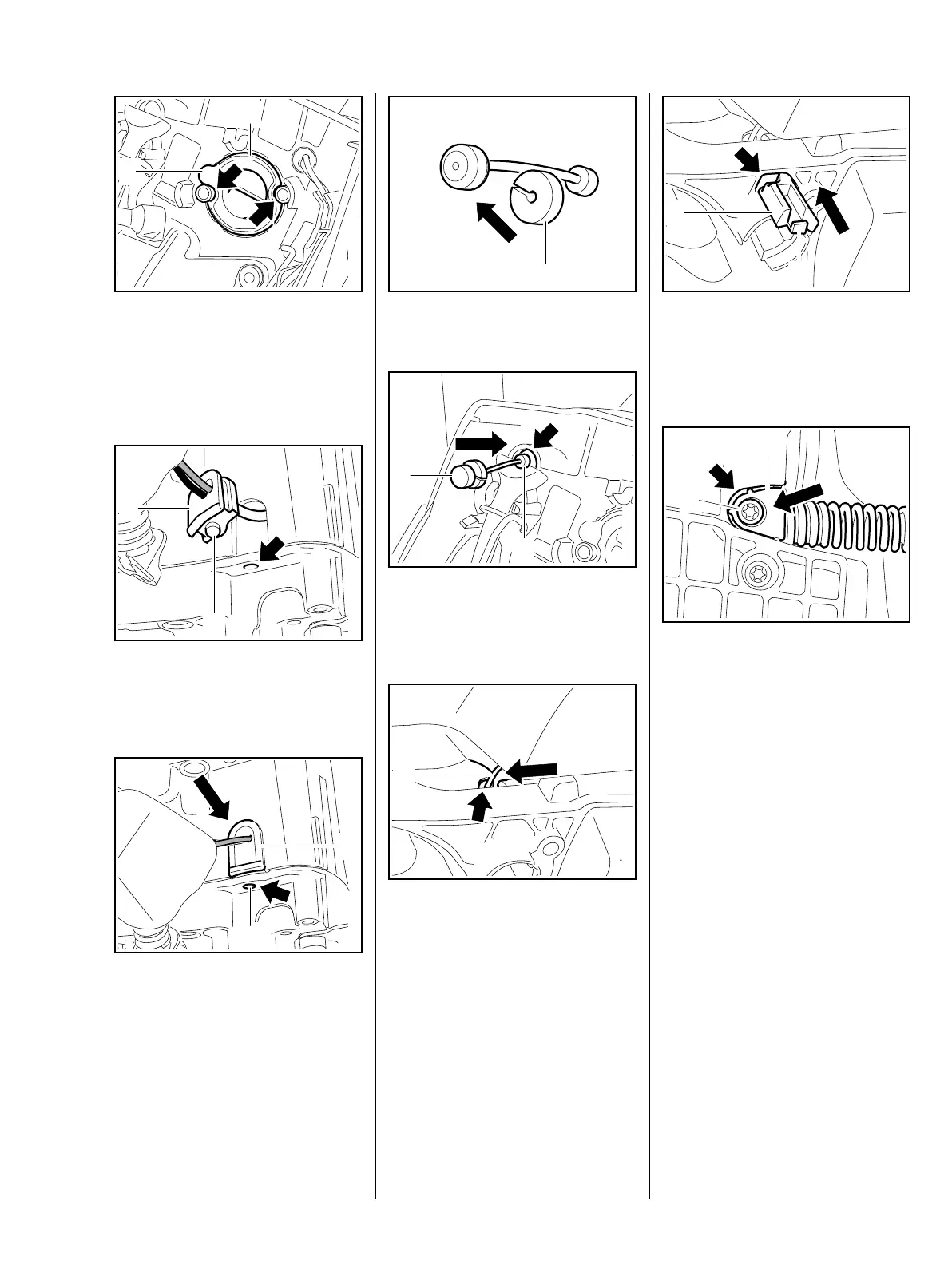

: Position the manifold flange (1)
so that the recesses (arrows)
locate against the screw sleeves
and the tab (2) is seated in the
recess.
: Position the grommet (1) so that
the peg (2) faces the hole
(arrow).
– Coat grommet with STIHL press
fluid, b 14
: Push the grommet (1) into the
opening (arrow) until it is properly
seated and the peg (2) is firmly
located in the hole.
1
7013RA289 TG
2
7013RA290 TG
1
2
2
7013RA291 TG
1
: Fit the stop buffer (1).
: Push the retainer (1), small
nipple (2) first, through the hole
(arrow).
: Attach the retainer (1) to the slot
(arrow) and push it in direction of
chain as far as stop.
: Hold the retainer (1) in that
position.
7013RA292 TG
1
7013RA293 TG
1
2
7013RA294 TG
1
: Position the clamping block (1)
with the lug (2) facing outwards,
then push it into the seat (arrow)
as far as stop.
: Push the bearing plug (1) into its
seat (arrow) on the underside of
the machine.
: Coat the screw (2) with Loctite, fit
it and tighten it down firmly, b 14
7013RA295 TG
1
2
1
7013RA083 TG
2
