24 MS 461, MS 461-R

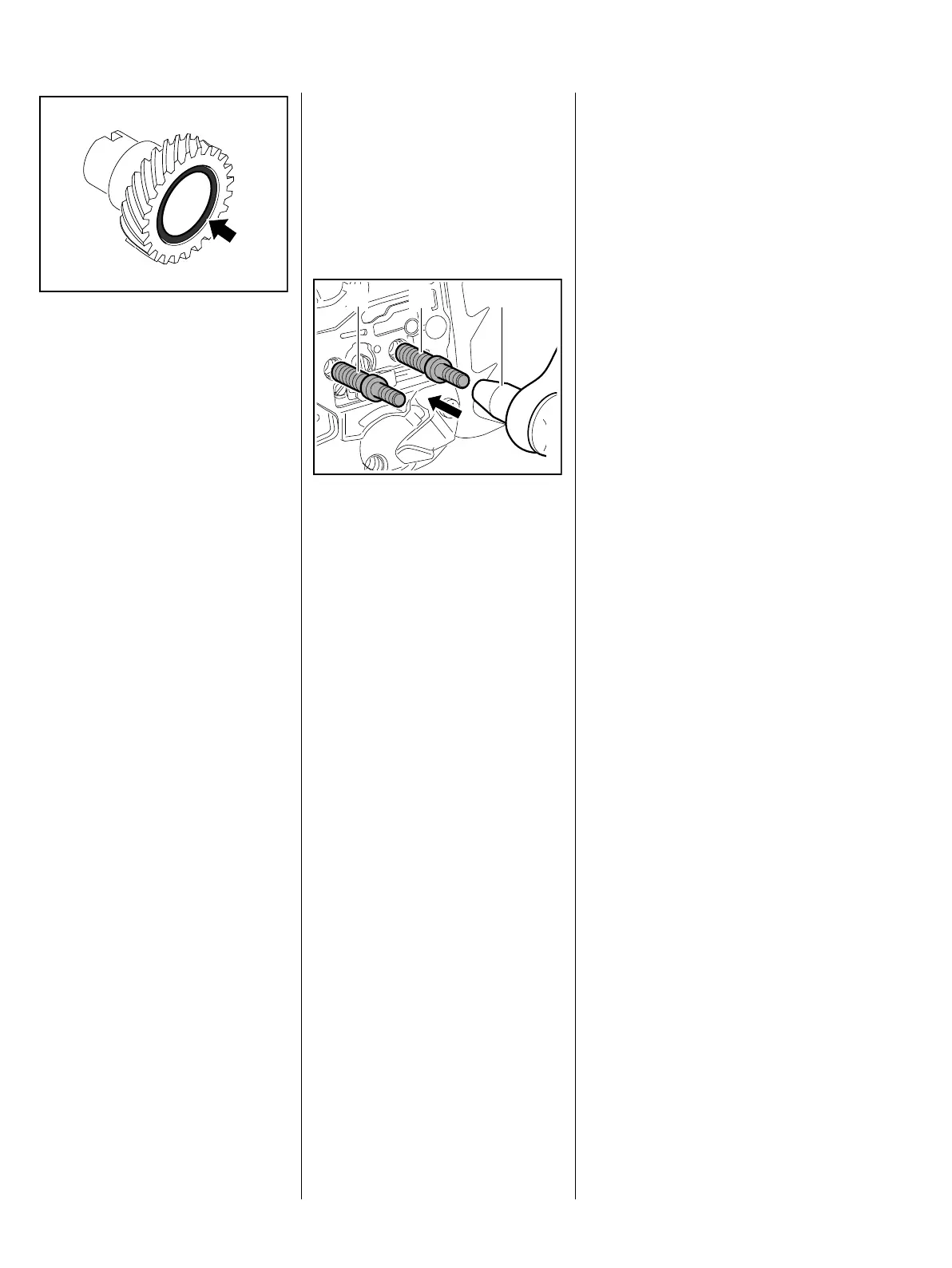

: Fit the O-ring in the spur gear
recess (arrow).
– Clean all disassembled parts,
b 15
– Lubricate the threads, gears and
O-ring with STIHL grease, b 15
– Reassemble in the reverse
sequence.
3443RA466 TG
5.7 Bar Mounting Studs
– Remove the side plate, b 5.2
– Use stud puller 5910 893 0501 to
unscrew collar studs from
crankcase.
: Before installing, coat the
threads (1) of the collar studs
with Loctite, b 15
: Use stud puller (2)
5910 890 0501 to fit and tighten
down the collar studs (1).
– Reassemble all other parts in the
reverse sequence.
3443RA060 TG
1
21

Stihl MS 461 Specifications

General

Motor type	2-stroke motor
Chain gauge	1.6 mm
Chain pitch	3/8 \
Automatic oiling	Yes
Oil tank capacity	0.325 L
Fuel tank capacity	0.8 L
Engine displacement	76.5 cm³
Engine power	6 hp
Power source	Gasoline

Weight and Dimensions

Weight	6700 g
