66 MS 461, MS 461-R
9.2.2 Handlebar with Heating
The handlebar on this version is
equipped with a heating system –
therefore, the electrical wires have
to be disconnected as described
below.
– Troubleshooting, b 13.8.1
– Remove the shroud, b 6.4
– Remove the rewind starter,
b 8.2
– Remove the ignition module,
b 7.2
– Remove the throttle rod, b 10.3
– Remove the carburetor, b 12.4
– Remove the lockout lever,
b 10.2
– Remove the tank housing,
b 12.9.3

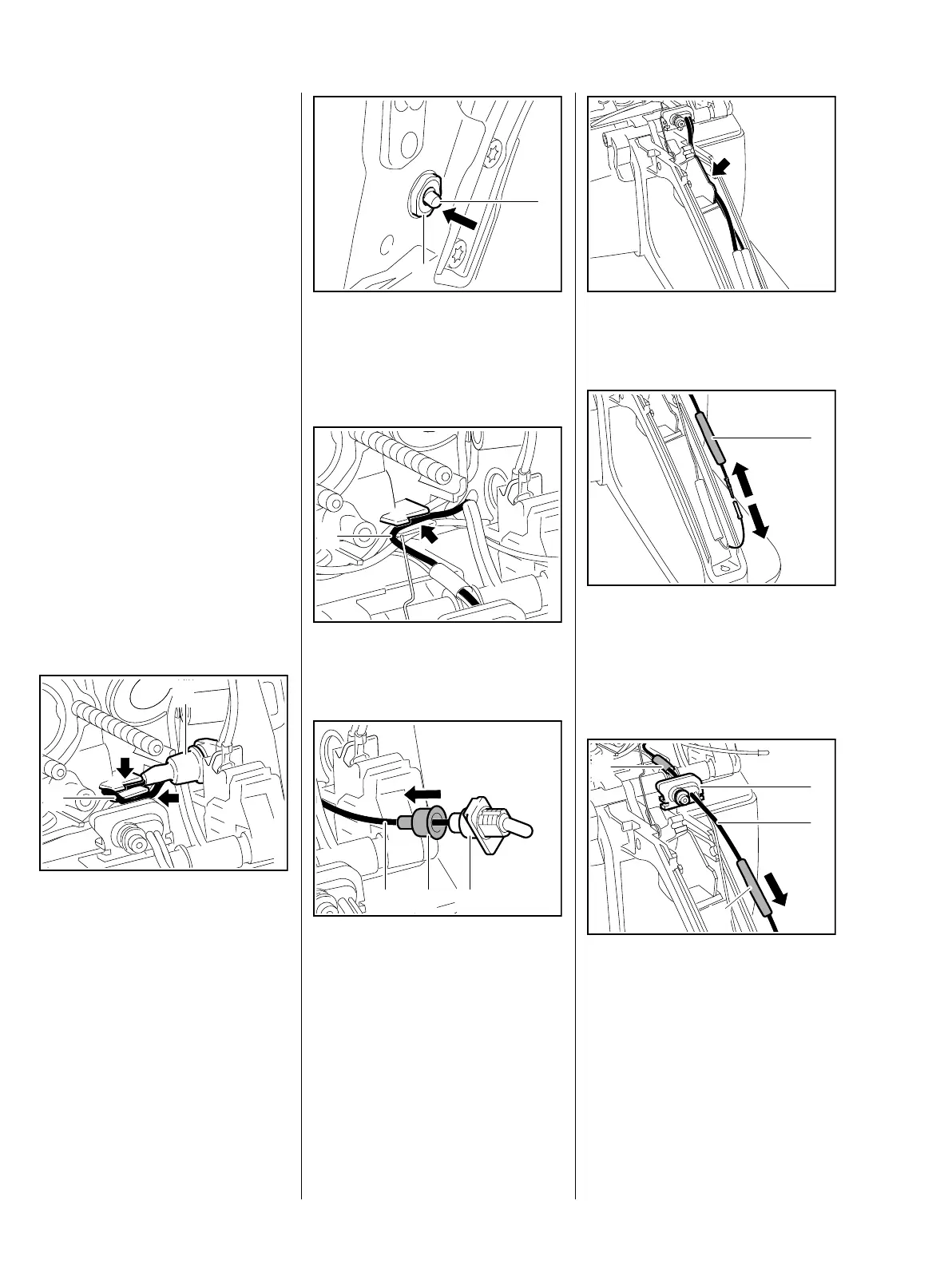

: Pull wire (1) of heater switch (2)
out of the guides (arrows).
3443RA234 TG
1
2
: Unscrew the nut (1), remove the
washer and push the heater
switch (2) out in direction of
carburetor box.
: Pull the thick black wire (1) out of
the guide (arrow).
: Pull the grommet (1) off the
heater switch (2) and disconnect
wire (3) (connector sleeve).
– Pull the grommet off the wire.
3443RA235 TG
1
2
3443RA359 TG
1
3443RA360 TG
1 23
: Pull the wires out of the guide
(arrow).
: Push insulating tube (1) of thick
black wire in direction of
handlebar heating element and
separate the pin and socket
connector.
: Pull off the insulating tube (1).
: Pull the thick black wire (2) in
direction of handlebar heating
element and out of grommet (3)
and protective tube (4).
– Take out all 4 handlebar
mounting screws, b 9.2
3443RA236 TG3443RA361 TG
1
3443RA362 TG
1
2
3
4
