30 MS 461, MS 461-R

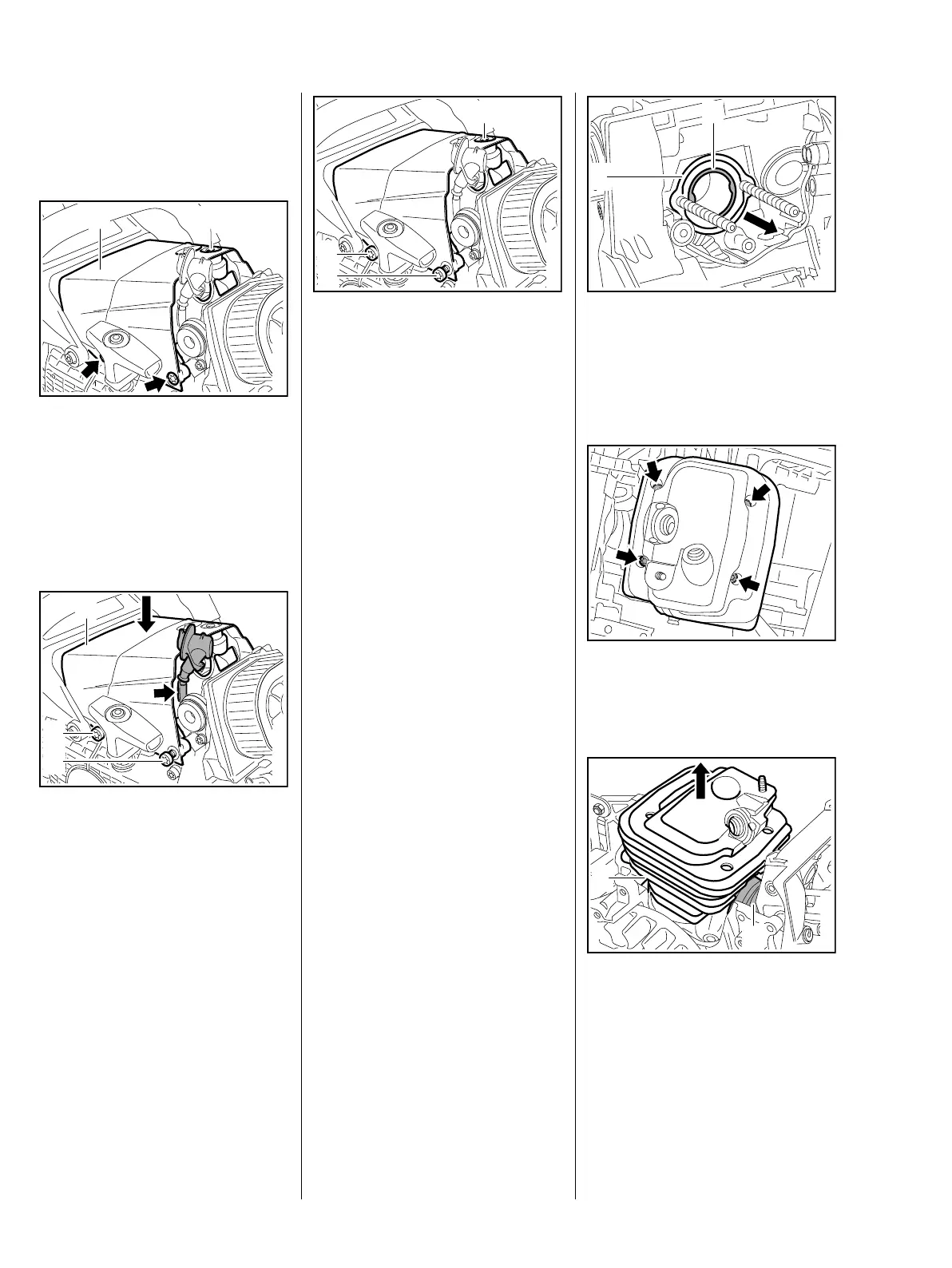

6.4 Shroud
– Remove the spark plug.
: Loosen the screws (arrows) –
captive screws.
: Unscrew the slotted nut (1) and
remove the shroud (2).
Installing
: Pull out the screws (1).
: Position the shroud (2) so that
the ignition lead with its insulating
tube locates in the guide (arrow).
3443RA077 TG
12
2
3443RA082 TG
1
1
: Fit the slotted nut (1) and tighten
it down firmly.
: Fit the screws (2) and tighten
them down firmly.
– Reassemble all other parts in the
reverse sequence.
6.5 Cylinder
Before removing the cylinder,
decide whether or not the
crankshaft has to be removed as
well.
Cylinder installed
To remove the flywheel and clutch,
the crankshaft has to be blocked by
inserting the locking strip in the
spark plug hole.
Cylinder removed
To remove the flywheel and clutch,
the crankshaft has to be blocked by
resting the piston on the piston
support (special tool).
– Remove the shroud, b 6.4
– Remove the rewind starter,
b 8.2
– Remove the filter base, b 12.3
– Remove the carburetor, b 12.4
– Remove the muffler, b 6.1
– Remove the decompression
valve, b 6.9
3443RA083 TG
1
2
2
: Remove the washer (1) and
sleeve (2).
Push out the manifold flange in the
direction of the cylinder.
: Take out the cylinder base
screws through the holes
(arrows).
: Carefully lift the cylinder (1)
away, pushing the manifold
flange (2) out of the tank housing
at the same time.
1
2
3443RA084 TG
3443RA085 TG
1
2
3443RA086 TG
