65MS 461, MS 461-R

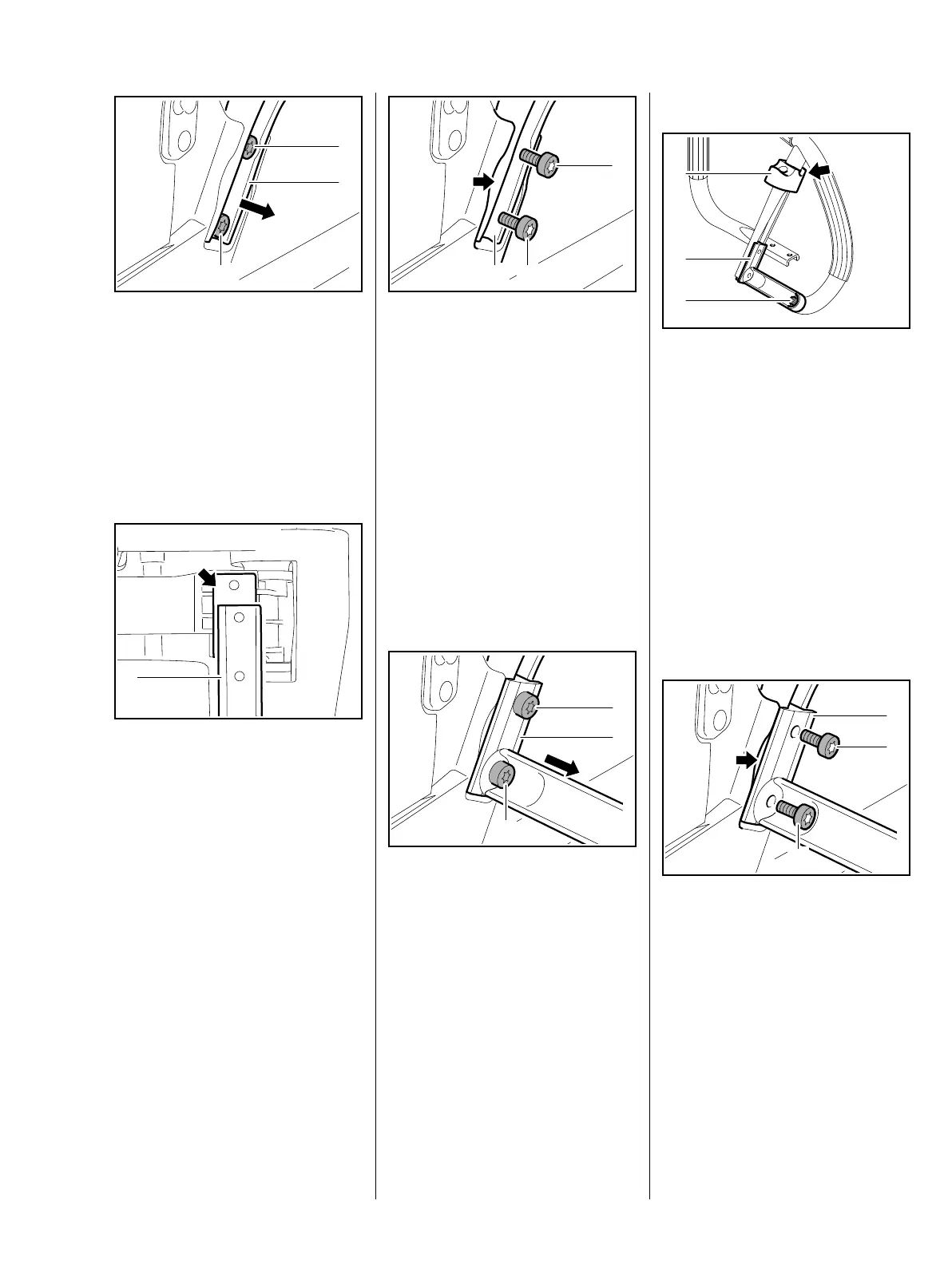

: Take out the screws (1) and
remove the handlebar (2).
Installing
– Coat handlebar mounting screws
with threadlocking adhesive,
b 15
: Position handlebar (1) in its seat
(arrow) on the underside of the
tank housing and fit the screws.
3443RA352 TG
1
1
2
3443RA353 TG
1
: Position the handlebar (1) in its
seat (arrows) on the side of the
machine.
: Fit the screws (2)
– Tighten down all 4 screws firmly.
9.2.1 Wrap Around Handlebar
on Rescue Saw
– Remove the screws from the
underside of the tank housing,
b 9.2
: Take out the screws (1) and
remove the handlebar (2).
– Check individual parts, replace if
necessary
3443RA354 TG
1 2
2
3443RA355 TG
1
1
2
Installing
– Use STIHL press fluid to make
installation easier, b 15
: Push retainer (1) into place so
that the recess (arrow) engages
the handlebar.
: Fit the bracket (2), insert the
screw (3) and tighten it down
firmly.
– Position handlebar in its seat
(arrow) on the underside of the
tank housing and fit the screws
b 9.2
: Position the handlebar (1) in its
seat (arrows) on the side of the
machine.
: Fit the screws (2)
– Tighten down all 4 screws firmly.
3443RA357 TG
3
2
1
3443RA358 TG
1
2
2
