Stihl MS 461 - Wiring Harness Removing and; Installing

47MS 461, MS 461-R

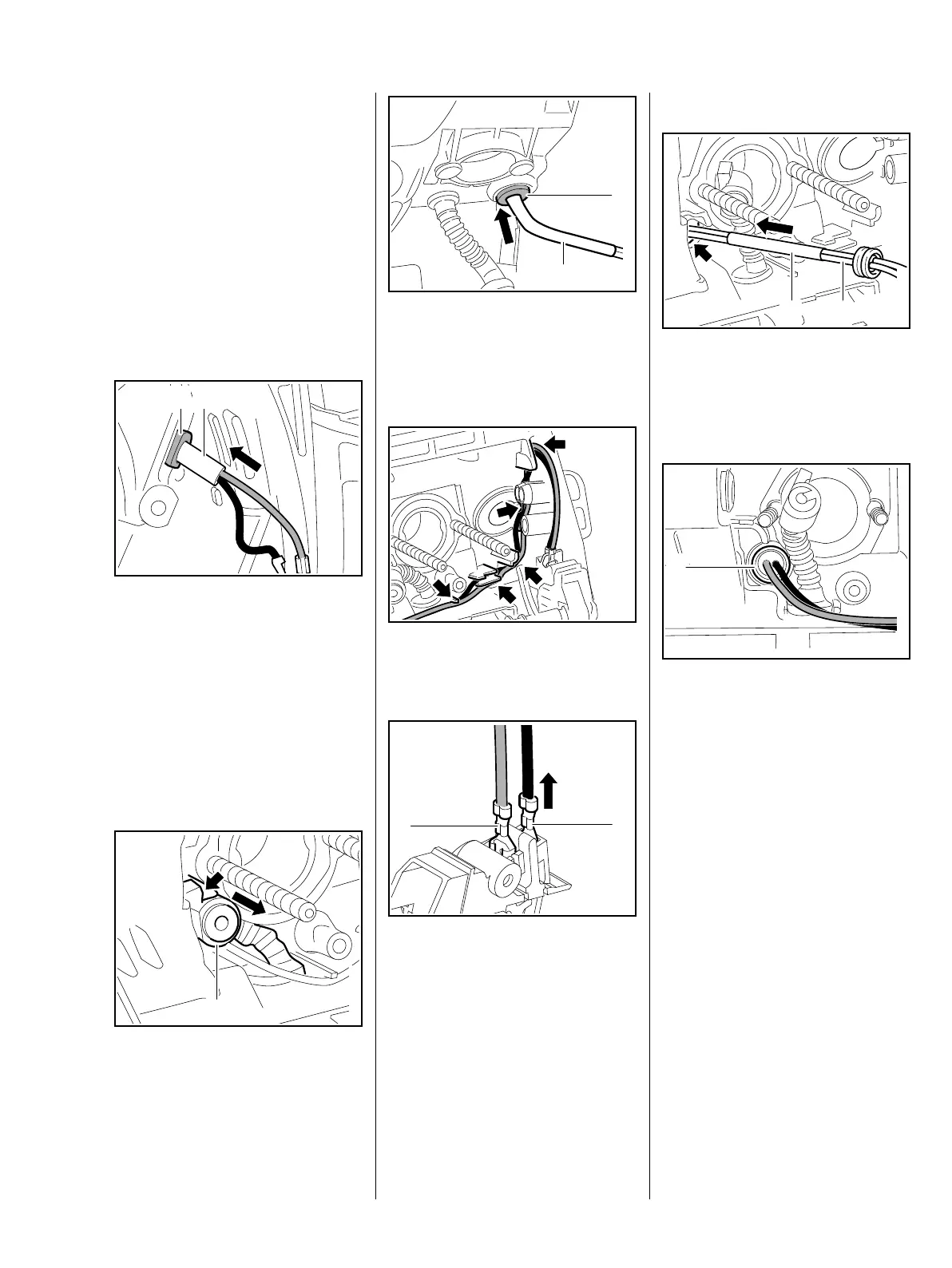

7.6.3 Wiring Harness
Removing and Installing
– Remove the shroud, b 6.4
– Pull the boot off the spark plug.
– Remove the rewind starter,
b 8.2
– Remove the ignition module,
b 7.2
: Press grommet (1) grommet in
direction of cylinder and pull
wiring harness (2) out in direction
of cylinder.
: Pull the grommet (1) off the
wiring harness.
– Remove the tank housing,
b 12.9.3
: Pull the fuel suction hose (1) out
of the guide (arrow) and put it to
one side.
3443RA208 TG
1 2
3443RA210 TG
1
: Press grommet (1) out in
direction of carburetor box and
pull wiring harness (2) out in
direction of carburetor box.
: Pull the wires out of the guides
(arrows).
: Disconnect the short circuit
wire (1) and ground wire (2).
– Inspect the contact springs and
switch housing, replace if
necessary, b 7.6.5
– Check the wiring harness and
replace if necessary.
3443RA211 TG
1
2
3443RA212 TG3443RA214 TG
1
2
Installing
: Push the wiring harness (1),
protective tube (2) first, through
the bore (arrow) in the direction of
the cylinder.
– Use STIHL press fluid to make
installation easier, b 15
: Fit the grommet (1) into the bore
so that the wires are positioned
horizontally next to one another.
3443RA216 TG
12
3443RA217 TG
1
