59MS 461, MS 461-R

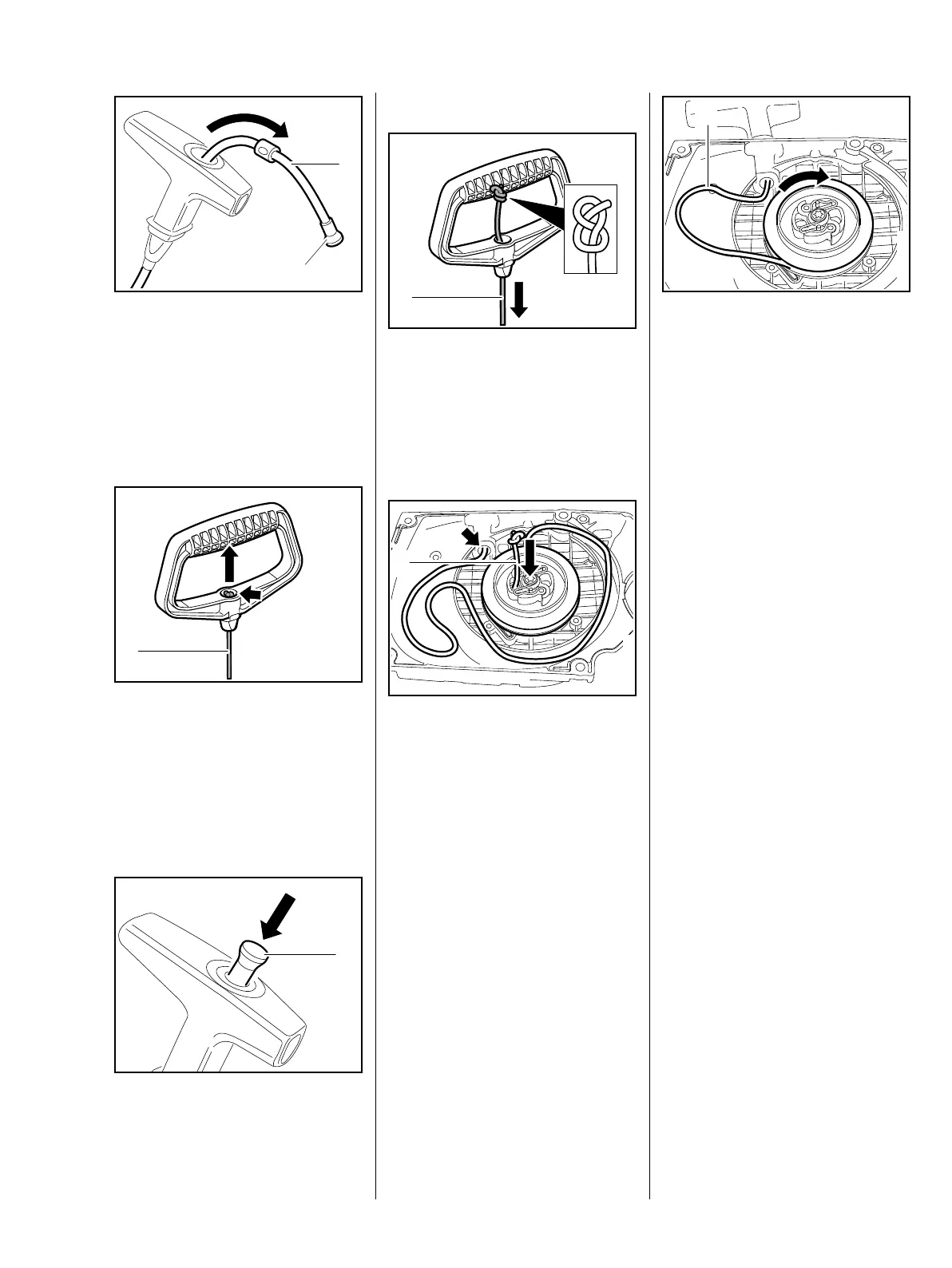

: Pry out the nipple (1) and pull
starter rope (2) out of the grip.
– Check the starter rope and
replace if necessary.
Rescue saw only
: Pull the starter rope (1) out of the
grip (arrow).
– Check the starter rope and
replace if necessary.
Installing
: Thread the new starter rope
through the top of the starter grip,
press the nipple (1) into the grip
until it snaps into place.
1
2
3443RA465 TG
3443RA459 TG
1
219RA419 TG
1
Rescue saw only
: Tie the special knot shown in the
end of the new rope and thread
the rope (1) through the starter
grip.
All versions
: Thread the starter rope (1)
through the opening (arrow) in
the rope rotor.
: Tie a simple overhand knot in the
end of the new rope (1) and pull it
back into the rotor.
– Tension the rewind spring, b 8.6
– Reassemble all other parts in the
reverse sequence.
8.6 Tensioning the Rewind
Spring
– Remove the rewind starter,
b 8.2
3443RA460 TG
1
3443RA169 TG
1
: Pull out a short length of starter
rope (1).
: Make a loop in the unwound
starter rope and use it to turn the
rope rotor six full revolutions in
the direction of the arrow.
Hold the rope rotor steady since it
will otherwise spin back and may
damage the rewind spring.
: Pull out the twisted rope (1) in
direction of starter grip and
straighten it out.
: Keep the rope (1) under tension
and slowly release the rope rotor.
The starter grip must sit firmly in the
rope guide bushing.
If it droops to one side: Tension the
rewind spring by one additional turn.
When the starter rope is fully
extended it must still be possible to
rotate the rope rotor another half
turn. If this is not the case, spring
tension must be reduced
– it might otherwise break.
To reduce spring tension:
Hold the rope rotor steady and take
one turn off the rope.
– Install the rewind starter, b 8.2
3443RA170 TG
1
