32 MS 461, MS 461-R

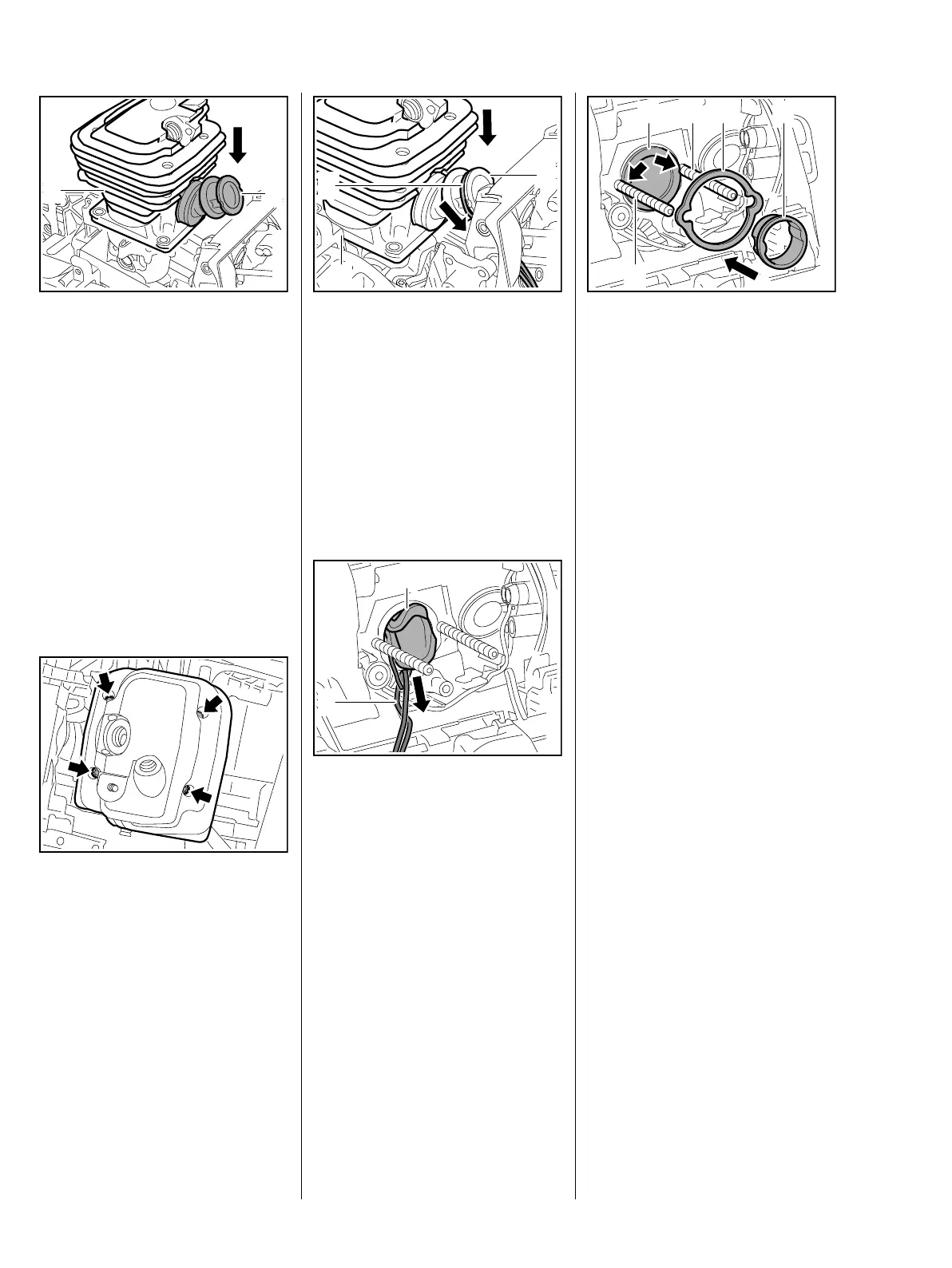

: Position the cylinder (1) so that
the manifold (2) points towards
the tank housing.
While sliding the cylinder over the
piston, hold the clamping strap
tightly around the piston so that the
rings do not project
– it might otherwise break.
: Slide the cylinder over the piston,
the clamping strap moves
downwards at the same time.
– Remove the clamping strap and
piston support.
: Insert the screws (arrows) to hold
the cylinder and gasket in
position.
: Tighten down the screws through
the holes (arrows) in the cylinder
in a crosswise pattern.
3443RA096 TG
2
1
3443RA099 TG
: Wind a piece of string (1) around
the manifold flange and pass the
ends of the string through the
opening in the tank housing.
Make sure the cylinder gasket is
properly seated.
: Push the cylinder (2) into place
and locate the manifold flange (3)
against the tank housing.
– Coat the outside of the manifold
flange with STIHL press fluid,
b 15
– Push tank housing towards
cylinder and hold it in that
position.
: Grip the ends of the string (2) and
pull the manifold flange (1)
through the opening.
– Remove the string.
3443RA098 TG
3
1
2
3443RA100 TG
1
2
: Position the manifold flange (1) –
its flats (arrows) must locate
against the studs (2).
: Fit the washer (3) and push the
sleeve (4) into the manifold
flange (1).
– Reassemble all other parts in the
reverse sequence.
1 2
2
3 4
3443RA101 TG
