Stonex S10 GNSS Receiver – User Manual 11
3.3. Cables
Receivers cables (LM.GK205.ABL P/N 30-350059)
This is a multi-function communication cable: it is used for connecting receiver
and computer used for transferring the static data and updating the firmware.

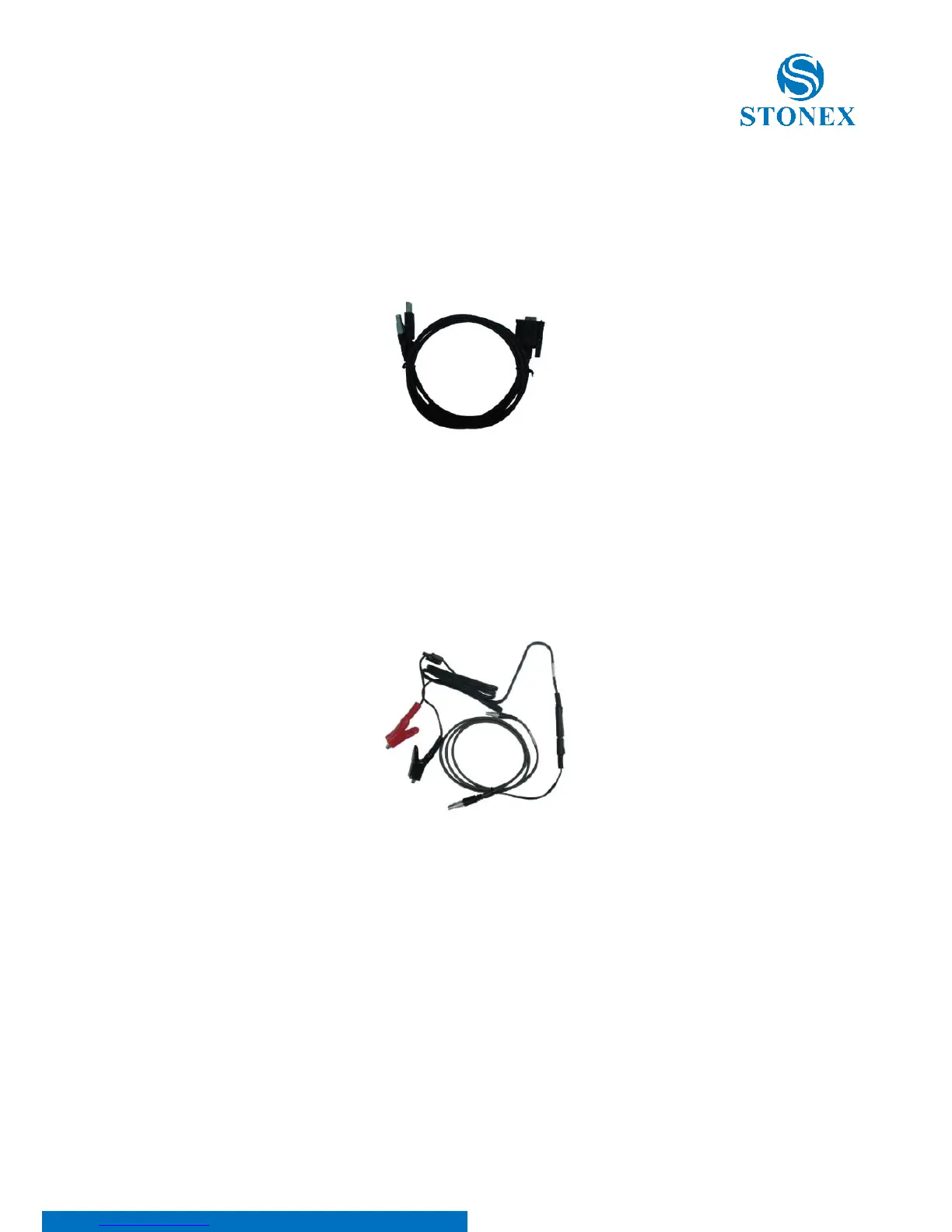

Fig. 3.6 – 7pins-USB-serial port
Auxiliary cables (LM.GK185.ABL+ LM.GK224.AAZ – P/N 30-350072 + 30-350071)
External power supply cables (LM.GK185.ABL+ LM.GK224.AAZ) can be ordered
and used to connect an external battery (red and black clips) to the receiver
(small 5-pin LEMO):
Fig. 3.7 - External power supply cables
3.4. Other accessories
The other accessories are: 2.45 m retractable pole, 25 cm supporting pole, two
kind of brackets depending on the controller, tribrach with plummet, tripod
(wood or aluminum, with quick or twist clamps), connector between receiver
and tribrach, and measuring tape, quick release and mini rotary table, used for
the tilt sensor calibration procedures.
