Stonex S10 GNSS Receiver – User Manual 3
2. S10 panel description
STONEX S10 is a light 14 x 14 cm GNSS unit; It is equipped with a high accuracy
triple frequency receiving antenna,
Bluetooth© and Wi-Fi, UHF transceiver
radio modem (option).
The unit is divided into three parts: the
upper cap, the rubber loop and the main
body. The upper cap protects the integrated
GNSS antenna, the rubber loop has the
function of softening possible shocks or
falls. In the front of the main body.
On the front panel there are 2 keys and 7
indicators, on the back there are the battery
house, SIM slot, SD slot and reset key.

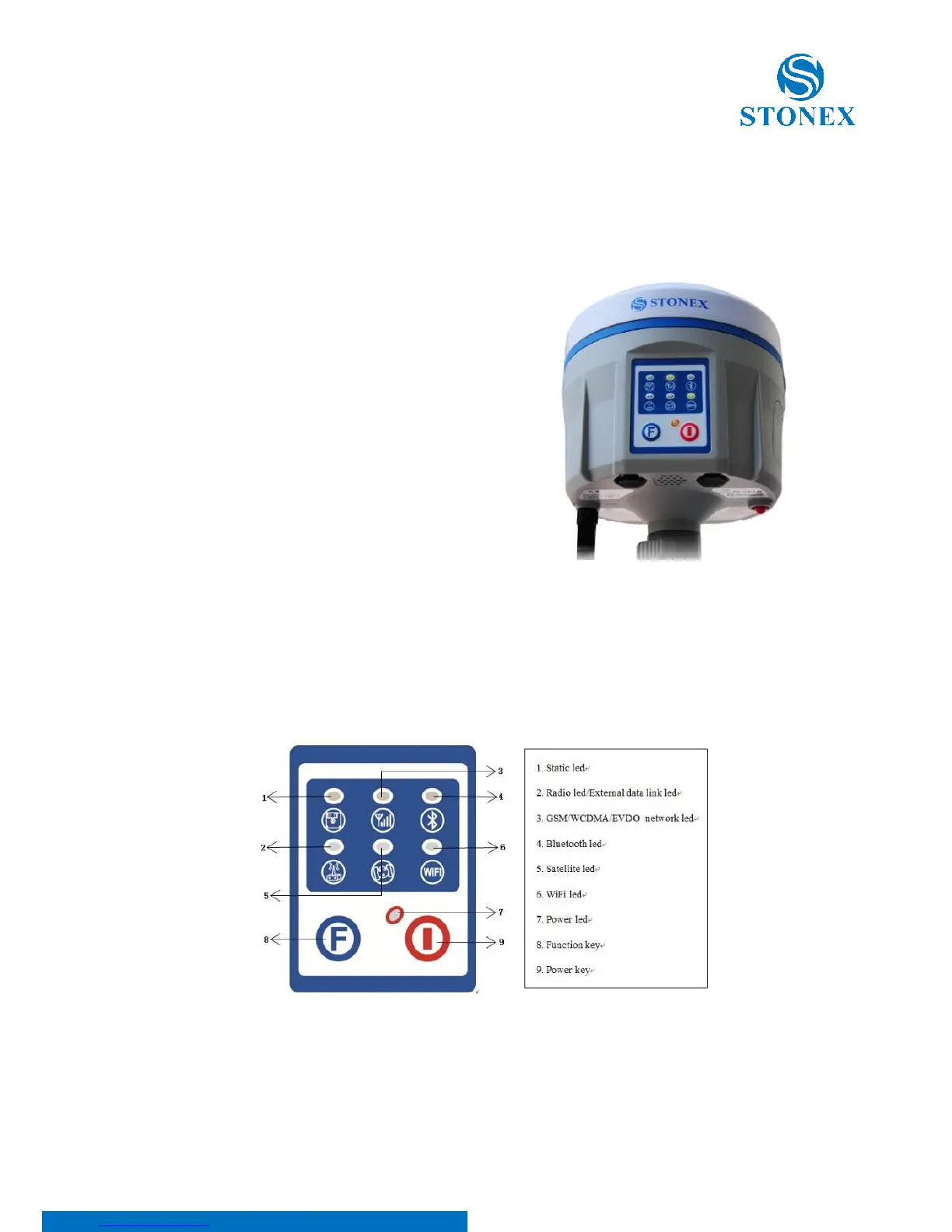

2.1. S10 smart panel
From the smart panel is possible to check at any time the status of the S10.
The following figure shows it and the meaning of the leds.
